Home > Cable Ties, Wraps and Clips > Grommets > Rubber Grommets

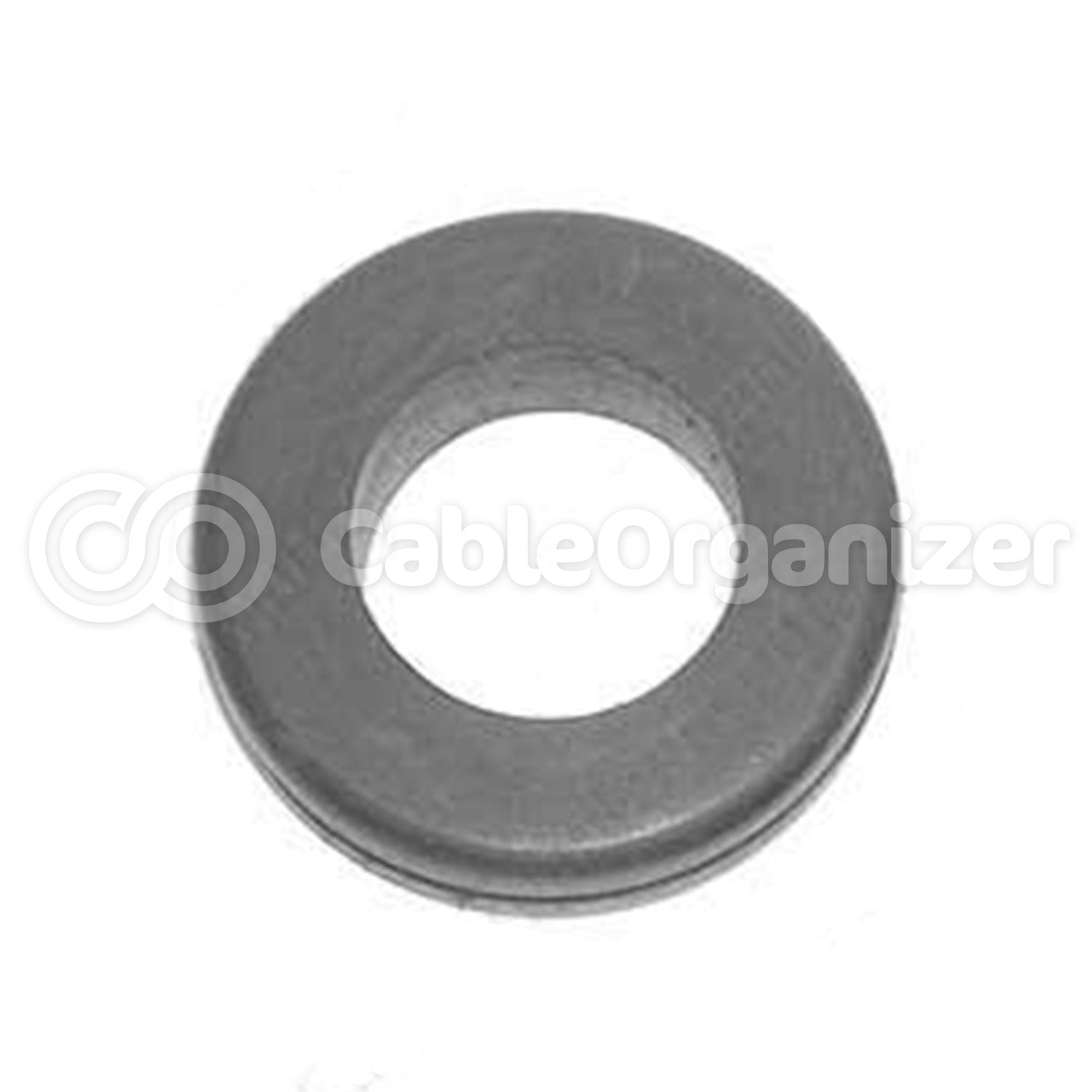

Rubber Grommets
Dozens of Sizing Options - Even More Applications
Rubber Grommets and Grommet Kits
This requires one or more of the following: javascript enabled, Flash Video Player, and Quicktime or Windows Media Player |
What's special about these rubber grommets?
When running your cables through small openings or around sharp curves you will encounter rough metal or wooden edges that may damage or break your cables. These rubber grommets provide an abrasion resistant cushion around these small openings and sharp edges to protect your wiring. They are available in numerous sizes to fit just about any application. |
- Works as well as natural rubber
- Ideal for use in manufacturing, machinery, and automotive applications
- Protects cables from sharp edges or corners
- Abrasion and tear resistant
- Withstands temperatures up to 180°F (82°C)
| Base Polymer: | Styrene Butadiene |
|---|---|
| Specific Gravity: | 0.94 |
| Durometer- Hardness range: | 40-80 |
| Maximum Tensile Strength - psi | 2500 |
| Elongation % (max) | 500 |
| Resilience | Medium |
| Impact Strength | Excellent |
| Abrasion Resistance | Excellent |
| Tear Resistance | Fair |
| Maximum Service Temp | 180° F |
| Minimum Service Temp | -60° F |
| Oil Resistance | Poor |
| Fuel Resistance | Poor |
| Weather Aging | Fair |
| Oxidation | Fair |
| Heat Aging | Good |
| Water Swell Resistance | Excellent |
| Flame Resistance | Poor |
| Adhesion to Metal | Excellent |
| Electrical Resistivity | Excellent |
Typical Applications: Same as natural rubber
Find the Grommet YOU want at a click of the mouse!
To view grommet dimensions using the metric system, click here
| PART # | Military Specification | (A) Inside Diameter |
(B) Groove Width |
(C) Groove Diameter |
(D) Outside Diameter |
(E) Overall Thickness |
PRICE/ UNIT | BULK QUANTITY |
PRICE / BULK Great Savings |
||
| OMAR-1272 | NA | 7/64" | 3/64" | 1/2" | 11 /16" | 9/32" | 400 | $214.00 |
|||
| OMAR-2425 | NA | 1/8" | 3/32" | 3/8" | 1/2" | 5/16" | 900 | $180.00 |
|||
| OMAR-1070 | NA | 1/8" | 1/32" | 3/16" | 1/4" | 3/32" | 500 | $198.00 |
|||
| OMAR-0562 | NA | 1/8" | 1/16" | 7/16" | 5/8" | 3/16" | 400 | $212.00 |
|||
| OMAR-0054G | MS35489-1 | 1/8" | 1/16" | 1/4" | 11/32" | 3/16" | 900 | $182.00 |
|||
| OMAR-1259 | NA | 5/32" | 1/16" | 1/4" | 3/8" | 3/16" | 1200 | $174.00 |
|||
| OMAR-0374 | NA | 5/32" | 1/16" | 1/4" | 7/16" | 3/8" | 700 | $176.75 |
|||
| OMAR-1734 | NA | 3/16" | 3/32" | 9/32" | 7/16" | 7/32" | 600 | $180.00 |
|||
| OMAR-2537 | NA | 3/16" | 3/32" | 11/32" | 5/8" | 3/8" | 300 | $179.25 |
|||
| OMAR-2752 | MS35489-62 | 3/16" | 3/16" | 5/16" | 7/16" | 5/16" | 800 | $188.00 |
|||
| OMAR-0704 | NA | 3/16" | 3/16" | 3/8" | 5/8" | 3/8" | 400 | $184.00 |
|||
| OMAR-2852 | MS35489-33 | 3/16" | 1/8" | 5/16" | 7/16" | 1/4" | 800 | $180.00 |
|||
| OMAR-2552 | MS35489-91 | 3/16" | 1/4" | 5/16" | 7/16" | 3/8" | 1100 | $178.00 |
|||
| OMAR-1390 | NA | 3/16" | 1/32" | 5/16" | 7/16" | 7/32" | 900 | $180.00 |
|||
| OMAR-0382 | NA | 3/16" | 1/16" | 9/32" | 7/16" | 7/32" | 500 | $186.25 |
|||
| OMAR-2279 | MS35489-134 | 3/16" | 1/16" | 9/16" | 3/4" | 3/16" | 300 | $173.25 |
|||
| OMAR-2286 | MS35489-4 | 3/16" | 1/16" | 5/16" | 7/16" | 3/16" | 1100 | $176.00 |
|||
| OMAR-1453 | NA | 3/16" | 1/16" | 5/16" | 1/2" | 1/4" | 700 | $187.25 |
|||
| OMAR-0809 | NA | 3/16" | 1/16" | 5/16" | 5/8" | 1/4" | 400 | $190.00 |
|||
| OMAR-0565 | NA | 13/64" | 1/8" | 13/32" | 9/16" | 3/8" | 400 | $167.00 |
|||
| OMAR-0680 | NA | 1/4" | 3/32" | 7/16" | 5/8" | 3/8" | 400 | $200.00 |
|||
| OMAR-2901 | NA | 1/4" | 3/32" | 3/8" | 1/2" | 1/4" | 1000 | $167.50 |
|||
| OMAR-2335 | NA | 1/4" | 3/16" | 1/2" | 5/8" | 7/16" | 400 | $212.00 |
|||
| OMAR-2854 | MS35489-35 | 1/4" | 1/8" | 7/16" | 5/8" | 1/4" | 700 | $185.50 |
|||
| OMAR-2903 | NA | 1/4" | 1/8" | 3/8" | 1/2" | 9/32" | 900 | $182.25 |
|||
| OMAR-2554 | MS35489-93 | 1/4" | 1/4" | 7/16" | 5/8" | 3/8" | 500 | $182.50 |
|||
| OMAR-0097 | MS35489-6 | 1/4" | 1/16" | 7/16" | 5/8" | 3/16" | 1100 | $176.00 |
|||
| OMAR-5436 | NA | 1/4" | 1/16" | 55/64" | 1 3/64" | 11/16" | 200 | $171.50 |
|||
| OMAR-2902 | NA | 1/4" | 1/16" | 3/8" | 1/2" | 7/32" | 1300 | $172.25 |
|||
| OMAR-2298 | MS35489-8 | 1/4" | 1/16" | 1" | 1 1/4" | 1/4" | 200 | $222.50 |
|||
| OMAR-1411 | NA | 7/32" | 1/16" | 5/16" | 7/16" | 3/16" | 800 | $180.00 |
|||
| OMAR-0190 | NA | 9/32" | 1/4" | 15/32" | 11/16" | 7/16" | 300 | $171.00 |
|||
| OMAR-0763 | NA | 9/32" | 1/16" | 3/8" | 9/16" | 1/4" | 500 | $177.50 |
|||
| OMAR-0316 | NA | 5/16" | 3/8" | 3/8" | 9/16" | 1/2" | 500 | $173.75 |
|||
| OMAR-2538 | NA | 5/16" | 3/32" | 7/16" | 5/8" | 5/16" | 600 | $177.00 |
|||
| OMAR-2214 | NA | 5/16" | 3/32" | 15/32" | 3/4" | 11/32" | 400 | $212.00 |
|||
| OMAR-0705 | NA | 5/16" | 3/16" | 9/16" | 13/16" | 3/8" | 200 | $265.00 |
|||
| OMAR-2756 | MS35489-67 | 5/16" | 3/16" | 9/16" | 13/16" | 7/16" | 300 | $204.75 |
|||
| OMAR-2757 | NA | 5/16" | 3/16" | 3/4" | 1" | 7/16" | 200 | $278.50 |
|||
| OMAR-2856 | MS35489-38 | 5/16" | 1/8" | 9/16" | 13/16" | 3/8" | 400 | $207.00 |
|||
| OMAR-2857 | MS35489-39 | 5/16" | 1/8" | 3/4" | 1" | 3/8" | 300 | $183.00 |
|||
| OMAR-2556 | MS35489-96 | 5/16" | 1/4" | 9/16" | 13/16" | 1/2" | 500 | $178.75 |
|||
| OMAR-2557 | MS35489-97 | 5/16" | 1/4" | 3/4" | 1" | 1/2" | 200 | $265.00 |
|||
| OMAR-2113 | MS35489-9 | 5/16" | 1/16" | 9/16" | 13/16" | 5/16" | 400 | $170.00 |
|||
| OMAR-0263 | NA | 5/16" | 1/16" | 7/16" | 9/16" | 3/16" | 600 | $190.50 |
|||
| OMAR-0505 | NA | 5/16" | 1/16" | 7/16" | 5/8" | 9/32" | 900 | $184.50 |
|||
| OMAR-2280 | MS35489-10 | 5/16" | 1/16" | 3/4" | 1" | 5/16" | 400 | $207.00 |
|||
| OMAR-2596 | NA | 3/8" | 3/8" | 9/16" | 3/4" | 3/4" | 500 | $202.50 |
|||
| OMAR-0896 | NA | 3/8" | 3/16" | 9/16" | 13/16" | 3/8" | 300 | $213.00 |
|||
| OMAR-2758 | MS35489-69 | 3/8" | 3/16" | 5/8" | 7/8" | 7/16" | 400 | $212.00 |
|||
| OMAR-2858 | MS35489-40 | 3/8" | 1/8" | 5/8" | 7/8" | 3/8" | 300 | $159.00 |
|||
| OMAR-0546 | NA | 3/8" | 1/8" | 17/32" | 3/4" | 3/8" | 400 | $170.00 |
|||
| OMAR-0545 | NA | 3/8" | 1/8" | 1/2" | 5/8" | 13/32" | 900 | $182.25 |
|||
| OMAR-2558 | NA | 3/8" | 1/4" | 5/8" | 7/8" | 1/2" | 400 | $212.00 |
|||
| OMAR-0828 | NA | 3/8" | 1/4" | 1/2" | 3/4" | 1/2" | 400 | $186.00 |
|||
| OMAR-2281 | MS35489-11 | 3/8" | 1/16" | 5/8" | 7/8" | 5/16" | 800 | $186.00 |
|||
| OMAR-1724 | NA | 3/8" | 1/16" | 1/2" | 11 /16" | 9/32" | 400 | $170.00 |
|||
| OMAR-0230 | NA | 3/8" | 1/16" | 1/2" | 5/8" | 1/4" | 1700 | $170.00 |
|||
| OMAR-2299 | MS35489-12 | 3/8" | 1/16" | 1" | 1 1/4" | 1/4" | 500 | $185.00 |
|||
| OMAR-0560 | NA | 7/16" | 3/16" | 9/16" | 11/16" | 3/8" | 800 | $176.00 |
|||
| OMAR-2760 | NA | 7/16" | 3/16" | 11/16" | 15/16" | 7/16" | 200 | $213.50 |
|||
| OMAR-2860 | MS35489-42 | 7/16" | 1/8" | 11/16" | 15/16" | 3/8" | 500 | $198.75 |
|||
| OMAR-1787 | NA | 7/16" | 1/16" | 9/16" | 3/4" | 1/4" | 700 | $168.00 |
|||
| OMAR-2282 | MS35489-13 | 7/16" | 1/16" | 11/16" | 15/16" | 5/16" | 400 | $205.00 |
|||
| OMAR-0807 | NA | 1/2" | 3/8" | 3/4" | 1" | 5/8" | 300 | $198.75 |
|||
| OMAR-0452 | NA | 1/2" | 3/32" | 3/4" | 7/8" | 11/32" | 500 | $178.75 |
|||
| OMAR-1862 | NA | 1/2" | 3/32" | 3/4" | 31/32" | 9/32" | 500 | $178.75 |
|||
| OMAR-2341 | NA | 1/2" | 3/32" | 25/32" | 1" | 11/32" | 100 | $194.25 |
|||
| OMAR-2761 | NA | 1/2" | 3/16" | 13/16" | 1 1/16" | 7/16" | 400 | $186.00 |
|||
| OMAR-0653 | NA | 1/2" | 1/8" | 3/4" | 1" | 1/2" | 400 | $191.00 |
|||
| OMAR-2861 | MS35489-43 | 1/2" | 1/8" | 13/16" | 1 1/16" | 3/8" | 300 | $219.00 |
|||
| OMAR-2561 | MS35489-101 | 1/2" | 1/4" | 13/16" | 1 1/16" | 1/2" | 300 | $213.00 |
|||
| OMAR-2283 | MS35489-14 | 1/2" | 1/16" | 13/16" | 1 1/16" | 5/16" | 700 | $185.50 |
|||
| OMAR-2426 | NA | 1/2" | 1/16" | 1" | 1 1/4" | 1/4" | 400 | $170.00 |
|||
| OMAR-2284 | MS35489-15 | 1/2" | 1/16" | 1 1/4" | 1 1/2" | 1/4" | 500 | $112.75 |
|||
| OMAR-2513 | NA | 9/16" | 3/8" | 7/8" | 1 1/16" | 5/8" | 200 | $318.00 |
|||
| OMAR-2512 | NA | 9/16" | 3/16" | 7/8" | 1 1/16" | 7/16" | 300 | $214.50 |
|||
| OMAR-2763 | MS35489-74 | 9/16" | 3/16" | 13/16" | 1 1/16" | 7/16" | 300 | $338.25 |
|||
| OMAR-2563 | NA | 9/16" | 1/4" | 13/16" | 1 1/16" | 1/2" | 500 | $172.50 |
|||
| OMAR-1720 | NA | 9/16" | 1/16" | 3/4" | 7/8" | 15/64" | 300 | $230.25 |
|||
| OMAR-2295 | MS35489-16 | 9/16" | 1/16" | 13/16" | 1 1/16" | 5/16" | 600 | $175.50 |
|||
| OMAR-2406 | NA | 9/16" | 1" | 13/16" | 1 1/8" | 1 1/4" | -->Not Available | 1000 | $1,650.00 |
||
| OMAR-0559 | NA | 5/8" | 5/8" | 7/8" | 1 1/16" | 7/8" | 100 | $47.75 |
|||
| OMAR-0494 | NA | 5/8" | 5/16" | 29/32" | 1 1/8" | 5/8" | 200 | $167.00 |
|||
| OMAR-2764 | MS35489-75 | 5/8" | 3/16" | 7/8" | 1 1/8" | 7/16" | 300 | $167.25 |
|||
| OMAR-2864 | MS35489-46 | 5/8" | 1/8" | 7/8" | 1 1/8" | 3/8" | 600 | $193.50 |
|||
| OMAR-2564 | MS35489-104 | 5/8" | 1/4" | 7/8" | 1 1/8" | 1/2" | 300 | $222.75 |
|||
| OMAR-2285 | MS35489-17 | 5/8" | 1/16" | 7/8" | 1 1/8" | 5/16" | 700 | $185.50 |
|||
| OMAR-2296 | MS35489-18 | 5/8" | 1/16" | 1 1/4" | 1 1/2" | 1/4" | 400 | $183.00 |
|||
| OMAR-1418 | NA | 41/64" | 1/16" | 31/32" | 1 3/16" | 5/16" | 200 | $185.50 |
|||
| OMAR-2766 | NA | 11/16" | 3/16" | 1" | 1 5/16" | 1/2" | 400 | $183.00 |
|||
| OMAR-2566 | MS35489-106 | 11/16" | 1/4" | 1" | 1 5/16" | 9/16" | 300 | $190.50 |
|||
| OMAR-2273 | NA | 11/16" | 1/16" | 1" | 1 5/16" | 3/8" | 300 | $203.25 |
|||
| OMAR-2866 | MS35489-48 | 11 /16" | 1/8" | 1" | 1 5/16" | 7/16" | 300 | $207.00 |
|||
| OMAR-2767 | NA | 3/4" | 3/16" | 1 1/16" | 1 3/8" | 1/2" | 300 | $198.75 |
|||
| OMAR-2867 | MS35489-49 | 3/4" | 1/8" | 1 1/16" | 13/8" | 7/16" | 300 | $189.00 |
|||
| OMAR-2568 | NA | 3/4" | 1/4" | 1 1/4" | 1 5/8" | 7/16" | 200 | $252.00 |
|||
| OMAR-2567 | MS35489-107 | 3/4" | 1/4" | 1 1/16" | 1 3/8" | 9/16" | 200 | $225.50 |
|||
| OMAR-2196 | NA | 3/4" | 1/16" | 15/16" | 1 1/8" | 1/4" | 400 | $212.00 |
|||
| OMAR-2275 | NA | 3/4" | 1/16" | 1 7/16" | 1 13/16" | 3/8" | 200 | $222.50 |
|||
| OMAR-2274 | MS35489-135 | 3/4" | 1/16" | 1 1/4" | 15/8" | 1/4" | 300 | $226.50 |
|||
| OMAR-0804 | MS35489-20 | 3/4" | 1/16" | 1 1/16" | 1 3/8" | 3/8" | 500 | $198.75 |
|||
| OMAR-1626 | NA | 7/8" | 5/64" | 13/16" | 13/8" | 15/32" | 300 | $198.75 |
|||
| OMAR-2770 | NA | 7/8" | 3/16" | 1 1/4" | 1 5/8" | 9/16" | 100 | $176.75 |
|||
| OMAR-2870 | MS35489-51 | 7/8" | 1/8" | 1 1/4" | 1-5/8" | 1/2" | 200 | $291.50 |
|||
| OMAR-2570 | MS35489-109 | 7/8" | 1/4" | 1 1/4" | 1 5/8" | 5/8" | 200 | $278.50 |
|||
| OMAR-2300 | NA | 7/8" | 1/16" | 1 5/8" | 2" | 7/16" | 100 | $265.00 |
|||
| OMAR-2276 | MS35489-22 | 7/8" | 1/16" | 1 1/4" | 1 5/8" | 7/16" | 300 | $173.25 |
|||
| OMAR-2772 | NA | 1" | 3/16" | 1 3/8" | 1 3/4" | 9/16" | 200 | $233.00 |
|||
| OMAR-2872 | MS35489-52 | 1" | 1/8" | 1 3/8" | 1 3/4" | 1/2" | 200 | $206.50 |
|||
| OMAR-2572 | MS35489-110 | 1" | 1/4" | 1 3/8" | 1 3/4" | 5/8" | 200 | $212.00 |
|||
| OMAR-2035 | NA | 1" | 1/4" | 1 1/4" | 1 1/2" | 1/2" | 300 | $238.50 |
|||
| OMAR-2277 | MS35489-23 | 1" | 1/16" | 1 3/8" | 1 3/4" | 7/16" | 200 | $185.50 |
|||
| OMAR-2092 | NA | 1 1/8" | 1/16" | 1 1/2" | 1 7/8" | 3/8" | 200 | $185.50 |
|||
| OMAR-2574 | NA | 1 1/4" | 1/4" | 2 3/8" | 2 3/4" | 5/8" | 100 | $198.75 |
|||
| OMAR-2802 | NA | 1 5/16" | 1/8" | 1 5/8" | 2" | 7/16" | 200 | $238.50 |
|||
| OMAR-2803 | NA | 1 5/16" | 1/16" | 1 5/8" | 2" | 3/8" | 200 | $217.50 |
|||
| OMAR-2775 | NA | 1 1/2" | 3/16" | 1 3/4" | 2 1/8" | 9/16" | 200 | $305.00 |
|||
| OMAR-2875 | MS35489-56 | 1 1/2" | 1/8" | 1 3/4" | 2 1/8" | 1/2" | 100 | $165.75 |
|||
| OMAR-2034 | NA | 1 1/2" | 1/4" | 1 3/4" | 2" | 1/2" | 200 | $305.00 |
|||
| OMAR-2575 | MS35489-114 | 1 1/2" | 1/4" | 1 3/4" | 2 1/8" | 5/8" | 100 | $182.50 |
|||
| OMAR-2278 | MS35489-27 | 1 1/2" | 1/16" | 1 3/4" | 2 1/8" | 7/16" | 200 | $219.00 |
|||
| OMAR-2804 | NA | 2 1/8" | 1/8" | 2 1/2" | 2 7/8" | 1/2" | 300 | $214.50 |
|||
| OMAR-2805 | NA | 2 1/8" | 1/16" | 2 1/2" | 2 7/8" | 7/16" | 100 | $93.00 |
|||
| OMAR-5615-011 | 3" | 3/16" | 3 1/2" | 4" | 5/8" | - | - | ||||
