• Shrinkflex® Shielded 2:1 Heat Shrink Tubing
1 1

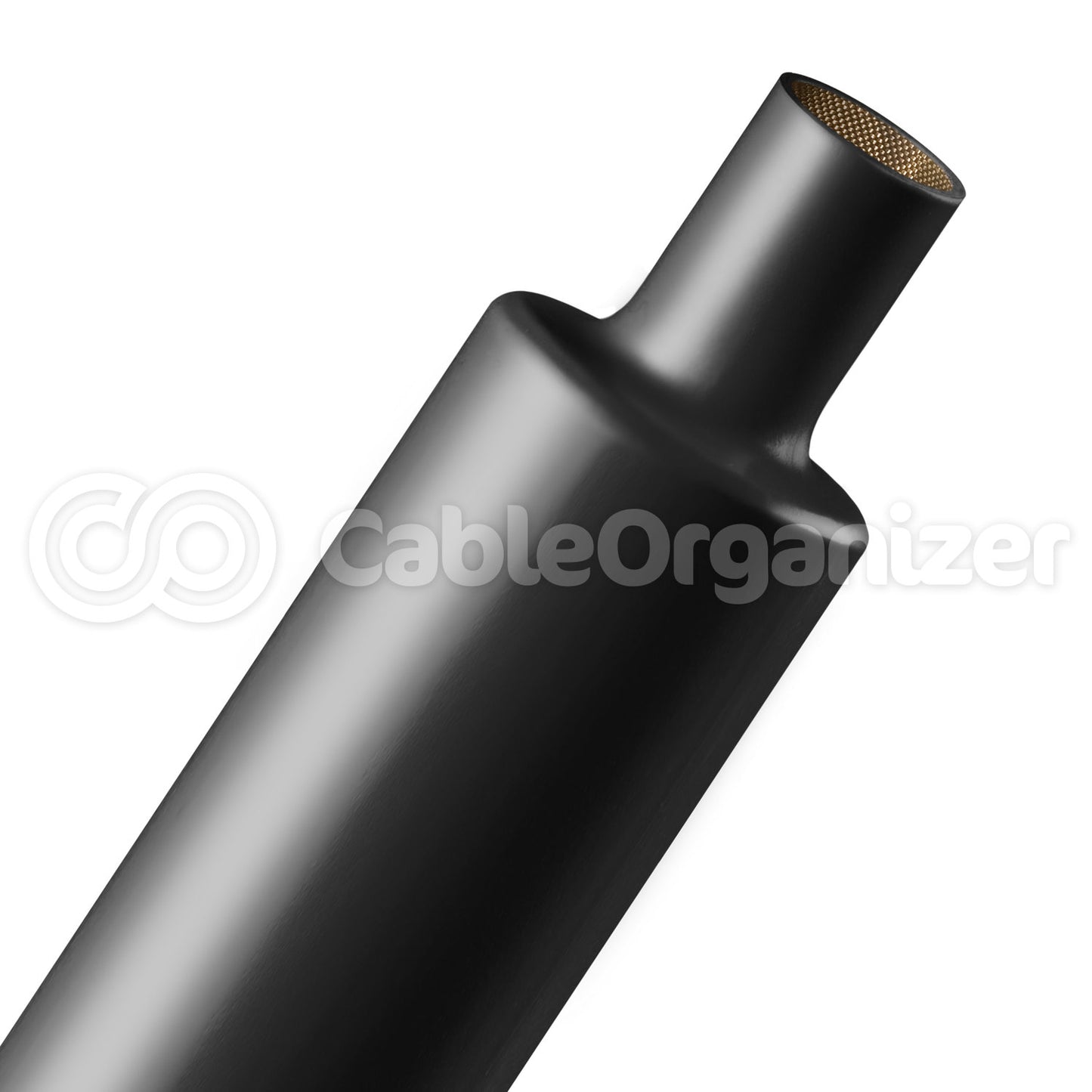

Shrinkflex® Shielded 2:1 Heat Shrink Tubing

Shrinkflex® Shielded 2:1 Heat Shrink Tubing

Protects Cables and Wires from EMI Activit

Electromagnetic interference can have a negative to severely crippling effect on electronic equipment and how it performs. Shrinkflex Dual-Wall Shielded Heat Shrink Tubing offers an excellent solution for protecting delicate data cables and exposed connector ends from harmful EMI activity. This 2 to 1 heat shrink tubing is military rated for use in sensitive operations, while featuring abrasion, chemical and fluid resistance properties ideal for mechanical applications.

  • RoHS Compliant
  • UL Recognized Component Mark
$46.40
$46.40 $46.40
Sale Sold out
Black

Part Number: H2C0.19BK-EA


Name: 2:1 Dual Wall Conductive Shrinkflex® Heatshrink Tubing - 3/16" - 4ft Cuts - Black

$46.40
$46.40 $46.40
Sale Sold out
  • Combines polyolefin heat shrink tubing with conductive cloth weave to provide high-frequency EMI shielding properties for sensitive cables and wiring.
  • Extremely durable, dual-wall construction provides excellent abrasion and chemical resistance for use in mechanical applications.
  • Meets MIL-DTL-23053/5 specification to ensure that the material performs with excellence in military applications that require heat shrink tubing and electromagnetic interference protection.

Difference Between Single Wall & Dual Wall Heat Shrink Tubing

Single Wall Heat Shrink Tubing is the most used form of heatshrink tubing due to its flexibility, wide range of sizes, and variety of materials. Single Wall tubing is great for strain relief, color coding, insulation, and basic wire protection.

Dual Wall Heat Shrink Tubing is used when your project needs an extra layer of protection from the elements or abrasion. Dual Wall Adhesive Heat Shrink provides an extra level of moisture protection. Dual Wall Shielding Heat Shrink provides an extra layer of conductive cloth that provides high frequency EMI shielding properties.

  • EMI properties are excellent for terminating conductive braided sleevings, electrical connectors, RJ-45 keystones, and other components that require shielding.
  • Flexible material conforms to the shape of the cable or wires, while helping to maintain a proper bend radius.
  • Outer layer is made from flame retardant polyolefin material to provide excellent protection in punishing environments.
  • Shrinks easily with a heat gun to deliver professional-quality terminations.
  • Continuous operating temperature of -67°F to 275°F for use in grueling conditions.
  • 2:1 shrink ratio provides easy installation over connectors
  • Cuts cleanly and easily with just scissors, saving on labor and installation.
  • RoHS compliant
H2C 2 to 1 Shielded Heatshrink

Find Your Shrinkflex® Shielded 2:1 Heat Shrink Tubing

Loading variants… 0 loaded

# Variant ID Image Nominal Diameter Color Quantity Part # Shrink Diameter Range Price (Each) Quantity
