Shrinkflex® 3:1 Shielded Heatshrink

Protects Cables and Wires from EMI Activity

Shrinkflex® 3:1 Shield heat shrink tubing is a unique dual wall combination of a polyolefin outer layer and an inner layer of conductive cloth with high frequency EMI shielding properties. Shrinkflex Shield is flame retardant abrasion and chemical resistant, and is an ideal solution for protecting wire and cable bundles while providing shielding from external interference.

Shrinkflex® Shield Dual Wall Conductive heatshrink tubing offers significant weight savings over conventional metal braid shield while still providing high levels of protection. The inner conductive liner is pressed into tight contact and remains flexible, uniform and intact even under mechanical stresses and vibration.

$250.25

~~$250.25~~ $250.25

Sale Sold out

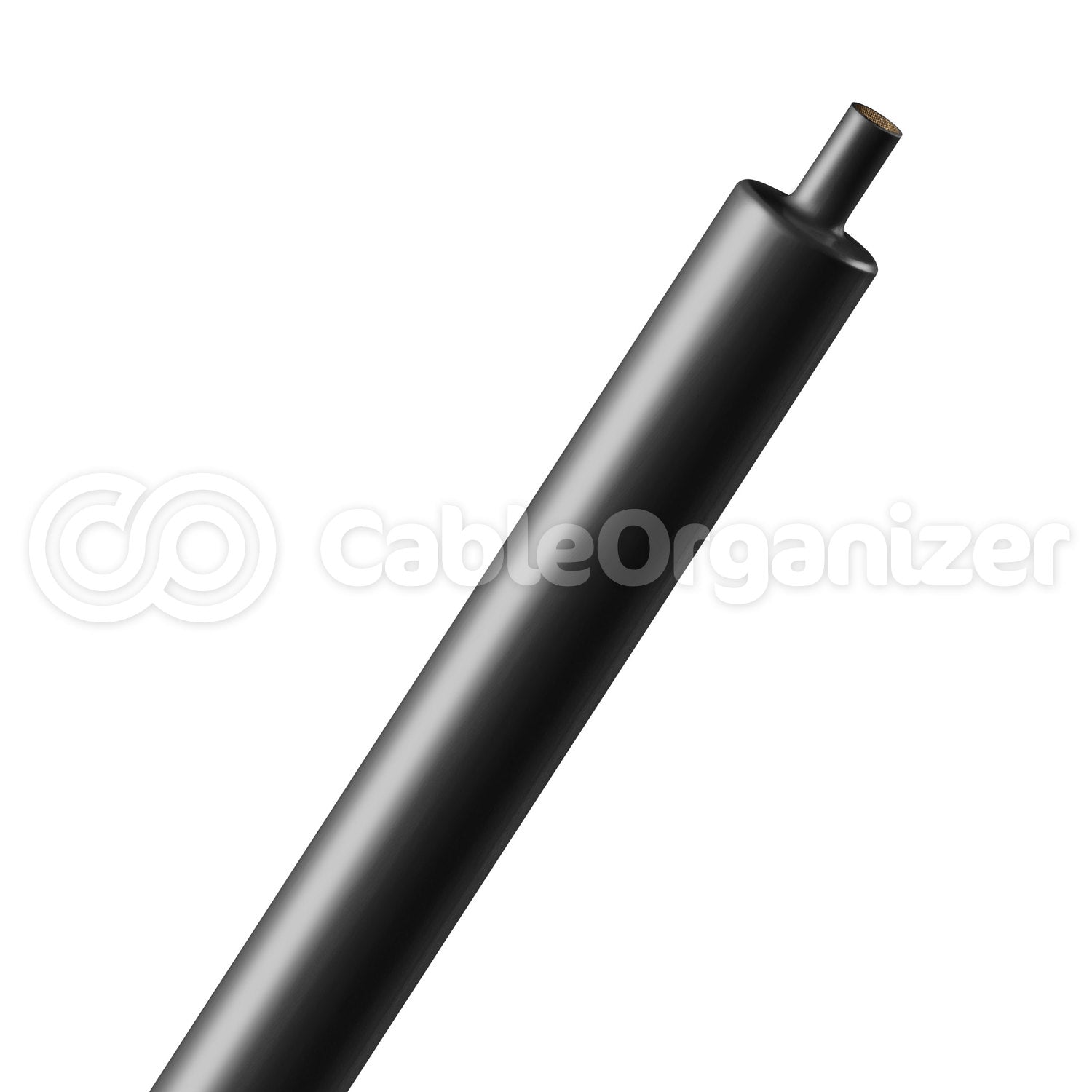

Part Number: H3C0.38BK-5

Name: 3:1 Dual Wall Conductive Shrinkflex® Heatshrink Tubing - 3/8" - 4ft Cuts - Black - 5 piece pack

$250.25

~~$250.25~~ $250.25

Sale Sold out

Quantity

Combines polyolefin heat shrink tubing with conductive cloth weave to provide high-frequency EMI shielding properties for sensitive cables and wiring.
Extremely durable, dual-wall construction provides excellent abrasion and chemical resistance for use in mechanical applications.
Meets MIL-DTL-23053/5 specification to ensure that the material performs with excellence in military applications that require heat shrink tubing and electromagnetic interference protection.

Difference Between Single Wall & Dual Wall Heat Shrink Tubing

Single Wall Heat Shrink Tubing is the most used form of heatshrink tubing due to its flexibility, wide range of sizes, and variety of materials. Single Wall tubing is great for strain relief, color coding, insulation, and basic wire protection.

Dual Wall Heat Shrink Tubing is used when your project needs an extra layer of protection from the elements or abrasion. Dual Wall Adhesive Heat Shrink provides an extra level of moisture protection. Dual Wall Shielding Heat Shrink provides an extra layer of conductive cloth that provides high frequency EMI shielding properties.
