Shrinkflex 2:1 Adhesive Lined Heatshrink Tubing - 4ft Sticks

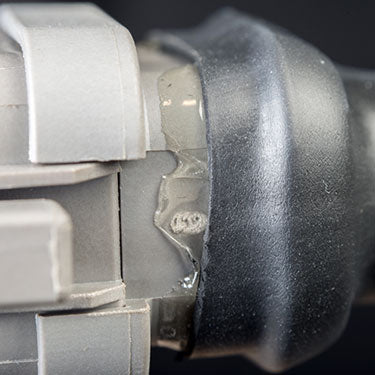

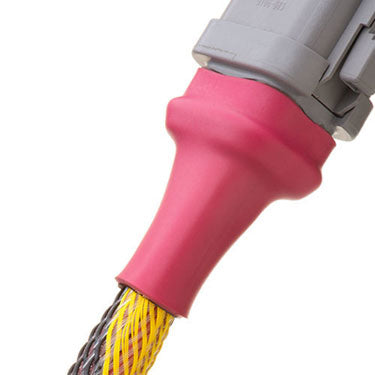

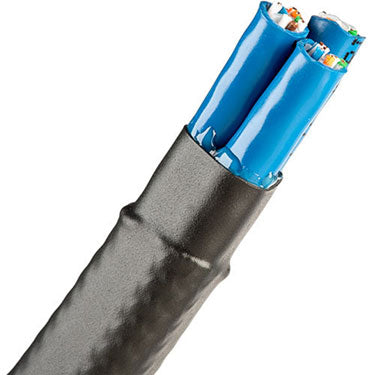

Dual wall adhesive lined heat shrink tubing is ideal for producing strong, weathertight seals on any heat shrink installation. During the application of heat from a heat gun or other heat source, the inner adhesive wall melts and flows, creating an adhesion layer to ensure a snug fit to your harness and/or connector. This glue lined heatshrink tubing is available in 4' strips, in diameters up to 1 1/2".

$19.25

~~$19.25~~ $19.25

Sale Sold out

Part Number: H2A0.13BK-5

Name: Shrinkflex® 2:1 Dual Wall Adhesive Heatshrink Tubing - 1/8"- 4ft Stick - Black - 5 piece pack

$19.25

~~$19.25~~ $19.25

Sale Sold out

Quantity

SHRINK TEMP: 194°F (90°C)

RoHS Compliant
Weather Tight Seal
Resists Common Chemicals
Flexible Elastomar Polyolefin Tubing

What Does Shrink Ratio (2:1, 3:1, Etc..) Mean?

The shrink ratio is the approximate maximum amount that heatshrink tubing will shrink relative to the unshrunk diameter. For example, a piece of 3/4" heatshrink tubing with a 3:1 shrink ratio will shrink down to a maximum diameter of approximately 1/4" when fully shrunk. All heatshrink tubing on our site is specified in it's UNSHRUNK diameter, so consider the shrink ratio and the unshrunk diameter when ordering heatshrink tubing. Heatshrink tubing with a larger shrink ratio will be more forgiving when fitting the tubing over plugs or connectors, but will have a bit thicker wall thickness and slightly less flexibility when shrunk then a lower ratio product.
