Middle Atlantic SBX Series Wall Mount Cabinets

Middle Atlantic SBX Series Wall Mount Cabinets

Very easy to install: 1) pre-load the rack. 2) place on secured backplane

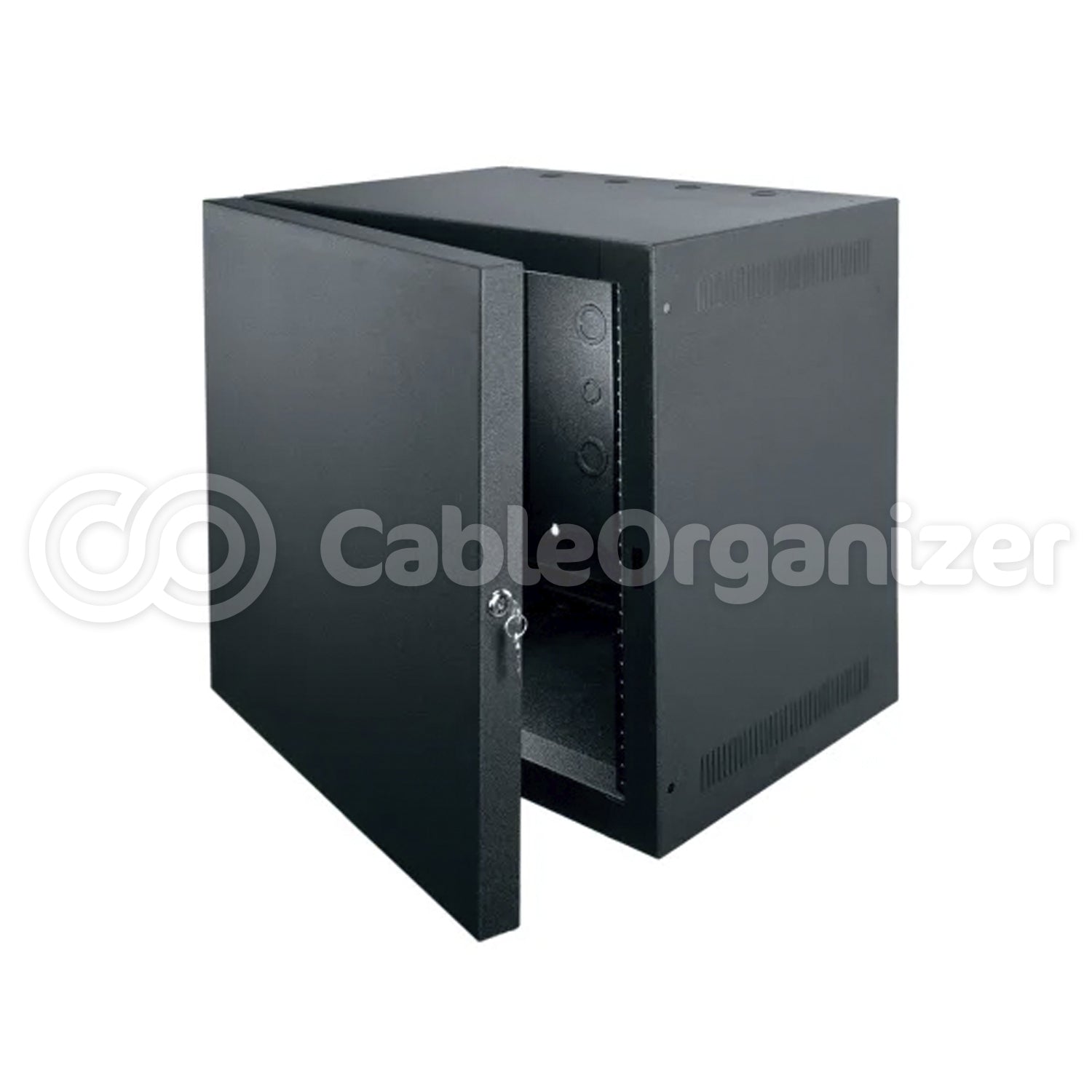

These Middle Atlantic SBX Series Wall Mount Cabinets are constructed from welded 18-gauge steel and are available in 7U or 10U sizes.  It features a locking front door with a 180-degree swing for easy access, 14.75 inches of usable cabinet depth, and 1.5 inches of rail-to-door clearance for improved compatibility with mounted equipment. The 11-gauge 10-32 threaded rack rails are EIA-compliant, clearly marked, and e-coated to prevent clogged threads. Designed for efficient cable management, ventilation slots on the top and bottom of each welded side enhance passive thermal management. Finished in a black textured powder coat, this cabinet is a practical and professional solution for smaller systems and is proudly made in the USA.

$543.60
$543.60 $543.60
Sale Sold out

Part Number: QMA-SBX-10-EA


Name: Middle Atlantic SBX Wall Mount Cabinet 10U

$543.60
$543.60 $543.60
Sale Sold out
  • Durable fully welded, 18 gauge steel construction.
  • Easy access backplane mounting system.
  • Locking front door with 180 degree swing.
  • High load capacity of 75 lbs for 7U and 100lbs for 10U.
  • Strong 11 gauge #10-32 threaded rack rail.
  • EIA compliant
  • Lifetime warranty from manufacturer
  • Proudly made in the USA
  • Available in 7 space (U) and 10 space (U) rack height for smaller systems.
  • 1 1/2” rail depth to door clearance unlike those found in flush mount designs.
  • The standard 10-32 rack rails are constructed of 11-gauge steel with each universal EIA rack space is clearly marked to facilitate installation.
  • The rails have an e coat, which means they have undergone an electroplating process that guarantees the threads will not become clogged.
  • 14-3/4” useable cabinet depth
  • 1/2” and 3/4” electrical knockouts at the top bottom and rear.
  • 1/2”, 3/4”,” and 1 1/2” electrical knockouts on rear.
  • Attractive Ventilation slots are on the top and bottom of each welded side to promote passive thermal management providing better ventilation than louvered designs.
  • Large pull box knockout on backplane to facilitate cable installation.
  • Aesthetically pleasing black texture powder coat finish.
  • Lifetime Warranty from Middle Atlantic Products; ISO 9001:2000 Factory Registered
