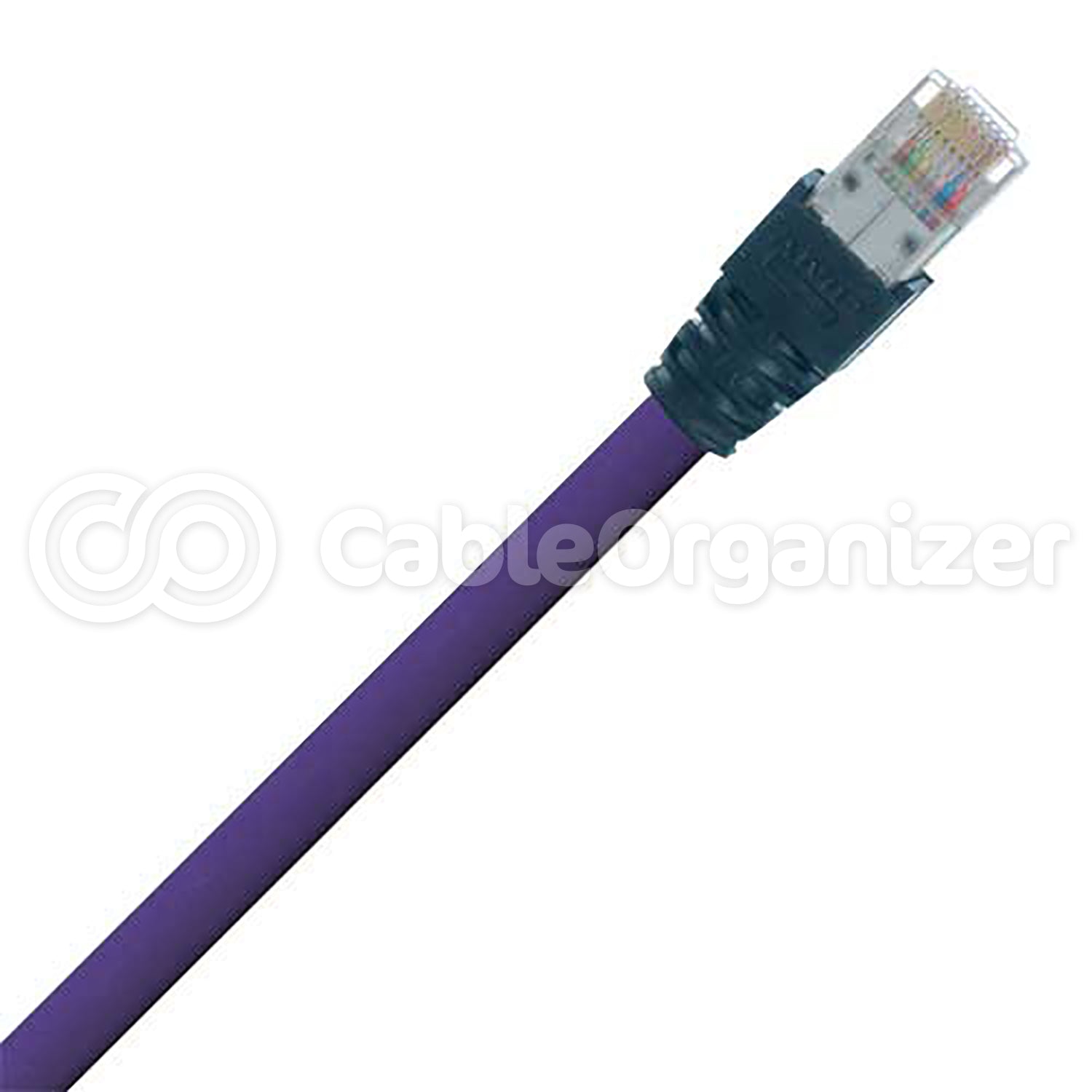

Igus® Chainflex® CAT5e Network Cables

Igus® Chainflex® CAT5e Network Cables

Pre-Terminated Data Cable for Extreme Applications

Equipment failure due to cables deteriorating and not living up to the demanding standards of today’s fast-paced machinery is a very costly and counterproductive problem that plagues a wide range of industries, from amusement parks to machine shops. Chainflex® Cat 5e Ethernet patch cords from Igus® provide the perfect solution to failing data cables used for moving machinery. Unlike standard Cat 5 cables, these high-performance cables contain multiple layers of strong, flexible and resistant materials to ensure cables perform and maintain the highest level of reliability, even in the roughest environments.

$154.01
$154.01 $154.01
Sale Sold out

Part Number: IGU-RI9296-N2M-EA

Certifications
  • CE
  • UL
  • CSA Approved
  • UL Recognized Component Mark

What's Special

  • Premium-grade category 5 data cable specifically designed to withstand the punishing rigors of constantly moving parts, while withstanding some of the harshest environmental elements.
  • Abrasion resistant and highly flexible construction protects inner conductors from premature breakage and wear-and-tear in high stress applications, such as cable/ hose carrier systems or suspended cable trays for industrial machinery.
  • 26 AWG inner conductors are constructed from finely stranded bare copper wires to provide excellent data transmission while meeting and exceeding the EIA/TIA compliance for CAT5eperformance.

Features

Pre-harnessed with high-quality RJ-45 keystones for immediate installation and use.

Conductors are insulated in a polyethylene foam designed to ensure consistency, while limiting crosstalk and interference.

Inner jacket is molded from a low-adhesion PVC blend designed to provide excellent flexibility, while protecting and maintaining twisted conductor pairs.

Overall shield offers up to 90% optical coverage, and is made from highly flexible tinned copper braid that significantly reduces the effects of electromagnetic interference (EMI) on the cable’s performance.

Outer jacket is a pressure extruded, halogen-free PUR blend that provides excellent abrasion and oil-resistance, with moderate UV-resistance and flame retardant qualities.

EIA/TIA 568-B.2 Compliant

UL® Compliant

CSA AWM Rated

CE Rated



Specifications

Igus Chainflex CAT5e Network Cables
