Hoffman® COMLINE® OSP Wall Mount Cabinet Packages 18u x 19

Hoffman® COMLINE® OSP Wall Mount Cabinet Packages 18u x 19

Cabinet and Accessories

The ComLine OSP Wall-Mount Cabinet is a complete, off-the-shelf solution for housing equipment in outdoor environments. Made of lightweight, corrosion-resistant aluminum with a foam-in-place gasket, it provides reliable protection for sensitive equipment. Available with or without a backup battery compartment, the cabinet is paired with ComLine OSP Wall-Mount Rack Angles, which securely mount 19-inch equipment inside and ground to the cabinet body through the mounting bolts. The rack angles feature EIA-standard square mounting holes and come packaged as a single unit.

$84.32
$84.32 $84.32
Sale Sold out

Part Number: HF-ERA199S-EA

What's Special

Wall Mounting Package:

  • Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening; can be removed for indoor installations
  • Foam-in-place gasket provides environmental seal
  • Padlocking L-Handle provides a tight, secure door seal
  • Doorstop holds door in place during service for easier and faster maintenance
  • Heavy-duty hinged door is easily removed to facilitate equipment installation and removal; maximum door load 50 lb. (22.7 kg)
  • Rack angles adjustable front-to-rear of cabinet
  • Gland plates available with cutouts that fit HOFFMAN T15, T20 and CR23 air conditioners and HOFFMAN XR20 and XR29 heat exchangers (Indoor use only)
  • Radius corners on cabinet eliminate sharp edges
  • Stainless steel fasteners resist corrosion to maintain professional appearance
  • Pole mounting kits available for all sizes
  • Pad mounting plinth available for 600mm deep cabinets
  • Battery compartment has front vented captivated door
  • Rack angles have EIA universal standard square hole spacing
  • Body includes studs for ground bar and rear mounting studs for wood panel

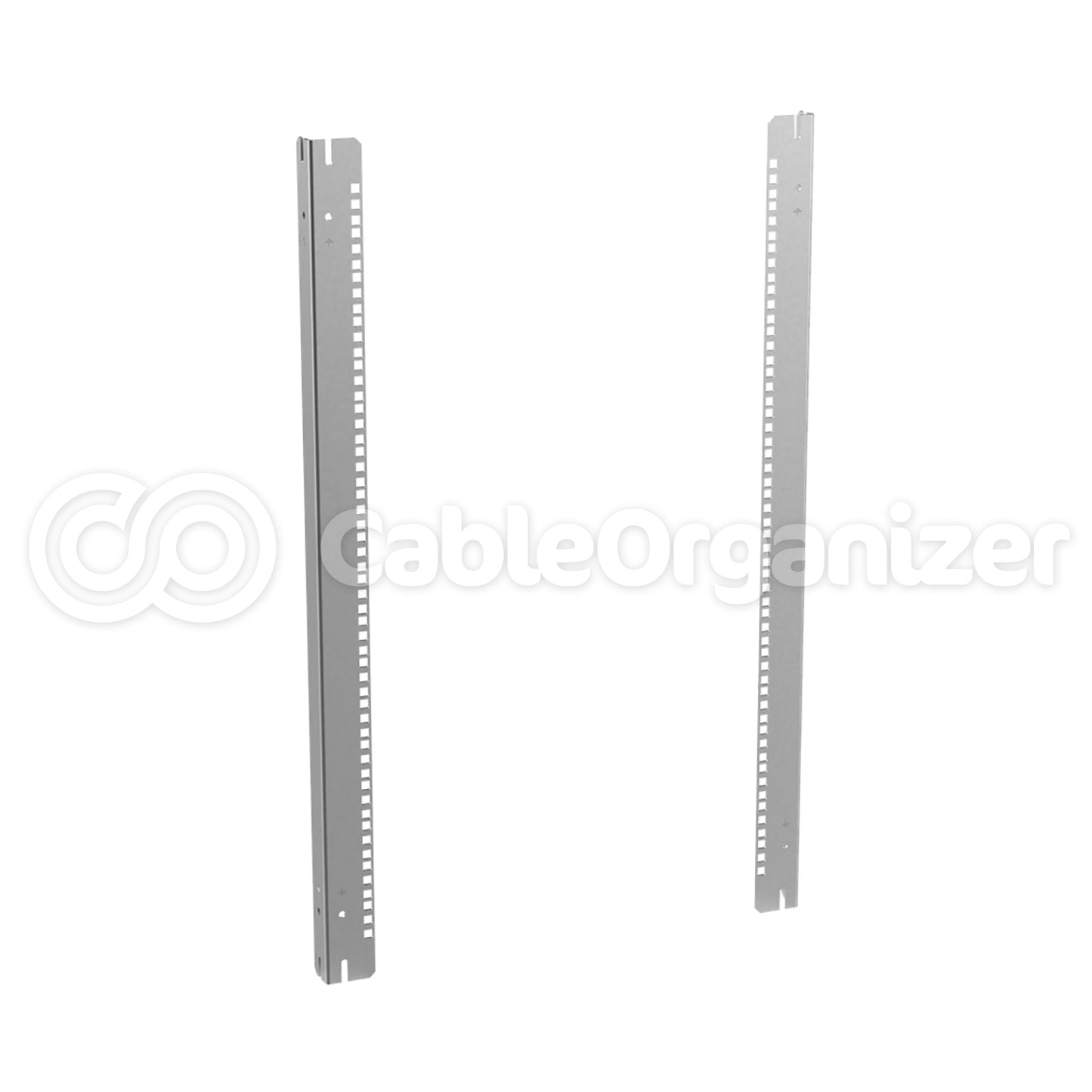

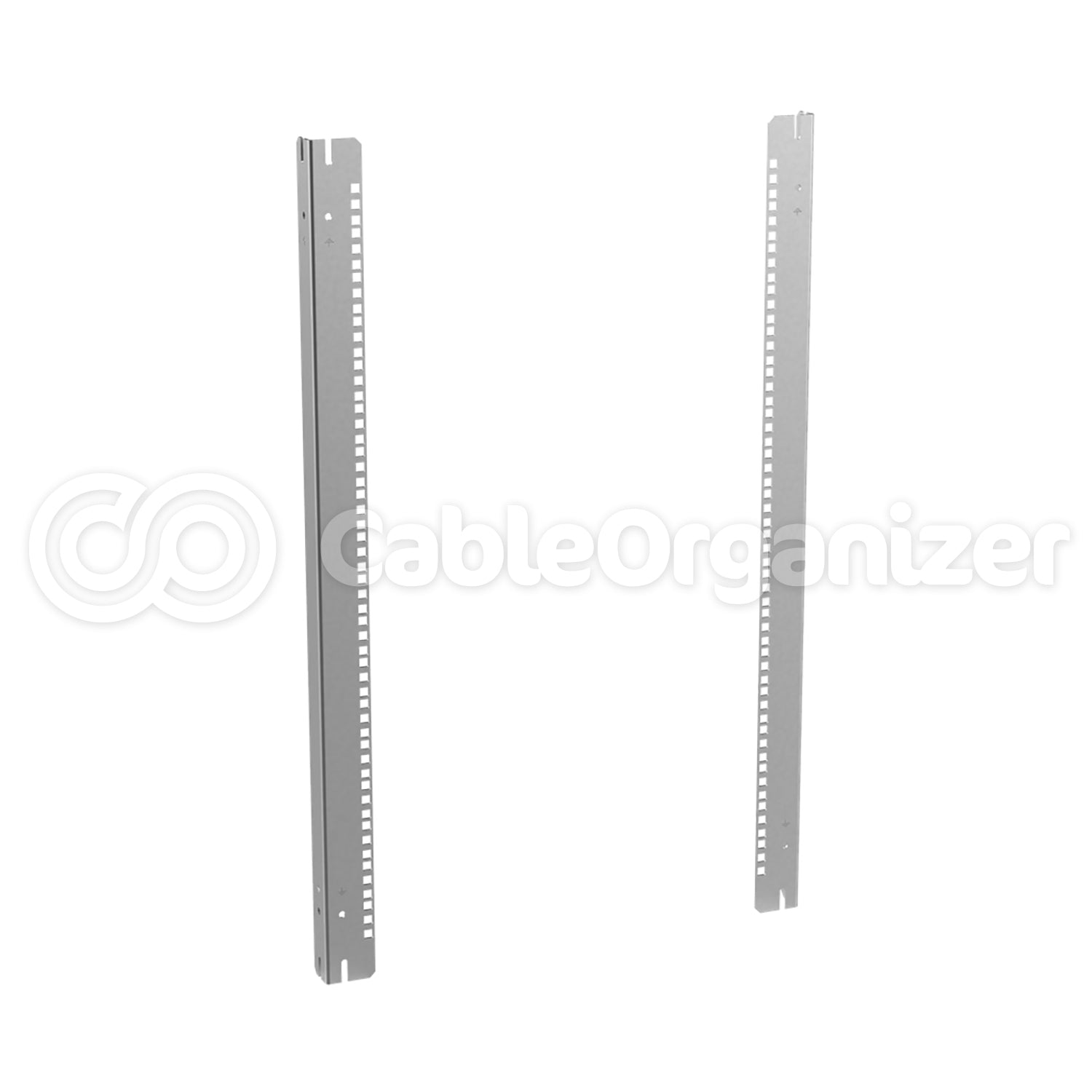

Rack Angle:

  • The ComLine OSP Wall-Mount Rack Angles are used to mount 19in rack equipment inside the cabinet
  • They are grounded to the cabinet body through the mounting bolts
  • Please note the square mounting holes meet EIA standard and each package includes one pair

Specifications

comline specs
