Flexo® Tight Weave™ FR

Flexo® Tight Weave™ FR

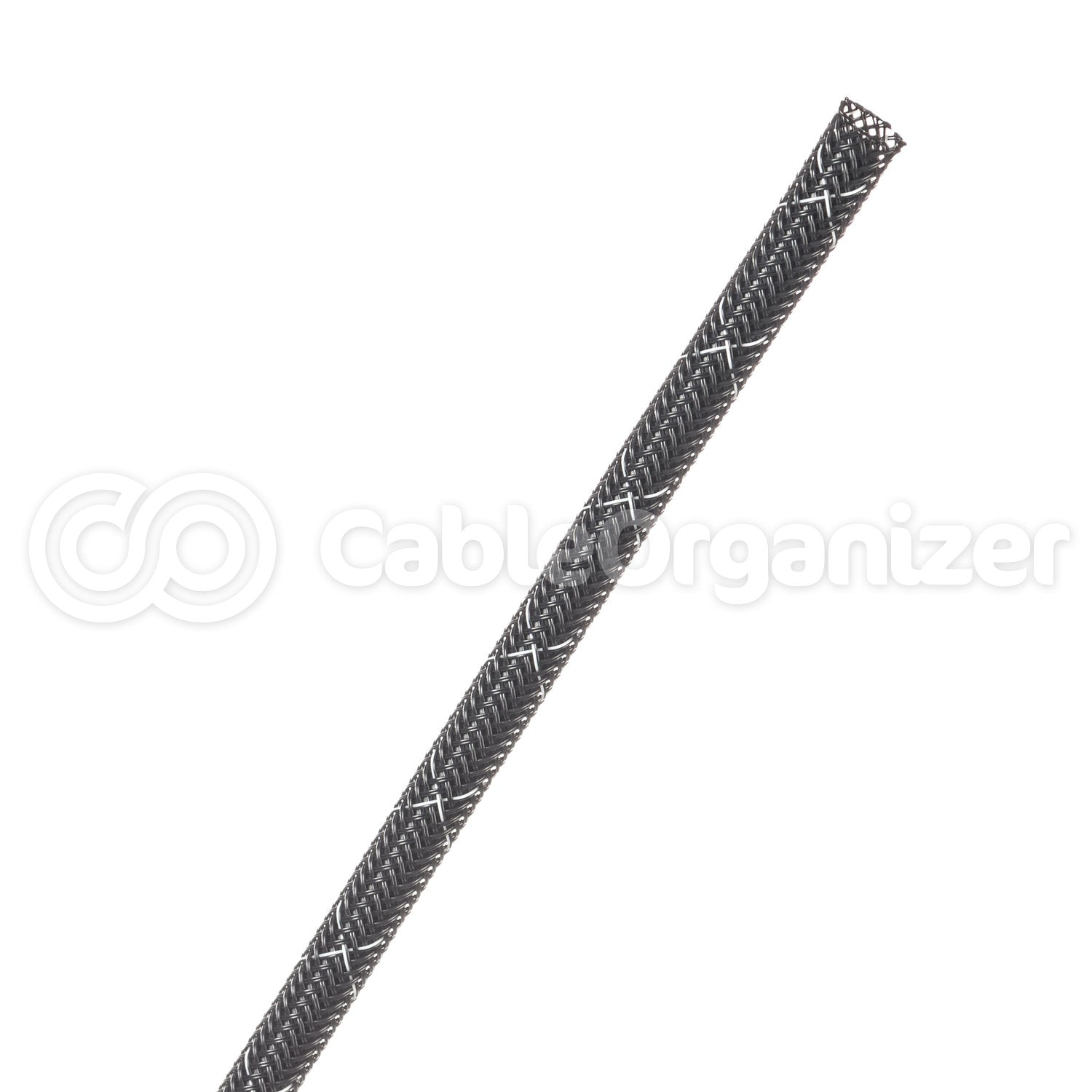

Tightly Woven Flame Retardant 9 mil Braided Sleeving

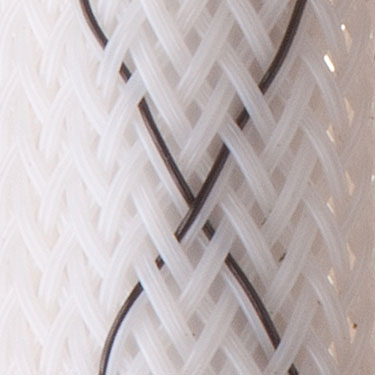

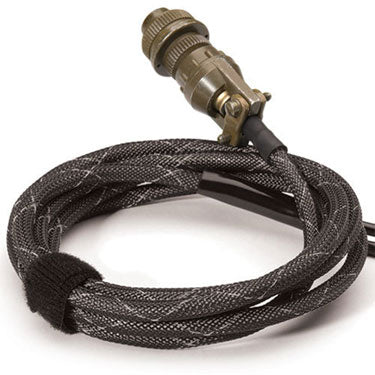

When moderate protection from flame spread and easy access are important, flame retardant Flexo® Tight Weave™ is an ideal solution. Flame Retardant Flexo® Tight Weave™ sleeving was developed by and for aircraft manufacturers as a replacement for the Standard Grade FR. This sleeving material is constructed from tightly braided 9 mil flame retardant monofilament. The result is fuller coverage over wire harnesses. This allows for increased abrasion protection, which is a critical issue in the aviation industry. The 9 mil monofilament is used instead of 10 mil in order to lessen the additional weight that results when the monofilament is tightly braided into sleeving material.

Regular price $160.00
Regular price $160.00 Sale price $160.00
Sale Sold out

Part Number: F9T0.13TB-1000

What's Special

  • Resists Gasoline And Engine Chemicals
  • Meets Material Specs For Major Airlines
  • Halogen Free - RoHS Compliant
  • VW-1, Mil-202, FAR-25 Approved

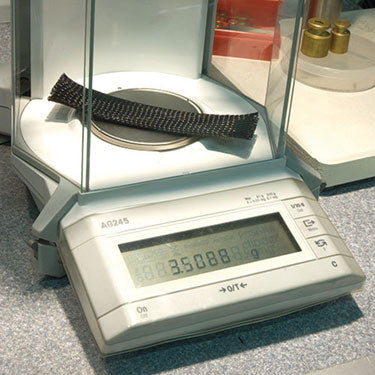

  • Lighter Weight Than Standard Tight Weaves

Features

  • Monofilament Diameter: 0.009 "
  • Flammability Rating: Far 25 VW-1
  • Recommended Cutting: Hot Knife
  • Colors: 2
  • Minimum Continuous Temp: -94 ºF / -70 ºC
  • Maximum Continuous Temp: 257 ºF / 125 ºC
  • Melt Temp: 482 ºF / 250 ºC

What Does ‘Flame Retardant’ Mean?

Flame retardant refers to a substance or material that is designed to resist or delay the ignition and spread of flames. Flame retardants work by interrupting the chemical reactions that occur when a material is exposed to heat or flames. They can prevent or slow down the release of flammable gases, reduce the amount of oxygen available for combustion, or create a protective layer that shields the material from the fire.

Flame Retardant Vs. Non-Flammable

Flame retardant: These materials are designed to resist flames and prevent or slow the spread of fire. These materials are treated with special chemicals that react to heat and flames, creating a barrier that can help protect against fire and reduce the risk of damage or injury.

Non-Flammable: These materials are those that do not burn or ignite at all, even when exposed to heat or flames. These materials may be made from special types of metals or other materials that have a very high melting point or are inherently resistant to fire.

Specifications
