Flexo® F6® Woven FR

Flexo® F6® Woven FR

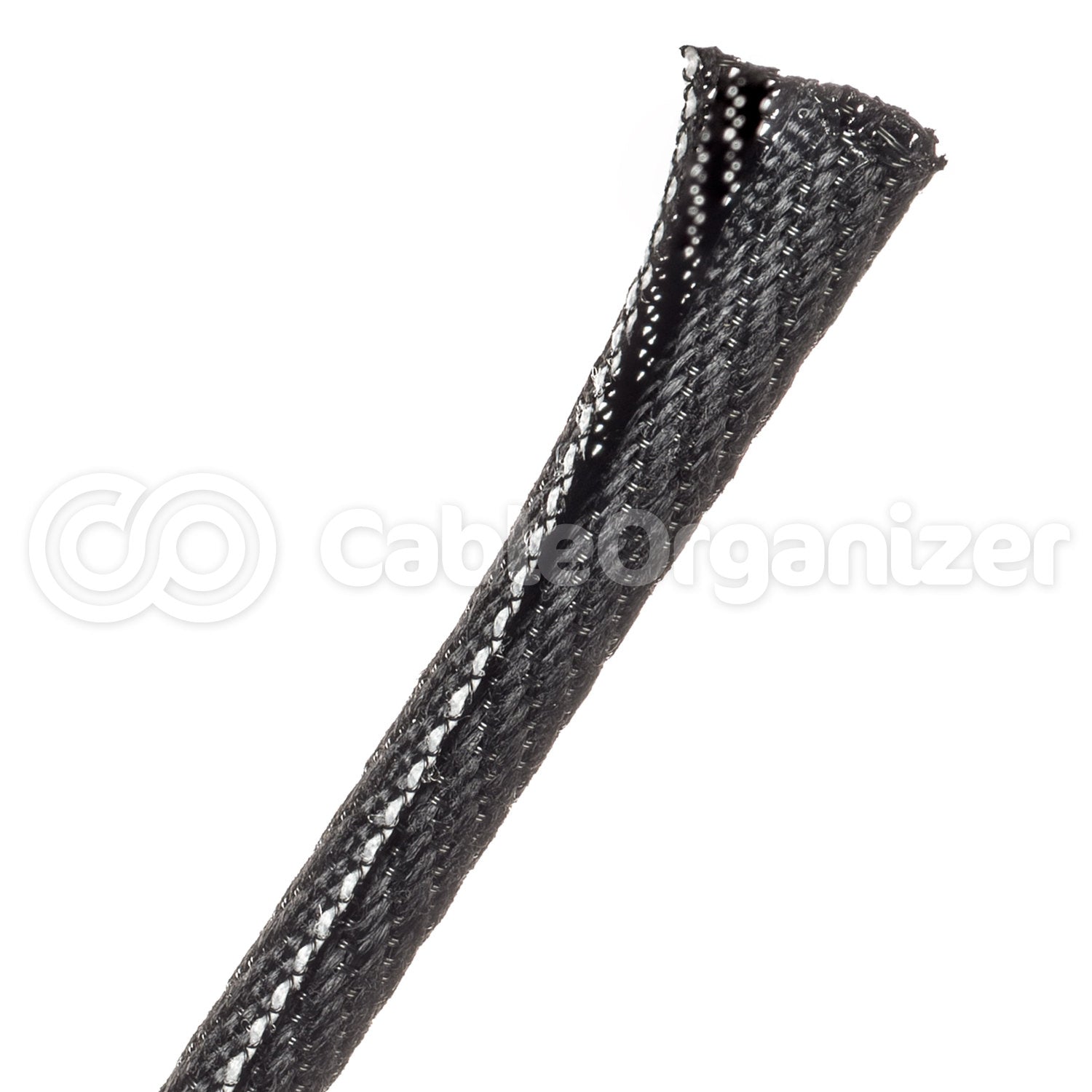

Self-Closing Flame Retardant Split Wrap Woven Sleeving

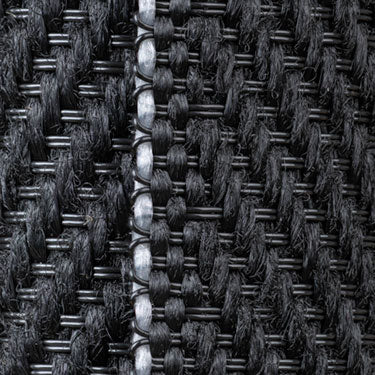

F6® Woven Wrap FR (F6V) is a VW-1 Rated version our industry recognized F6 Woven Wrap, with the added advantage of a flame inhibitor to provide an extra level of safety. It utilizes many of the same characteristics as original F6® split braided sleeving including the easy wrap around design and the extra overlap to ensure complete protection of important electronic communication and power systems.The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Through a unique process, the blend of monofilament and multifilament polyester fibers are formed into a sleeving with memory that causes the sleeve to self close, and also snap back when opened.

Regular price $12.40
Regular price $12.40 Sale price $12.40
Sale Sold out

Part Number: F6V0.19TB-10

Certifications
  • RoHS Compliant
  • UL Recognized Component Mark

What's Special

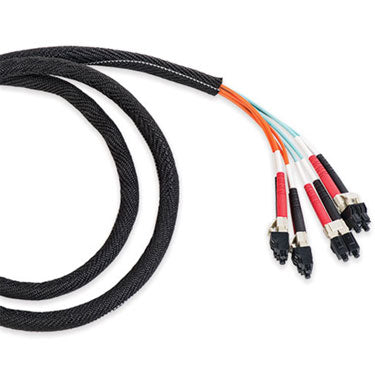

  • Provides superior elastic flexibility with unbeatable coverage over any harness assembly.
  • Ideal for protecting components without disconnecting them.
  • Passes Smoke Density Test ASTM E-662
  • Passes Surface Flammability Test ASTM E-162
  • Passes Smoke Toxicity Test SMP 800-C

Features

  • Monofilament Diameter: 0.010 "
  • Flammability Rating: VW-1
  • Recommended Cutting: Hot Knife
  • Colors: 1
  • Minimum Continuous Temp: -94 ºF / -70 ºC
  • Maximum Continuous Temp: 257 ºF / 125 ºC
  • Melt Temp: 482 ºF / 250 ºC

Specifications
