Flexo® F6®

Flexo® F6®

Uniquely Designed Split Tube, Semi-Rigid Braided Sleeving
5.0
Rated 5.0 out of 5 stars
1 Review

F6®’s unique split, semi-rigid braided construction makes it the ideal solution for situations where ease of installation is of primary importance. The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, and the semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners (velcro®, tape, etc.)

The 10 mil PET braid is lightweight, quiet and flexible. The 25% edge overlap (at nominal diameter) allows coverage around inline plugs, connectors and splices. F6® will bend to a tight radius without distorting or splitting open and, unlike full rigid tubing, will not impair or affect the flexibility of harnesses. F6® allows for the addition or removal of wires without disassembly. As easy as installing F6® is, we've made it even easier to cover long lengths of wire or cables quickly and economically.

  • RoHS Compliant
  • UL Recognized Component Mark
  • ABYC
  • FAR-25
  • Prop 65 Clean
$6.00
$6.00 $6.00
Sale Sold out
Black

Part Number: F6N0.13BK-10

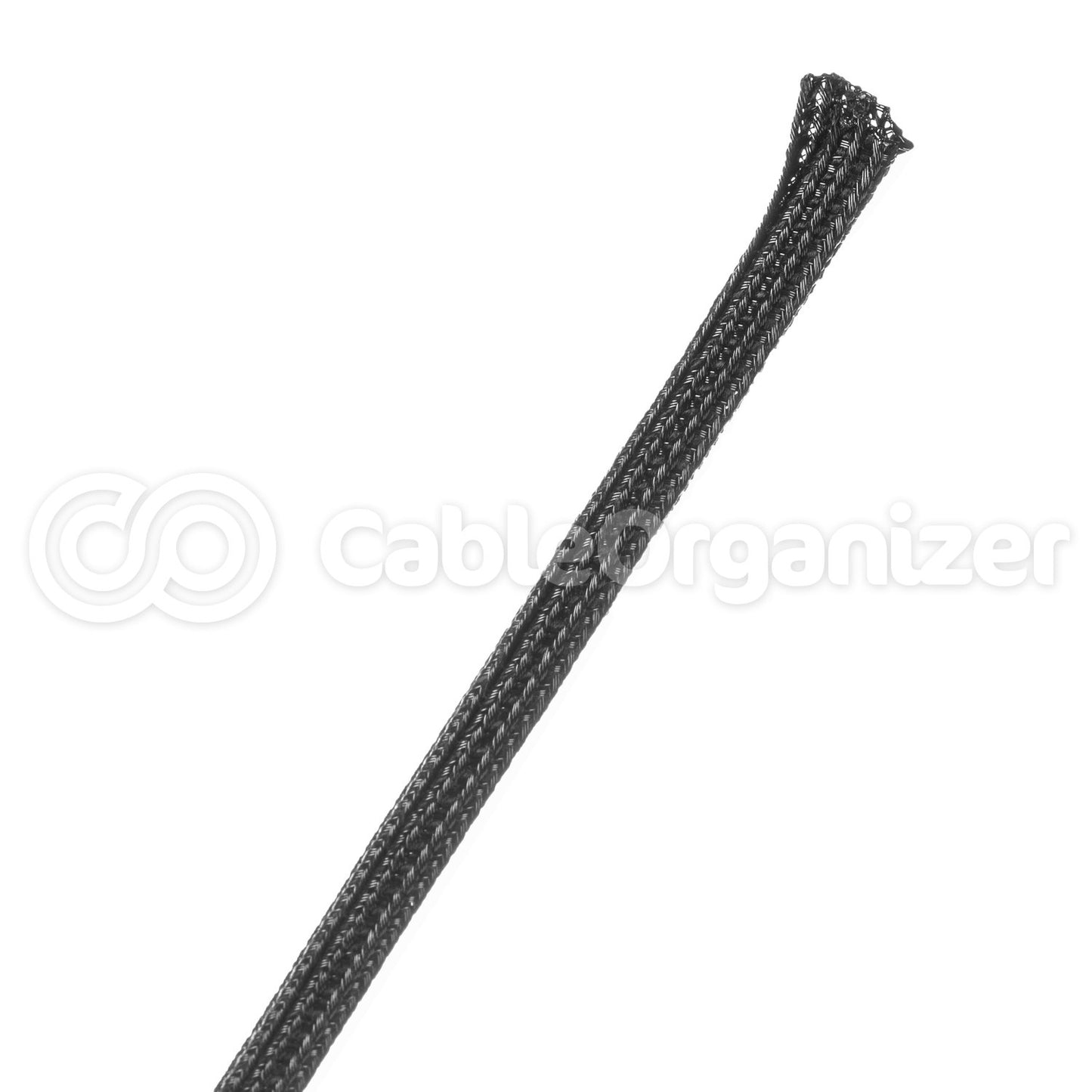

Name: Flexo F6® - 1/8" - Black - 10 ft cuts

$6.00
$6.00 $6.00
Sale Sold out
Looking for matching accessories?
  • Easy, Cost Effective Installation
  • More Flexible than Split Convoluted or Spiral Wrap
  • Retains Shape & Rigidity Throughout -94°F to 257°F Temp. Range
  • 25% Edge Overlap
  • Melt Temp 482°F
  • As easy as installing F6® is, we've made it even easier to cover long lengths of wire or cables quickly and economically.

What Are The Benefits of Using A Split Braid?

Flexo F6® is a unique split, semi-rigid side entry braided sleeve (also referred to as split loom or wrap around sleeve). F6® offers the standard protective qualities of braided sleeving with some added benefits including:

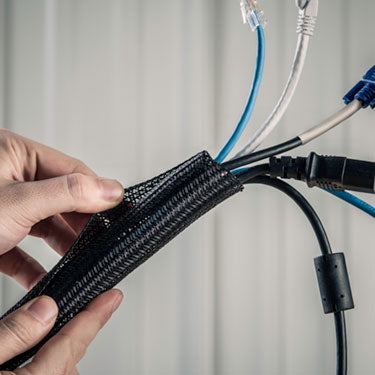

Easy Installation: Split braided sleeving can be installed easily without the need to remove or disconnect any wires or cables. The split design allows the sleeving to be wrapped around the cables, and features a self-closing construction.

Flexibility: The split design allows the sleeving to flex and bend without causing any damage to the wires or cables inside. This makes it ideal for applications where cables need to move, route around corners, or bend frequently.

Organization (& Reorganization): Split loom can bundle multiple cables together for one streamline harness while allowing cables to be added or removed without removing the split sleeving.

  • Monofilament Diameter: 0.008 - 0.015"
  • Flammability Rating: UL94
  • Recommended Cutting: Hot Knife
  • Colors: 8
  • Minimum Continuous: -94 ºF / -70 ºC
  • Maximum Continuous: 257 ºF / 125 ºC
  • Melt Temp: 482 ºF / 250 ºC
F6N Flexo F6

Find Your Flexo® F6®

Loading variants… 0 loaded

# Variant ID Image Nominal Diameter Color Length Part # Wall Max Price (Each) Quantity

Accessories

INN-5PK-OR

Wire Loom Tools

From $5.02
$5.02 From $5.02

Part Number: INN0.25BL-EA

5.0
Rated 5.0 out of 5 stars
Based on 1 review
Write a Review (Opens in a new window)
1 review
  • A
    Arnold
    Reviewing
    Flexo® F6®
    I recommend this product
    Rated 5 out of 5 stars
    6 months ago
    5 Stars

    High quality and available in quantities suitable for very small businesses !

    Shipping was slow , but in this case i believe there was a back order.

    Overall , Im fortunate to have discovered CableOrganizer !
