Corning UniCam® Pretium™ Performance Multimode Connectors
Corning UniCam® Pretium™ Performance Multimode Connectors

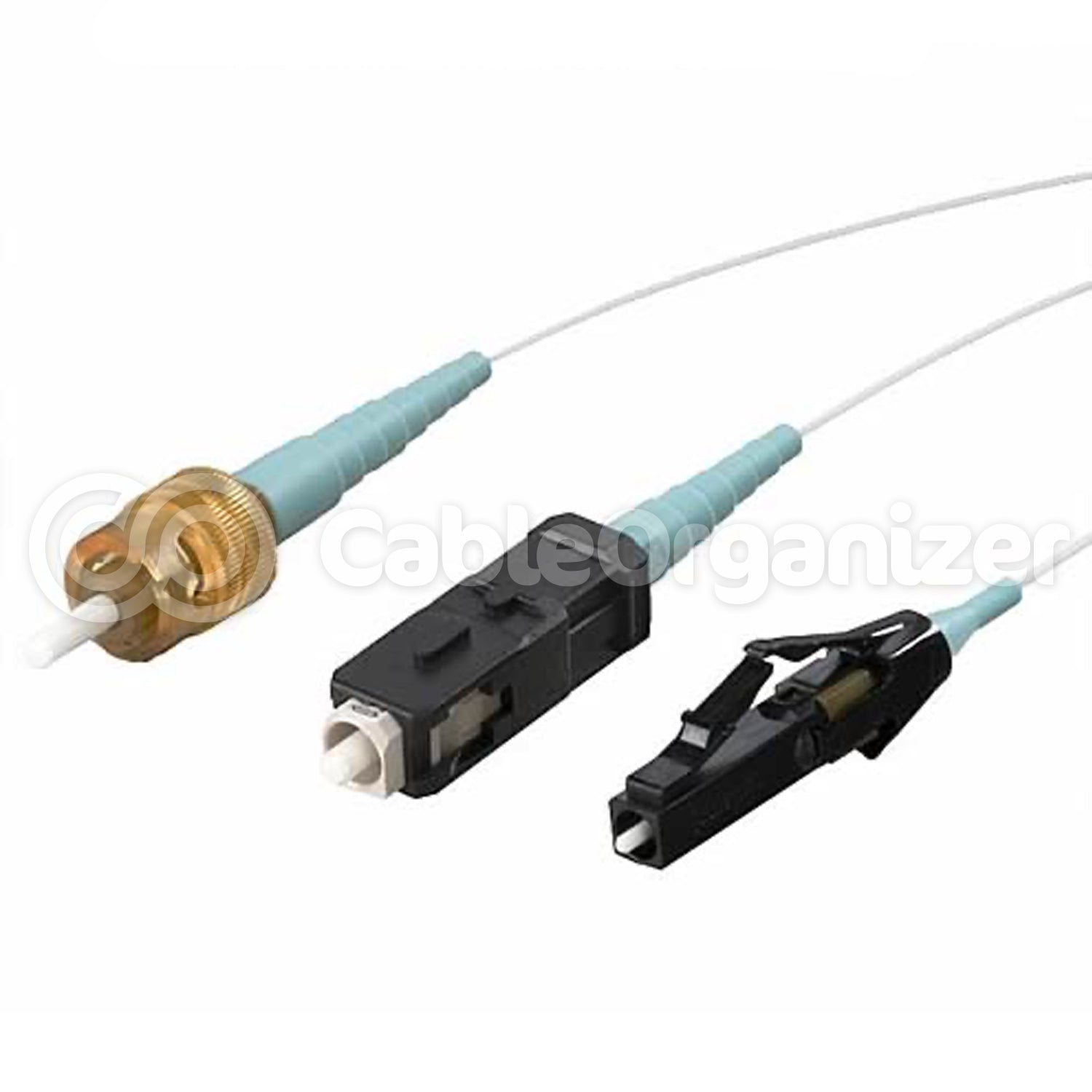

Corning UniCam Pretium connectors are available with a ceramic ferrule in LC-, SC-, and ST-compatible connector styles. The Connectors are no-epoxy, no-polish connectors that install quickly and easily in the field. The cost of installation is greatly reduced based on the quick 45-second installation time using the Pretium Tool Kit.
Part Number: CN-95-050-99-X-EA
Couldn't load pickup availability
What's Special
What's Special
- Best in class optical Pretium performance connectors.
- Ideal for fiber deployments in local area networks (LAN's), data centers, and campuses.
- Excellence guaranteed .1 typical dB/.5 dB maximum insertion loss per connector pair.
- Patented high precision ceramic ferrule are 100% tested to meet insertion loss.
- Use with the UniCam Pretium Tool Kit for fastest most precise installation.
Features
Features
100% guaranteed by Corning Cable Systems to meet insertion loss specification.
Operating temperature ranges from -40° to +75° C to accommodate indoor or outdoor use in an enclosure.
Pretium performance can be achieved with the UniCam Pretium Tool Kit or the standard UniCam Connector Toolkit.
No consumables needed
Fast installation lowers labor costs.
The UniCam Pretium-Performance Multimode Connectors are 100% guaranteed for meeting an installation specification of 0.1 dB typical and 0.5 dB maximum insertion. They also meet TIA/EIA-568 B.3 specifications for insertion loss and return loss at temperatures of -40° to +75° C, which allows the connectors to be used outdoors when enclosed in environmentally protected hardware.
Specifications
