CAT 5e GigaMax 110-Style Wiring

• Compact design compatible with any existing 110 installation
• Rack mount bases mount to any 19" frame or hinged wall mount bracket
• Meets all Category 5E standards including TIA/EIA 568-B.2 & FCC Part 6

Components are UL listed UL94V-0 ensures they are made of fire retardant plastic.

Legs allow cables to be run underneath the units or route cables adjacent to the wiring bases.

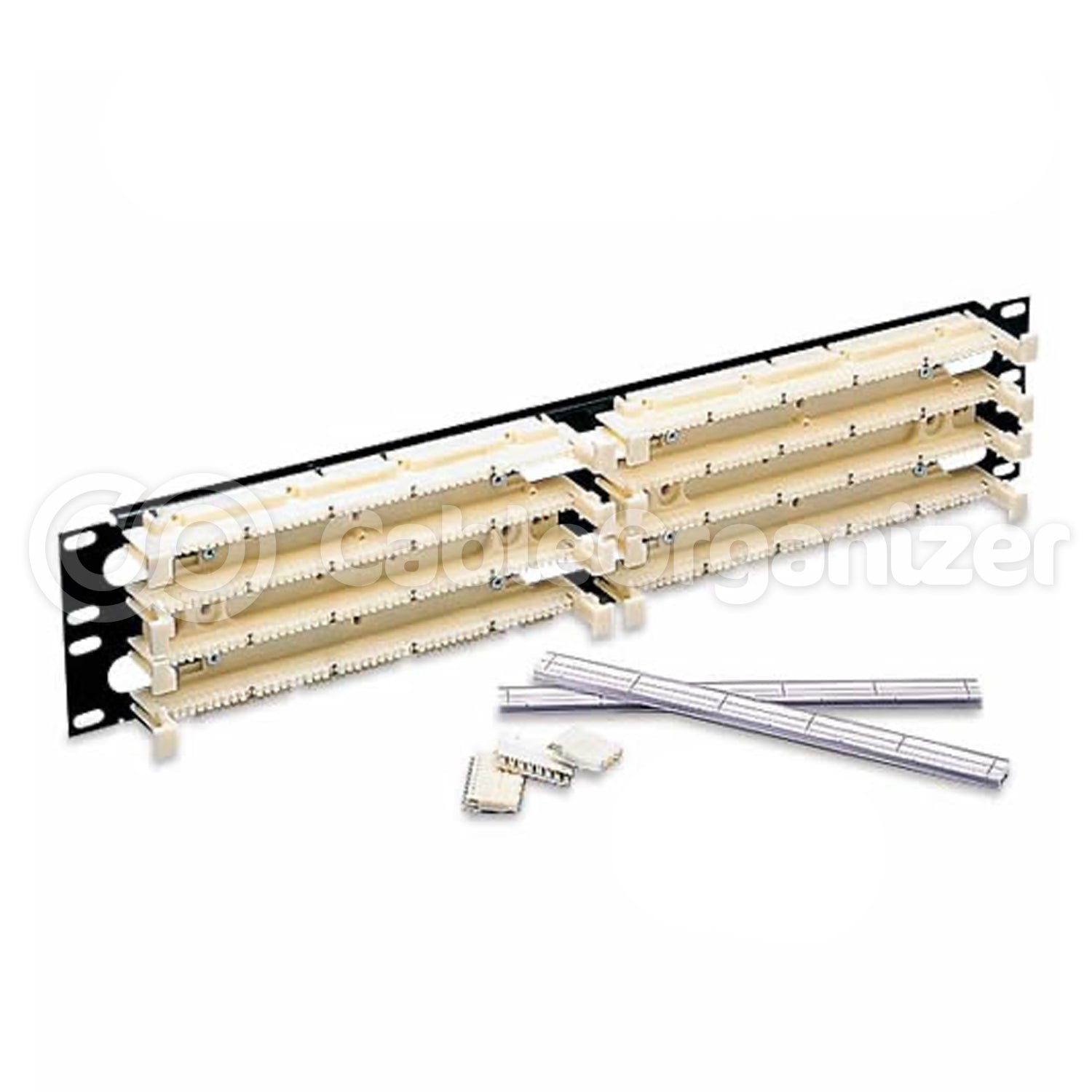

Available as a rack mount and wall mount installation so you can install in any 19" rack or wall or backboard.

Rack mount versions are available in 100, 200, and 300 pair densities.

Rack mount Kits include the panel back plate, fire retardant C-4 or C-5 connecting clips, label holders, and labels.

Wall mount versions are available in 50, 100, 300 pair densities.

Wall mount kits include bases, C-4 or C-5 connecting blocks, label holders and labels.

Manufactured in Leviton's own ISO 9001 registered factory for quality assurance.

Uses/Application

Use a Cat 5 E 110 style base or kit in telecommunications equipment rooms including building entrance faculties or small telecom closets to provide a fixed cross connect termination for high speed data, voice or security applications when using category 5E cable.

The 110 racks mount bases mount to any 19” distribution frame or hinged wall mount bracket.
The wall mount bases mount to walls or backboards.

110 Style Connector Clips (Blocks)

Use these 110 style connector clips(also called blocks) to securely seat wires with leviton’s 110 wiring bases for a Category 5e high performance connection.

Features & Benefits

Available in three pair count sizes : C-3, C-4, C-5 to support terminations for voice, security, category 5e data when used with category 5e cable.

These clips meet or exceed standards for category 5e compliance including TIA/EIA-568-B and FCC Part 68.

Made of UL rated 94V-0 fire retardant plastic with solder plated IDC’s(insulation displacement connectors).

Clips provide a gas tight IDC connection and can withstand 200 re-terminations.
