Raised Floor Cable Tray System

Perfect Under-Floor Cable Installations

AFF-FT2X6X24
Qty:

What's special about this access floor cable manager?

  • Runs low to medium voltage cables below raised flooring for superior high density network cable management.
  • Cables can be set as close as two inches from the underside of your raised flooring system, allowing easy access for maintenance.
  • Contains very few parts and installs with only a common screwdriver for a very simple installation that allows even large jobs to be done by one person.
  • Sizes from 6 inches to 24 inches wide allow you to find a perfect fit for your application, and use the standard 2ft x 2ft grid spacing used in all raised flooring.
  • Click for More Features
CSA Approved

Since the initial installation is seldom the last you see of your network wiring, it's important to keep your cables well organized and accessible. Cable Tray can be installed as little as 2 inches below the floor, providing extremely convenient access to your cabling for maintenance and updates. Access Cable Tray is available in a large variety of sizes to fit wiring of varying densities, and uses standard 2ft x 2ft raised floor grid spacing for easy retrofits. Proudly made in the USA for quality assurance.

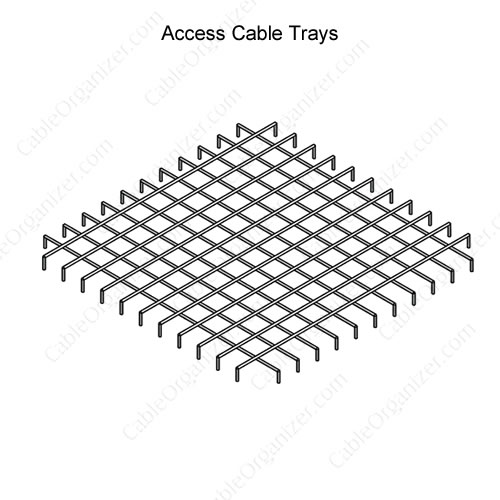

Floor Trays
NOTE: All orders ship within 3-5 Business days

6" Wide
Part # Length Depth Price
AFF-FT2X6X24 24" 2"
Qty:
Manufacturer Direct
AFF-FT2X6X48 48" 2"
Qty:
Manufacturer Direct
AFF-FT4X6X24 24" 4"
Qty:
Manufacturer Direct
AFF-FT4X6X48 48" 4"
Qty:
Manufacturer Direct
AFF-FT6X6X24 24" 6"
Qty:
Manufacturer Direct
AFF-FT6X6X48 48" 6"
Qty:
Manufacturer Direct
12" Wide
Part # Length Depth Price
AFF-FT2X12X24 24" 2"
Qty:
Manufacturer Direct
AFF-FT2X12X48 48" 2"
Qty:
Manufacturer Direct
AFF-FT4X12X24 24" 4"
Qty:
Manufacturer Direct
AFF-FT4X12X48 48" 4"
Qty:
Manufacturer Direct
AFF-FT6X12X24 24" 6"
Qty:
Manufacturer Direct
AFF-FT6X12X48 48" 6"
Qty:
Manufacturer Direct
24" Wide
Part # Length Depth Price
AFF-FT2X24X24 24" 2"
Qty:
Manufacturer Direct
AFF-FT2X24X48 48" 2"
Qty:
Manufacturer Direct
AFF-FT4X24X24 24" 4"
Qty:
Manufacturer Direct
AFF-FT4X24X48 48" 4"
Qty:
Manufacturer Direct
AFF-FT6X24X24 24" 6"
Qty:
Manufacturer Direct
AFF-FT6X24X48 48" 6"
Qty:
Manufacturer Direct

Accessories

Horizontal Support Bars
Part # Image Tray Width Price
AFF-HS24 Raised Floor Cable Tray System AFF-HS24 24"
Qty:
Manufacturer Direct
AFF-HS24S Raised Floor Cable Tray System AFF-HS24S 24" Seismic
Qty:
Manufacturer Direct

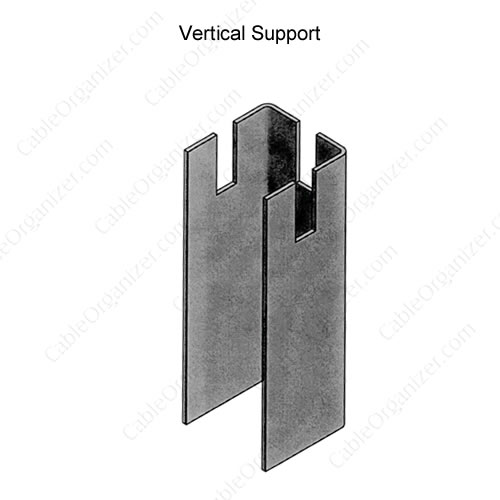

Vertical Supports
Part # Image Height Price
AFF-VS2 Raised Floor Cable Tray System AFF-VS2 2"
Qty:
Manufacturer Direct
AFF-VS4 Raised Floor Cable Tray System AFF-VS4 4"
Qty:
Quick Ship
AFF-VS6 Raised Floor Cable Tray System AFF-VS6 6"
Qty:
Manufacturer Direct
AFF-VS12 Raised Floor Cable Tray System AFF-VS12 12"
Qty:
Manufacturer Direct
AFF-VS16 Raised Floor Cable Tray System AFF-VS16 16"
Qty:
Manufacturer Direct
AFF-VS18 Raised Floor Cable Tray System AFF-VS18 18"
Qty:
Manufacturer Direct
AFF-VS20 Raised Floor Cable Tray System AFF-VS20 20"
Qty:
Manufacturer Direct
AFF-VS26 Raised Floor Cable Tray System AFF-VS26 26"
Qty:
Manufacturer Direct
AFF-VS30 Raised Floor Cable Tray System AFF-VS30 30"
Qty:
Manufacturer Direct
Horizontal Flat Fitting
Part # Image Description Price
AFF-FTINT Raised Floor Cable Tray System AFF-FTINT Flat Fitting - Allows transition to T's, 90° Turns, and crosses in your pathway
Qty:
Manufacturer Direct
Brackets for 2 Level Tray Systems
Part # Image Height Tray Width Price
AFF-ML4X6 Raised Floor Cable Tray System AFF-ML4X6 4" 6"
Qty:
Manufacturer Direct
AFF-ML8X6 Raised Floor Cable Tray System AFF-ML8X6 8" 6"
Qty:
Manufacturer Direct
AFF-ML12X6 Raised Floor Cable Tray System AFF-ML12X6 12" 6"
Qty:
Manufacturer Direct
AFF-ML4X12 Raised Floor Cable Tray System AFF-ML4X12 4" 12"
Qty:
Manufacturer Direct
AFF-ML8X12 Raised Floor Cable Tray System AFF-ML8X12 8" 12"
Qty:
Manufacturer Direct
AFF-ML12X12 Raised Floor Cable Tray System AFF-ML12X12 12" 12"
Qty:
Manufacturer Direct
Vertical Extension Brackets, used to make multi-level tray systems with 24" wide trays
Part # Image Height Price
AFF-AFVX4 Raised Floor Cable Tray System AFF-AFVX4 4"
Qty:
Manufacturer Direct
AFF-AFVX6 Raised Floor Cable Tray System AFF-AFVX6 6"
Qty:
Manufacturer Direct
AFF-AFVX8 Raised Floor Cable Tray System AFF-AFVX8 8"
Qty:
Manufacturer Direct
Cable Tray Divider
Part # Image Length Height Price
AFF-CTD242 Raised Floor Cable Tray System AFF-CTD242 24" 2"
Qty:
Manufacturer Direct
AFF-CTD244 Raised Floor Cable Tray System AFF-CTD244 24" 4"
Qty:
Manufacturer Direct
AFF-CTD246 Raised Floor Cable Tray System AFF-CTD246 24" 6"
Qty:
Manufacturer Direct
AFF-CTD482 Raised Floor Cable Tray System AFF-CTD482 48" 2"
Qty:
Manufacturer Direct
AFF-CTD484 Raised Floor Cable Tray System AFF-CTD484 48" 4"
Qty:
Manufacturer Direct
AFF-CTD486 Raised Floor Cable Tray System AFF-CTD486 48" 6"
Qty:
Manufacturer Direct
Clips
Part # Image Description Price
AFF-GR-CLIP Raised Floor Cable Tray System AFF-GR-CLIP Ground Clip/Fastener, pack of 50: Required between trays, grounds the tray for electrical continuity
Qty:
Manufacturer Direct
AFF-VSRC Raised Floor Cable Tray System AFF-VSRC Lock Vertical Support to Access Floor Pedestal, pack of 50: 1 Required to install each vertical support
Qty:
Manufacturer Direct
Brackets for 3 Level Tray Systems
Part # Image Height Tray Width Price
AFF-MLT4X12 Raised Floor Cable Tray System AFF-MLT4X12 4" 12" Call for Pricing
AFF-MLT4X6 Raised Floor Cable Tray System AFF-MLT4X6 4" 6" Call for Pricing
AFF-MLT8X12 Raised Floor Cable Tray System AFF-MLT8X12 8" 12" Call for Pricing
AFF-MLT8X6 Raised Floor Cable Tray System AFF-MLT8X6 8" 6" Call for Pricing
  • Multi-level brackets that allow 2 and 3 tier installs are available to accommodate runs of the highest density.
  • Compatible with flooring of any height, ensuring a universal solution for new cable runs and retrofit applications alike.
  • Structural parts are universal, so switching between tray widths is a breeze.
  • Unlike overhead cable tray, this under floor tray allows unobstructed airflow in your computer room for efficient component operation, prolonged equipment life, and increased fire safety.
  • Vertical support bars are attached to pedestals of existing flooring to provide extra stability without loss of pedestal integrity.
  • Hot dipped galvanized steel construction prevents the formation of zinc whiskers that cause short circuits, system resets, equipment corrosion, and other network problems.
  • Works with new installs or retrofit applications.
  • Quality made in the USA

DRAWING DIMENSIONS



PROPERTY VALUE
Fill Ratio 40% of total fill capacity (TIA 569-A)
50% of total fill capacity (NEMA VE-1/CSA 22.2 No 126.1)
Load Span Up to 200 lbs (90.71 kg) every 4 ft (1.21 m)
Finish Polyester Powder Coat
Material Hot Dipped Galvanized Steel
Wire Gauge 18G
Wire Diameter 0.197" (5mm)
Industry Standards
  • ASTM A 641
  • ASTM A 580
  • ASTM A 123
  • ASTM A 510
  • ASTM B 633
  • ASTM A 580
  • ASTM A 653
  • NEMA VE1-2002
  • NEMA VE2-2006
  • TIA 569-A
  • TIA-942
  • NFPA 70
  • CSA C22.2 Bi 126
  • IEC 61537
  • ISO 9001:2000
  • MIL-S-901D
  • MIL-STD-167-1
