Hand-Bendable Cable Trays Let You Create Fast and Easy Custom Cable Runs

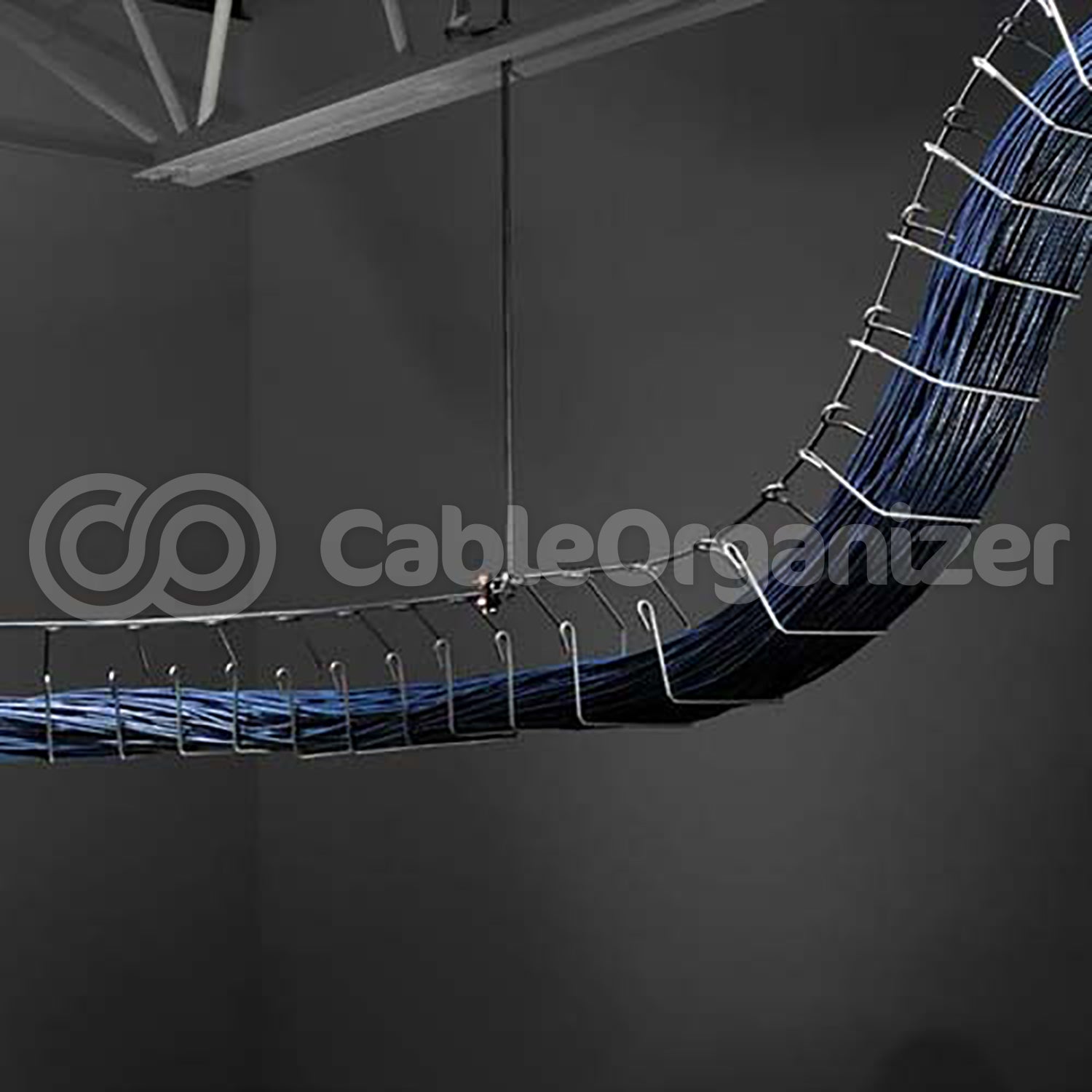

Our best-selling and most versatile labor-saving cable tray system is the 201 Series from Snake Tray. It can be mounted below access floors, wall mounted, ceiling mounted or suspended from a threaded rod. The 201 Series Snake Tray is available in six sizes (4 single tray and 2 double tray) and can hold up to 510 cables at 100% fill with up to 50 sq. in. of cable path. Better than a generic basket or ladder type tray, its patented top-mounted center spine allows you to easily bend the tray by hand to create both horizontal and vertical turns that help route cables over and around obstacles.

$82.16
$82.16 $82.16
Sale Sold out

Part Number: CM-201-24-8-EA

What's Special

  • It's the most flexible wire mesh tray cable runway system designed to support both fiber optic cabling and copper-based voice/telecommunication cables.
  • Can be used below raised floors as well as overhead (either mounted to walls or suspended from the ceiling).
  • Made of cold-rolled steel for durability.
  • Easy on-site installation without the need for special bending tools.

Features

The 201 Series Snake Tray is available in four sizes, and features a single-pocket design that can accommodate up to 24 square inches of cable, which is equal to a 12" generic basket or ladder-type tray, or 250 cables with a .25" OD as per NEC Article 318-9(b). Standard length is 98”.

Mounting Rings, called Snake Eyes™ , are located along the Snake Tray's spine, allowing you to easily attach threaded rods for suspended applications. Only one UL listed connector bolt (CM-CB-10) is required to join two trays together. A variety of mounting hardware options let you adapt Snake Tray to your specific needs: simple, easy-to-use wall brackets allow the 201 Series Snake Tray to be suspended off of vertical surfaces, and ST under-floor brackets attach the Snake Tray to access floor stanchion posts to create cable pathways in raised floor data center environments. Universities, Fortune 500 Companies and the US Government  already specify Snake Tray product to simplify and economize their cable tray installations... now you can, too!

  • Proven to save up to 85% on installation costs
  • Hand-bend the cable tray in any direction, or around any obstacle – no tools needed
  • No sharp edges, so no injuries to the installer or cable
  • Create turns in 10 seconds versus 20 minutes with other methods
  • Made of and zinc-plated (ASTM B633C2) cold-rolled steel (ASTM A510)
  • Connect Snake Trays together with only one UL-listed connector bolt
  • Trays connect in only 15 seconds, versus 10 minutes with other methods
  • Built-in hanging hardware
  • Trays nest together to lower freight costs
  • Ships from inventory within a day
  • No need to waste time determining which hardware to use
  • Hangs from a single point for lower labor costs
  • Design allows cables to enter or exit at any point, in any direction
  • Mounting hardware is simple and can be used for both computer access floor and overhead installations
  • Single pocket design
  • UL Listed for weight capacity
  • EIA/TIA and NEC Compliant
  • NFPA 708 Compliant (NFPA 708)
  • Favored, specified and used by universities, Fortune 500 companies, and the US Government
  • Adaptable to any size job
  • Proudly made in the USA
