• 201 Series Double Snake Tray® Cable Tray
1 1

201 Series Double Snake Tray® Cable Tray

201 Series Double Snake Tray® Cable Tray

These Snake Trays are the most flexible cable runway system, designed to support fiber optic cables and voice/telecommunication cables.  This double packet design provides a natural separation for both voice data cables and fiber cables.  Able to hang from a single point, these easy installation trays are the best and quickest solution for making cable paths.

$122.00
$122.00 $122.00
Sale Sold out

Part Number: CM-201-425D-8-EA

What's Special

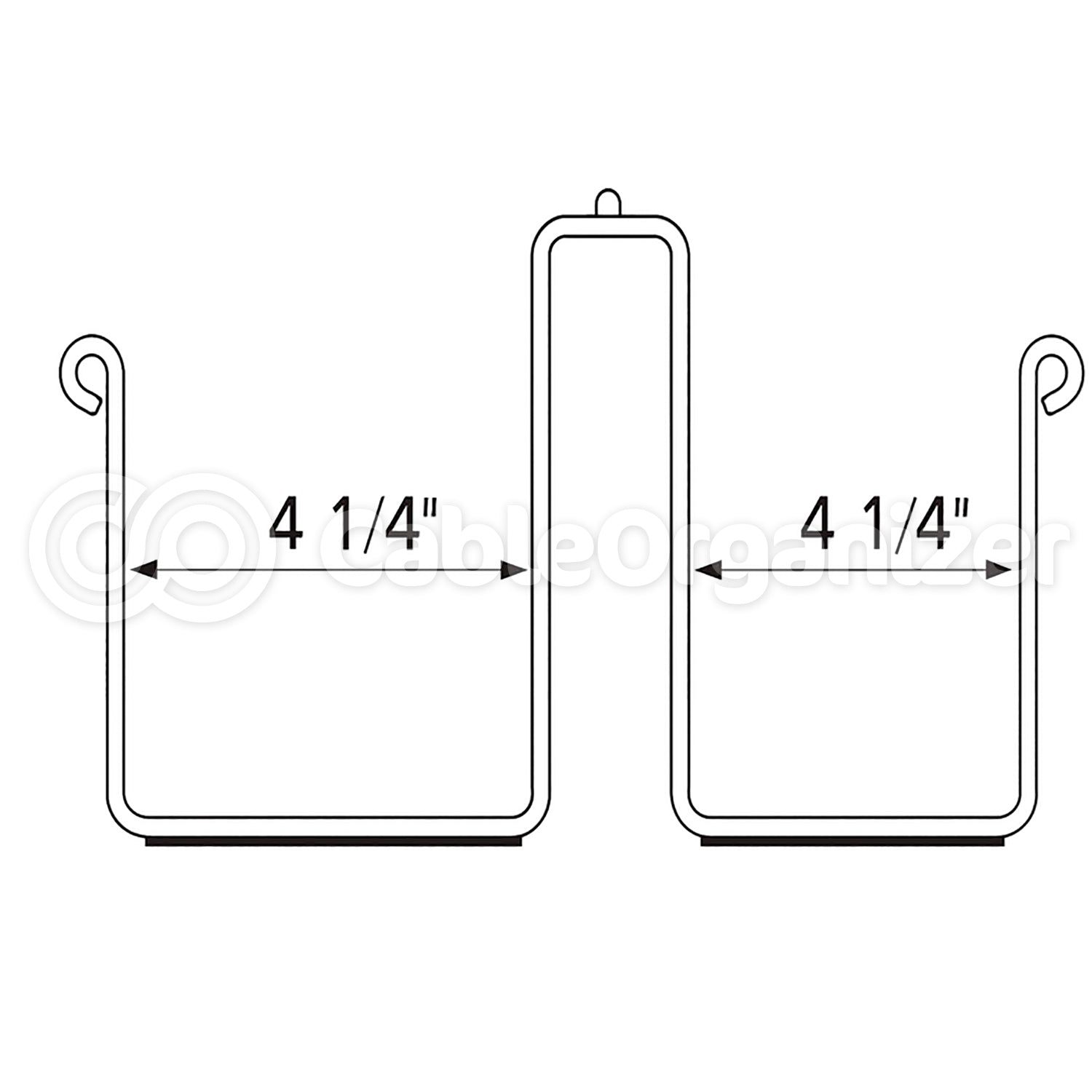

  • Double packet design providing a natural separation for both voice data cables and fiber cables.
  • The double Snake allows for 50 square inches of cable path holding up to 510 cables.
  • 25" OD per NEC Article 318-9(b) either below raised floors or overhead, mounted to walls or suspended from a ceiling.

Features

  • Favored, specified and used by universities, Fortune 500 companies, and the US Government.
  • The most flexible cable runway system, designed to support fiber optic cables and voice/telecommunication cables.
  • Easy on-site installation.
  • Proven savings in installation costs of 85%.
  • No tools needed to hand bend the cable tray in any direction.
  • No sharp edges – no injuries to the installer or cable.
  • Creates turns in 10 seconds versus 20 minutes with other methods.
  • 15 seconds to connect trays together versus 10 minutes with other methods.
  • Made of zinc plated (ASTM B633C2) cold rolled steel (ASTM A510)
  • Connect Snake Trays together with only one connector bolt.
  • Built in hanging hardware
  • Hangs from a single point
  • Mounting hardware is simple and can be used for either computer access floor or overhead installations.
  • Low labor cost when suspending tray from a single point.
  • Designed for cables to enter or exit at any point, in any direction.
  • Double pocket design
  • EIA/TIA and NEC Compliant
  • NFPA 708 Compliant
  • Trays nest together to lower freight costs
  • Ships from inventory within a day.
  • Proudly made in the USA

Specifications

201 Series Double Snake Tray Cable Tray
