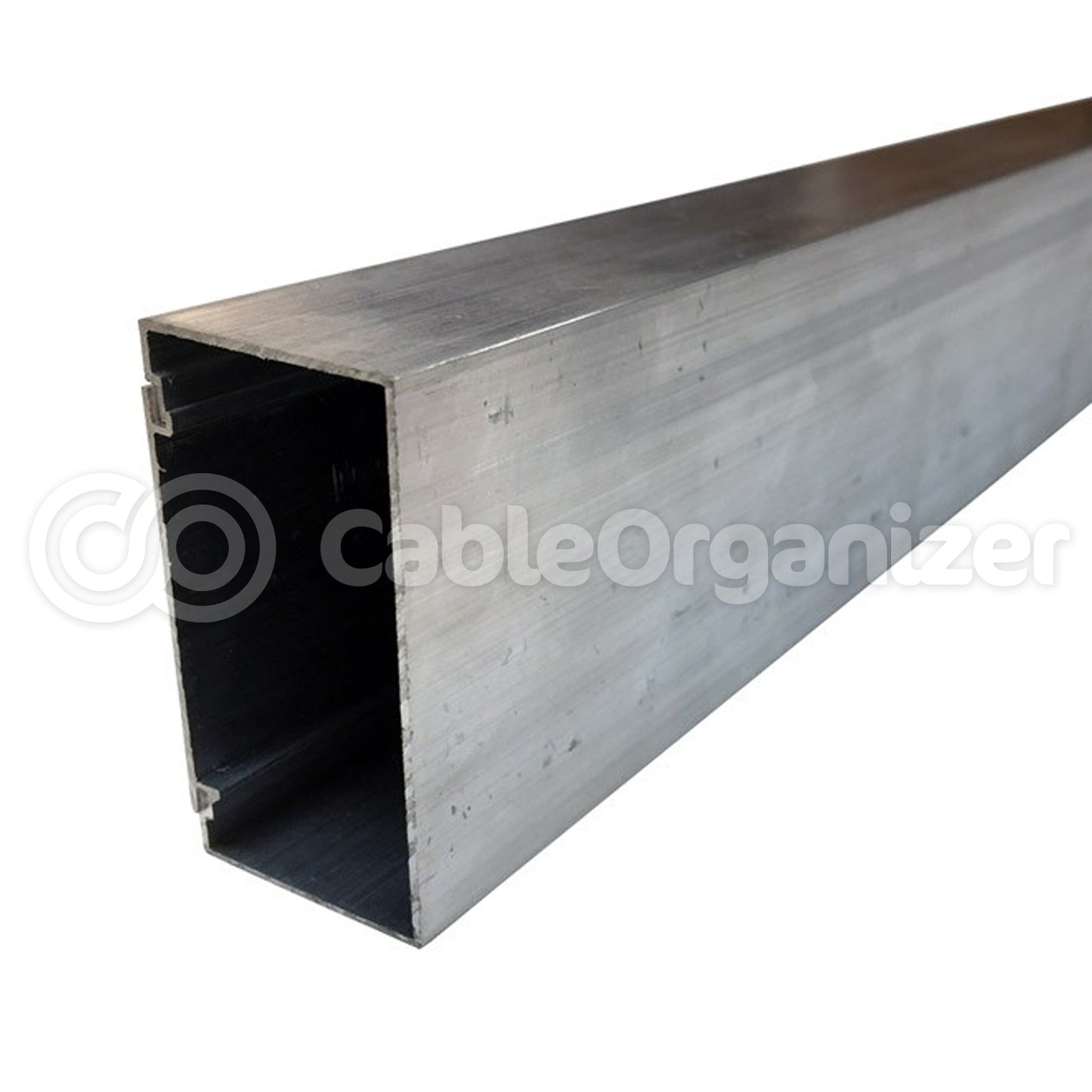

Aluminum Surface Raceway Systems AL2000 & AL2400 Series



SRAL2000B-5
Qty:
SRAL2400B-5
Qty:
SRAL2003
Qty:
SRAL2400-WC
Qty:
We Guarantee to Have the Best Price

What's special about aluminum raceways?

  • Easy to install
  • Low profile yet attractive appearance - perfect for hospitals and commercial spaces
  • Allows you to choose receptacle spacing
  • Backfeed fitting allows you to install over existing wall boxes
  • The customizable raceway system has a full range of fittings and accessories to fit every need
  • Has a satin anodized finished to prevent corrosion
  • Click for More Features
UL

Wiremold’s aluminum raceways provide a versatile solution for just about any application. The anodized 0.060” aluminum channel is suitable for both low voltage and power cords. They conceal and protect your power and data cables, yet allow you to attach prewired receptacles for your convenience.

*Raceway supports are necessary at a maximum of every 10FT.

AL2000 Series
Part #DescriptionLengthHeightWidthPrice
SRAL2000B-5AL2000 Series Base5FT1-1/8" (29mm)1-7/16" (37mm)
Qty:
Quick Ship
SRAL2000B-10AL2000 Series Base10FT1-1/8" (29mm)1-7/16" (37mm)
Qty:
Quick Ship
SRAL2000C-5AL2000 Series Cover5FT1-1/8" (29mm)1-7/16" (37mm)
Qty:
Quick Ship
View AL2000 Accessories
AL2400 Series
Part #DescriptionLengthHeightWidthPrice
SRAL2400B-5AL2400 Series Base5FT1-9/32" (33mm)2" (51mm)
Qty:
Quick Ship
SRAL2400B-10AL2400 Series Base10FT1-9/32" (33mm)2" (51mm)
Qty:
Quick Ship
SRAL2400C-5AL2400 Series Cover5 FT1-9/32" (33mm)2" (51mm)
Qty:
Quick Ship
View AL2400 Accessories
AL2000 Accessories
Part #ImageDescriptionDimensionsPrice/ Each
SRAL2003Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2003Supporting Clip- for mounting raceway (For use with No. 8 Flathead Screws)1-7/16" L
Qty:
Quick Ship
SRAL2000-WCAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2000-WCWire Clip- holds conductors in place in raceway(non-metallic)-
Qty:
Quick Ship
SRAL2001Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2001Coupling- for joining lengths of raceway1-5/8" L x 1-1/2" W
Qty:
Quick Ship
SRAL2006Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2006Cover Clip-for covering joints where base or cover adjoin1" D
Qty:
Manufacturer Direct
SRAL2009Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2009Ground Clamp- for UL grounding properties1-1/2"
Qty:
Quick Ship
SRAL2010-AAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2010-AEnd Fitting- use with 1/2" hub adapter1-3/8" W x 1" D
Qty:
Manufacturer Direct
SRAL2010-BAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2010-BBlank End- for putting a clean end on lengths of raceway1-3/8" W x 1" D
Qty:
Quick Ship
SRAL2051Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2051Box Adapter- for feeding raceway from an existing wall outlet4-1/2" L x 4-1/2" W
Qty:
Quick Ship
SRAL2011Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL201190 Degree Flat Elbow for right angle turn on the same surfaceA = 3"
B = 3"
C = 1-9/16"
Qty:
Manufacturer Direct
SRAL2015Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2015Tee- for branch connection of 2 runs of racewayA = 1-7/16"
B = 4"
C = 1-9/16"
Qty:
Quick Ship
SRAL2017Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2017Internal Elbow- for bending around internal cornersA
3"
Qty:
Manufacturer Direct
SRAL2018Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2018External Elbow- for bending around external cornersA = 1-7/8"
B = 3"
Qty:
Quick Ship
SRAL2038Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2038Round Fixture Box- for use in hanging fixtures4-13/16" x 1-3/8"
Qty:
Quick Ship
SRAL2040-AAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2040-AIn-Line Single Pole Switch- single pole 120V switch6" L
Qty:
Quick Ship
SRAL2043Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2043In-Line Receptacle- two 15A, 120V U ground factory wired receptacles6" L
Qty:
Manufacturer Direct
SRAL2043-IGAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2043-IGIn-Line Isolated Ground Receptacle- two 15A, 120V factory wired isolated ground orange receptacles6" L
Qty:
Quick Ship
SRAL2044Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2044Deep Device Box(Single Gang)- for receptacles and deep devices such as signal and alarm system4-5/8" L x 3-1/16" W x 2-1/4" D
Qty:
Manufacturer Direct
SRAL2044-2Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2044-2Deep Device Box(Double Gang)- for receptacles and deep devices such as signal and alarm systems4-5/8" L x 4-27/32" W x 2-1/2" D
Qty:
Manufacturer Direct
SRAL2047Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2047Shallow Switch and Receptacle Box(Single Gang)- for standard shallow switches and receptacles4-5/8" L x 3-1/16" W x 1-3/8 " D
Qty:
Manufacturer Direct
SRAL2047-2Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2047-2Shallow Switch and Receptacle Box(Double Gang)- for standard shallow switches and receptacles4-5/8" L x 4-27/32" W x 1-3/8" D
Qty:
Manufacturer Direct
AL2400 Accessories
Part #ImageDescriptionDimensionsPrice/ Each
SRAL2400-WCAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2400-WCWire Clip- holds conductors in place in raceway(non-metallic)-
Qty:
Quick Ship
SRAL2401Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2401Coupling- for joining lengths of raceway3" L x 1-3/4" W
Qty:
Quick Ship
SRAL2406Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2406Cover Clip-for covering joints where base or cover adjoin1"
Qty:
Quick Ship
SRAL2409Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2409Ground Clamp- for UL grounding properties3" x 1-3/4"
Qty:
Quick Ship
SRAL2410-B2Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2410-B2End Fitting- use with 1/2" hub adapter2" x 1-1/4"
Qty:
Quick Ship
SRAL2410-BAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2410-BBlank End- for putting a clean end on lengths of raceway2" x 1-1/4"
Qty:
Quick Ship
SRAL2451Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2451Box Adapter- for feeding raceway from an existing wall outlet4-1/2" L x 4-1/2" W
Qty:
Quick Ship
SRAL2411Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL241190 Degree Flat Elbow for right angle turn on the same surfaceA = 4"
B = 4"
C = 2"
Qty:
Quick Ship
SRAL2415Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2415Tee- for branch connection of 2 runs of racewayA = 4"
B = 6"
C = 2"
Qty:
Quick Ship
SRAL2416Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2416Cross- for cross connection of 2 runs of raceway6" x 6" x 2"
Qty:
Quick Ship
SRAL2417Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2417Internal Elbow- for bending around internal cornersA
4"
Qty:
Quick Ship
SRAL2418Aluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2418External Elbow- for bending around external cornersA = 3"
B = 5"
Qty:
Quick Ship
SRAL2446P-DAluminum Surface Raceway Systems AL2000 & AL2400 Series SRAL2446P-DDuplex Receptacle Cover Plate - for use in hanging fixtures6" L
Qty:
Quick Ship

The wide range of fittings allows you to make your surface raceway system fully customizable. You can add as many or as little receptacles as you need and space them for your needs. The option is also available to install single or double gang boxes and plates in both deep wall and shallow/standard wall mounts.



These surface raceways are ideal for use in schools, hospitals, offices, and laboratories to guide telecommunications and power cables close to each workstation.

  • Easy to install
  • Full range of fittings for every application
  • Low profile appearance
  • Allows you to choose receptacle spacing
  • Backfeed fitting allows you to install over existing wall boxes
  • UL 73943, UL 74243
  • Bases available in 5 and 10 foot lengths for versatility
  • Nominal thickness - 0.060" (1.5mm)
  • Aluminum, satin anodized finish




dimensional diagram of AL2000 raceway

AL2000
BASE & COVER

dimensional diagram for AL2400 raceway


AL2400
BASE & COVER

AL2000 INSTALLATION INSTRUCTIONS

installation diagram forAL raceway

Illustration is for showing product applications only

  1. Supply conductors may be led from 1/2" (12.7mm) KO in base, or through AL2010A End Fitting. This system is designed with capacity for additional lead or circuitry conductors.
  2. Attach base section to mounting surface with AL2006 Mounting Cover Clips, or by drilling 9/32" (7.1mm) holes in the base and use #8 flathead screws
  3. Connect circuit wires with connectors
  4. Additional multiple outlet sections or AL2000 Raceway sections may be attached at ends with AL2001 Coupling
  5. Close ends with Blank End Fitting (AL2010B), or with feed End Fittings (AL2010A)
  6. Snap in cover section
  7. In-line receptacle AL2043

    NOTE: To remove cover, insert screwdriver into groove, push down, and pry off.

    IMPORTANT: All mounting methods must result in a flush interior surface. Special outlet assemblies manufactured to specifications. Consult factory.

Wire Fill Capacities for Power

CABLE TYPE WIRE SIZE
THHN/THWN
O.D. NUMBER OF CONDUCTORS (40% FILL)
inches (mm) AL2000 AL2400
POWER WIRING WITHOUT DEVICES 8 AWG 0.216 (5.5) 12 18
10 AWG 0.166 (4.2) 24 37
12 AWG 0.130 (3.3) 38 58
14 AWG 0.111 (2.8) 51 78

POWER WIRING WITH DEVICES (PLUGMOLD) 8 AWG 0.218 (5.5) - 4
10 AWG 0.153 (3.9) 3 8
12 AWG 0.122 (3.1) 6 12
14 AWG 0.105 (2.7) 8 16



AL2400

CABLE/WIRE SIZE OD 20% FILL* 40% FILL*
inches (mm)
UNSHELDED 4-pair, 24 AWG, Cat. 5 0.220 (5.6) 8 17
TWISTED PAIR 4-pair, 24 AWG, Cat. 3 0.190 (4.8) 11 23
4-pair, 24 AWG, Cat. 6 0.250 (6.3) 6 13

TELEPHONE 2-pair, 24 AWG 0.140 (3.6) 22 44
  3-pair, 24 AWG 0.150 (3.8) 19 38
  4-pair, 24 AWG 0.190 (4.8) 11 24
  25-pair, 24 AWG 0.410 (10.4) 2 5

COAXIAL RG58/U 0.195 (5.0) 11 22
  RG59/U 0.242 (6.1) 7 14
  RG62/U 0.242 (6.1) 7 14
  RG6/U 0.270 (6.9) 5 11

TWINAXIAL 100 Ohm 0.330 (8.4) 3 7

SHIELDED Type 1 0.390 (9.9) 2 5
TWISTED PAIR Type2 0.465 (11.8) 2 4
Type 3 0.245 (6.2) 7 14

NOTE:
* 20% cable fill is calculated to approximate reduction in cable capacity due to connectors mounted within raceway and fittings that may restrict cross sectional area.
** 40% cable fill is the maximum designed cable fill base on a proposed revision to TIA/EIA 569-A.
