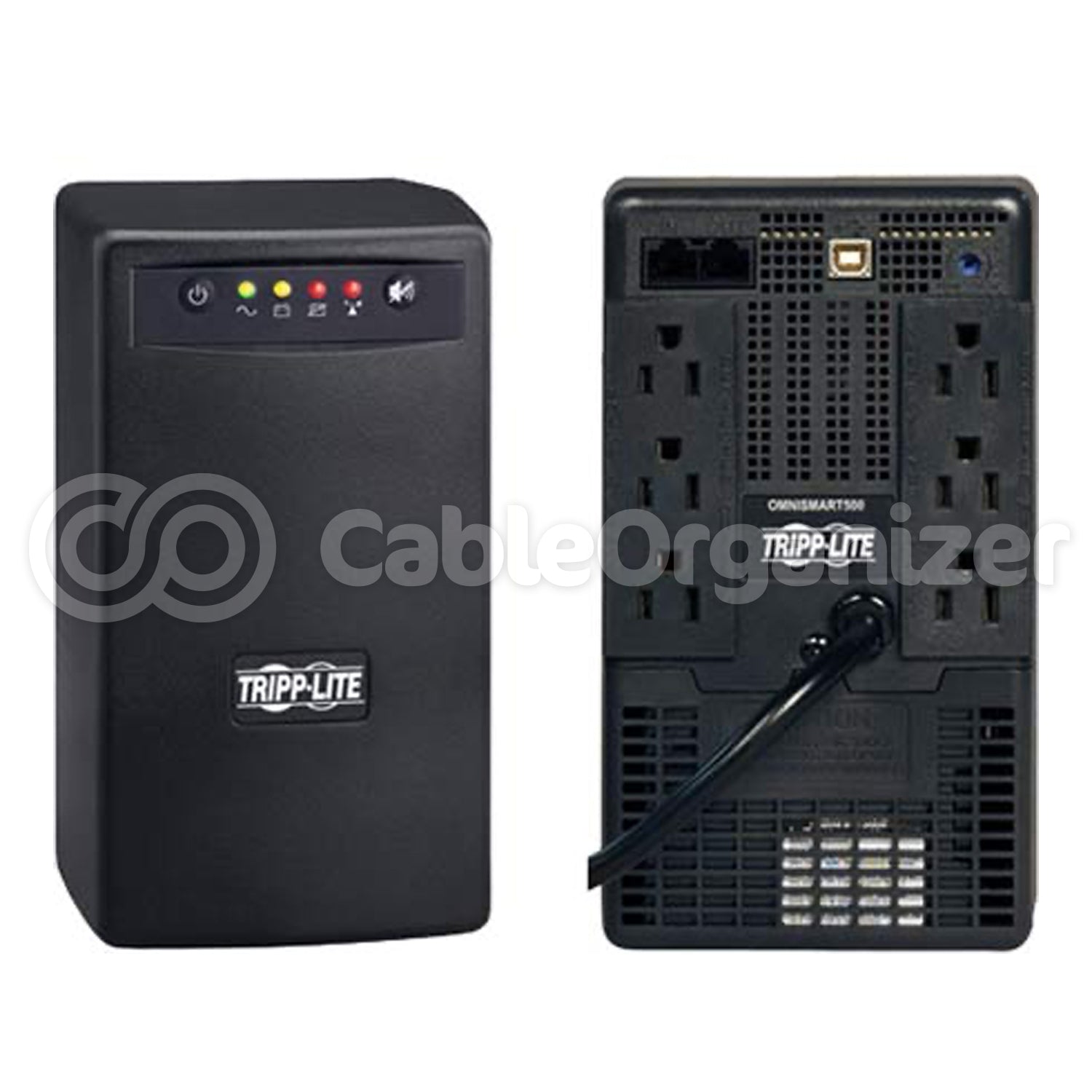

Tripp Lite Omni Smart UPS Systems

Tripp Lite Omni Smart UPS Systems

Specifically Designed to Accommodate Your Work Station's Needs

Tripp Lite Omni Smart UPS Systems have workstation optimized features which include USB port and telephone and DSL line surge suppression, voltage regulation, and long-lasting battery support.

Regular price $194.14
Regular price $194.14 Sale price $194.14
Sale Sold out

Part Number: TL-OMNISMART500-EA

What's Special

  • Equipped with AVR/line-interactive to offer voltage regulation, surge suppression and long-lasting battery support.
  • Protects your computers and electronic equipment from downtime, damage and data loss that can occur from unexpected power problems such as brownouts, blackouts, surges and line noise.
  • In addition to standard surge suppression, provides telephone, DSL and ethernet line surge protection.

Features

  • Supports hot-swap battery replacement so you can keep working while you exchange the battery.
  • Works with 120V/60Hz applications for USA, Canada, Mexico and more.
  • HID-compliant so that your computer can communicate with your software and allow auto shutdown.
  • Free PowerAlert software available from Tripplite.com.
  • The unit's ability to work indefinitely through low voltage (brownout) conditions means that you can continue working without interruption.
  • 2-year manufacturer's warranty
  • $200,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only)

Applications:

  • Entry-level PCs
  • Networked workstations
  • Point-of-sale equipment
  • Small business phone systems
  • Audio/video equipment
  • Home theater systems
  • Sensitive electronics

OMNISMART300PNP

  • Maintains 120V nominal output over an input range of 75 to 147V
  • Supports entry-level PC systems for up to 30 min. during power failures to enable a safe system shutdown.
  • Input: NEMA 5-15P (120V 15A)
  • Output: 3 battery-supported NEMA 5-15R (120V) AC outlets.
  • Supports a full load of 300VA/180W for 10.5 min. and a half load of 150VA/90W for 27 min.
  • Attractive black tower configuration.
  • Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status
  • USB and telephone interconnection cables and instruction manual with warranty information included.

OMNISMART500

  • Maintains 120V nominal output over an input range of 75 to 147V
  • Supports entry level PC systems for up to 30 min. during power failures to enable a safe system shutdown.
  • Input: NEMA 5-15P (120V 15A)
  • Output: 6 NEMA 5-15R (120V)(Includes 3 battery supported outlets, plus 3 additional surge suppression-only).
  • Maximum load of 500VA/300 watts for 4 min. and a half load of 250VA/150 watts for 15 min.
  • Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status.
  • Short circuit protection during AC and battery modes.
  • PowerAlert software, cabling, and instruction manual with warranty information included.

OMNISMART700

  • Maintains 120V nominal output over an input range of 75 to 147V
  • Supports entry-level PC systems for up to 45 min. during power failures to enable safe system shutdown.
  • Supports a full load of 700VA/450W for 4 min. and a half load of 350VA/225W for 17 min.
  • Includes 6 NEMA 5-15R outlets: 3 battery-supported and 3 surge suppression-only outlets, and a 6' AC line cord with NEMA 5-15P plug.
  • DB9 port and HID-compliant USB port enable unattended shutdown without data loss during extended power failures.
  • Built-in dataline suppression jacks protect a single dialup tel/DSL line or network ethernet line connection.
  • Built-in audible alarm and 4 front panel LEDs indicate UPS system and line power status.
  • DB9, USB and telephone interconnection cables and instruction manual with warranty information included.

OMNISMART1050

  • Maintains 120V nominal output over an input range of 75 to 147V
  • Supports a single entry level PC system for up to 60 min. during power failures to enable a safe system shutdown.
  • Input: NEMA 5-15P (120V 15A)
  • Output: 6 battery supported NEMA 5-15R (120V) outlets, 6' AC line cord.
  • Maximum load of 1050VA for 7 min. and a half load of 525VA for 23 min.
  • Upright tower configuration uses only 51 square inches of floor or desktop space.
  • Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and overload status.
  • USB and telephone interconnection cables and instruction manual with warranty information included.

OMNISMART1400

Maintains 120V nominal output over an input range of 75 to 147V

Supports a single entry level PC system for up to 75 min. during power failures to enable a safe system shutdown.

Input: NEMA 5-15P (120V 15A)

Output: 6 battery supported NEMA 5-15R (120V) outlets

Supports a maximum load of 1400VA for 8 min. and half load of 700VA for 24 min.

Upright tower configuration uses only 66 square inches of floor or desktop space

USB interface supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment.

Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and overload status.

USB and telephone interconnection cables and instruction manual with warranty information included.
