Tripp Lite Full Isolation Medical Grade Series UPS Systems

• Equipped with a built-in faraday-shielded isolation transformer to reduce leaks and limit line noise.
• UL 60601-1 listed for use in hospitals and healthcare facilities, giving you the peace of mind that critical equipment will maintain power during power outages and emergencies.
• AVR keeps equipment operating smoothly during low voltage periods or brownouts without draining the battery.

OmniSmart Full Isolation UPS Systems are ideal for medical applications, and allow you to install a single battery backup solution to provide all the benefits of a dedicated AC input line without the expense and inconvenience of running special circuits and upgrading site wiring.

Built in communication ports

Includes (4) high quality protected hospital-grade outlets and a 6' cord

Extended runtime capability on select models

Full-isolation UPS system is a key feature when dealing with sensitive equipment and operations.

Consistent battery power will keep systems up and running through short blackouts, and give you time to safely shut down during longer ones.

Each AC outlet prevents damage from lightning and surges

Low 100µA leakage of current from connected healthcare equipment.

Each of these models feature a hospital-grade plug and receptacles designed for use both inside and outside of patient-care areas.

Resistant to electrostatic discharge

Equipped with battery replacement door and back panel grounding lug

Provides surge protection, line isolation and EMI/RFI noise filtering

Complete remote monitoring cabling included

PowerAlert UPS management software available via free download

2-year manufacturer's warranty

Applications:

Patient point-of-care solutions

Tele-medicine

Nurse's stations

Wireless communications systems

Electronic prescribing applications

Medical imaging

Mission critical equipment

*Not recommended for life support applications

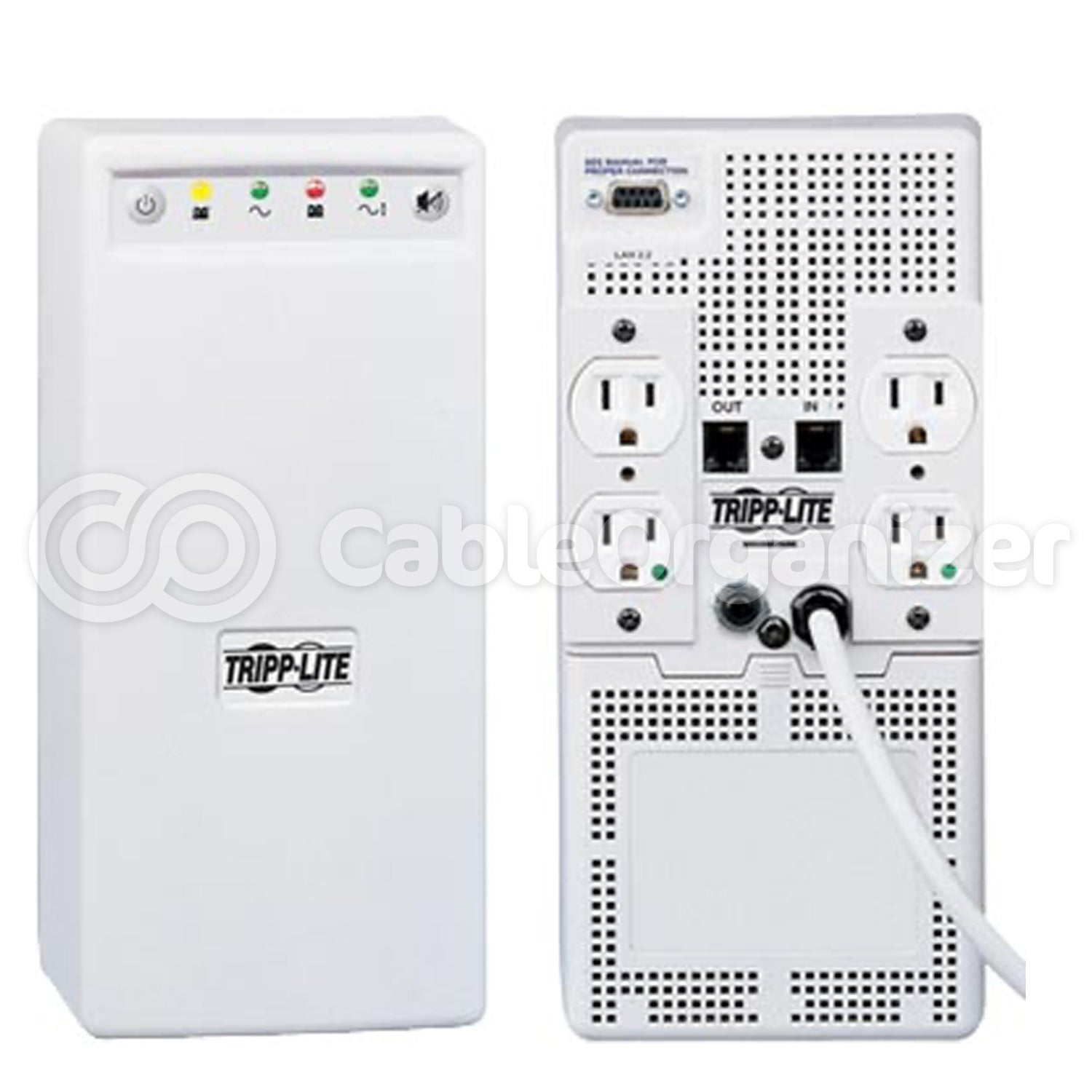

OMNISMART350HG Omni Smart UPS System

Supports loads up to 330VA/225W and maintains sine-wave 120V nominal output over an input range of 83 to 132V

Input: Hospital-grade NEMA 5-15P (120V 15A)

Output: 4 Hospital-grade NEMA 5-15R (120V)

2-line phone suppression for TEL/DSL line protection

46 minutes half load runtime (with 165VA load)

18 minutes full load runtime (with 330VA load)

(1) DB9 serial port for network interface

(4) diagnostic LEDs

AC present

On battery

Voltage correction

Battery low/replace

Serial cable for remote monitoring, warranty information, and instruction manual included.

SMART700HG SmartPro UPS System

Supports loads up to 700VA/450 watts and maintains 120V nominal output over an input range of 82 to 142V

Input: NEMA 5-15P (120V 15A)

Output: 4 NEMA 5-15R (120V)

Line-interactive voltage regulation corrects brownouts and over voltages from 81 to 143 volts back to usable 120V output levels, without using battery power.

42 minutes half load runtime (with 350VA load)

18 minutes full load runtime (with 700VA load)

5 diagnostic LEDs

AC present

On battery

Voltage correction

Overload

Battery low/replace

(1) USB and (1) DB9 monitoring cable, warranty information, and instruction manual included

SMART1200XLHG SmartPro XL Medical Grade UPS System

Supports loads up to 1000VA/750W and maintains 120V nominal output over an input range of 82 to 142V

Input: Hospital-grade NEMA 5-15P (120V 15A)

Output: 4 Hospital-grade NEMA 5-15R (120V)

Expandable runtime is available with the addition of one or more external battery packs (BP36V15-2U limit 1 or BP36V42-3U multi-pack compatible).

28 min. half-load runtime (500VA/375W)

10 min. full load runtime (1000VA/750W)

Equipped with USB and DB9 communication ports

5 diagnostic LEDs

AC present

On battery

Voltage correction

Overload

Battery low/replace

PowerAlert Software and cabling, warranty information, and instruction manual included
