STI Firestop Sleeve Kit - Split 1, 2, and 4 inch Ready™

STI Firestop Sleeve Kit - Split 1, 2, and 4 inch Ready™

Out-of-the-Box Firestop Sleeve for Use Around Existing Through-Wall Cable Penetrations

This STI Firestop Cable Sleeve Kit is the product of choice when working with existing through-wall cable penetrations in cramped spaces or on a ladder, as it's only half the weight of most competing threaded products. Split sleeves are designed with a split pathway and come with wall plates which allow them to be implemented around existing cable bundles. The smooth finished rolled lip eliminates the need for conduit bushings.

$138.00
$138.00 $138.00
Sale Sold out

Part Number: STI-FSR100-EA

Certifications
  • UL Classified

What's Special

  • Safety compliant and fire rated up to 4 hours
  • A cost effective way to run existing cabling bundles through walls when installed with the included classified firestop cable sleeve.
  • Used to protect and support cables in non-rated and rated construction.
  • Unique, original design created specifically for use with concrete floors, concrete walls, concrete black walls, and gypsum board/stud wall assemblies up to 10" thick.

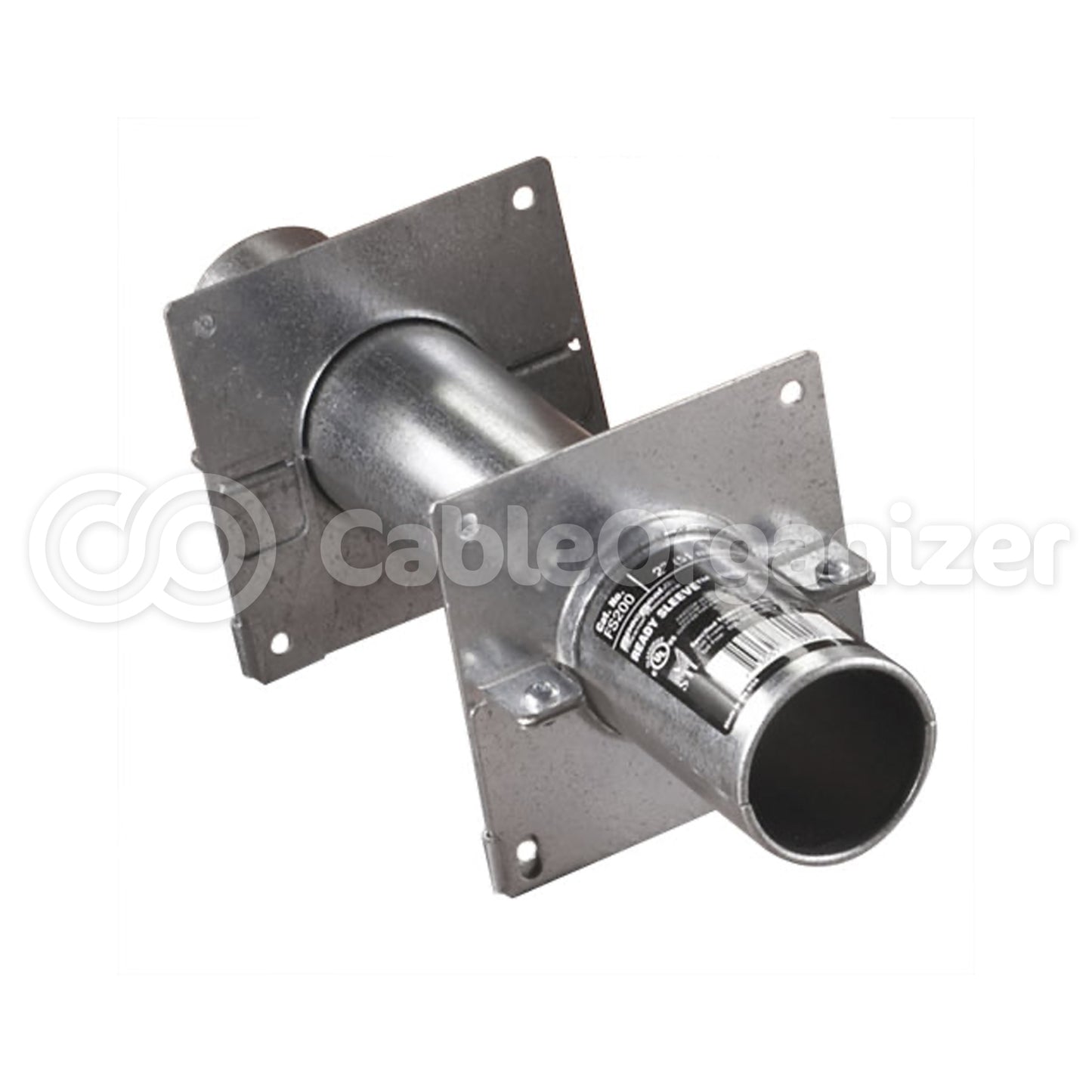

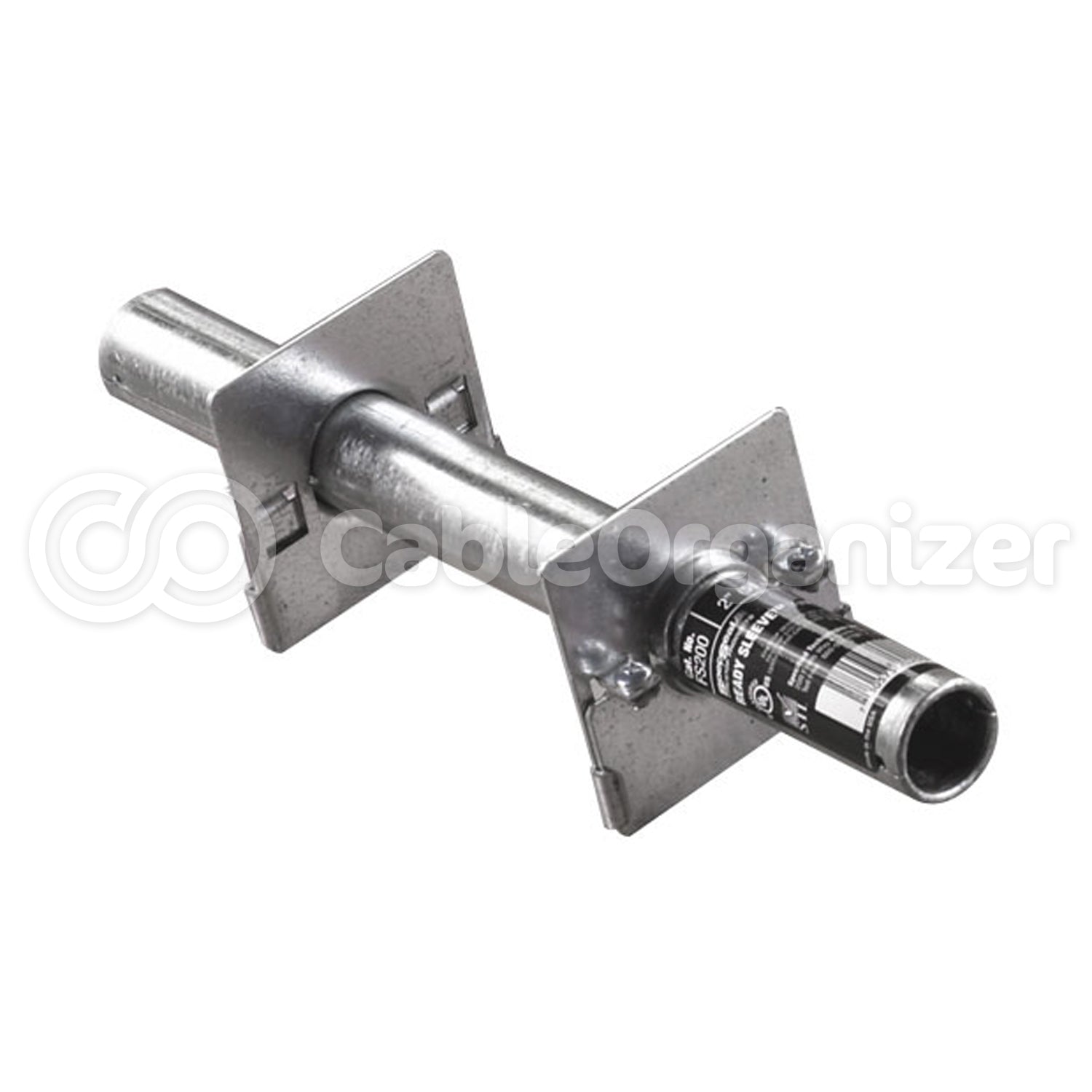

  • Available in 1 inch (FSR100), 2 inch (FSR200), & 4 inch (FSR400) models

Features

  • Sleeves and wall are labeled to make inspection easy
  • Mounting holes in the wall plates secure the sleeve in openings that perhaps are big.
  • Incorporates a built in bushing, which ensures that cable jacketing is safe from damage and allows for smooth cable entry and pulling.
  • Easily put together: just clamp the sleeve and secure it within the wall.

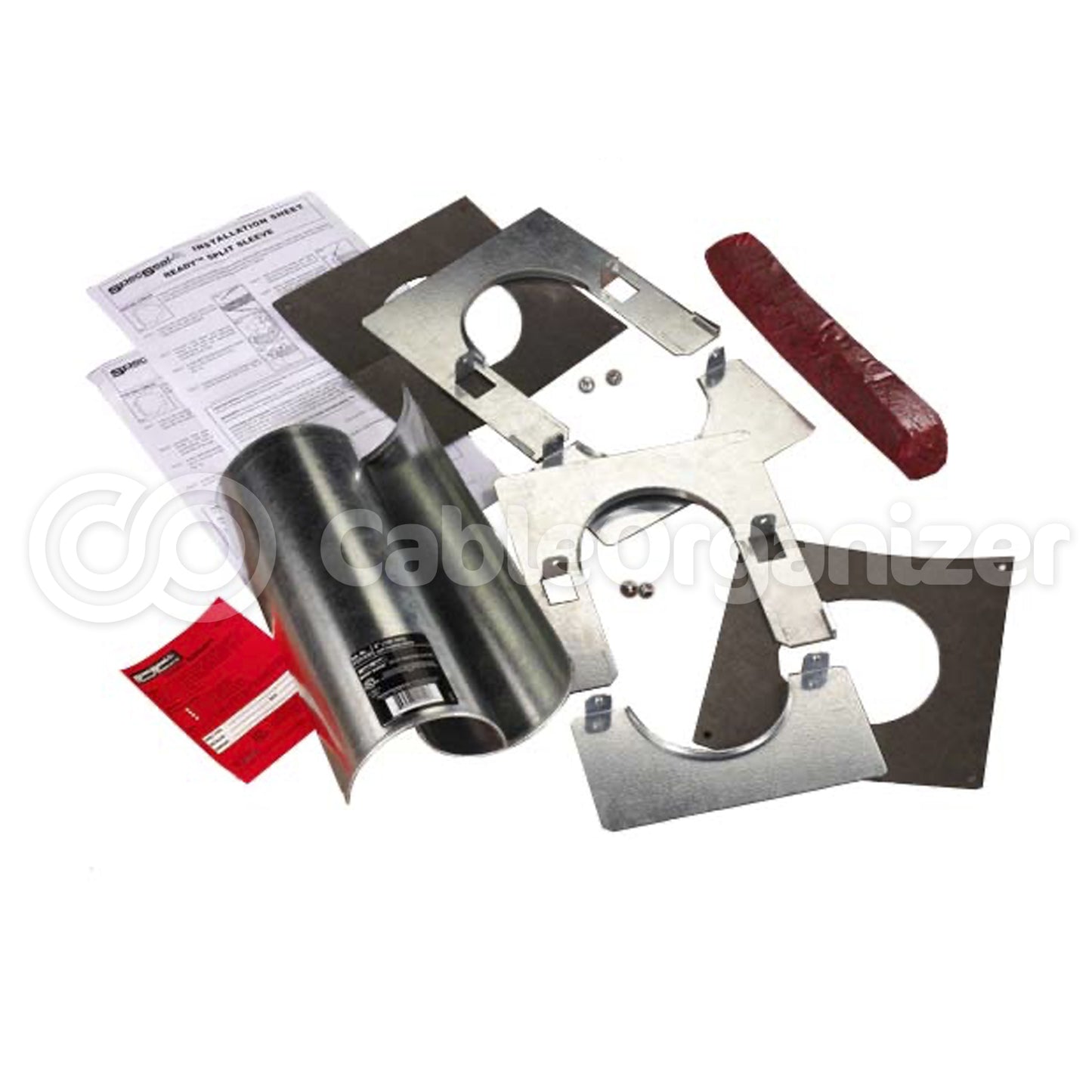

  • Included in the kit are external firestop gaskets and sufficient SpecSeal® Firestop putty to seal both ends of the installed sleeve.
  • Perfect for the times that all your data, video, communication, power, and control cabling must be installed through sleeves that penetrate fire resistance rated barriers.
  • Convenient split sleeve design allows for installation after cables have been run through the walls, and accommodates present cable bundle diameter as well as anticipated growth.
  • ANSI/UL 1479, ASTM E814 rated F up to 4 hours for use with over-sized openings. 2003 IBC section 712.2 compliant
  • Applications include common constructions: concrete floors, concrete walls, concrete block walls, and gypsum board/ stud wall assemblies up to 10" (250mm) thick with hourly ratings up to 4 hours. Compatible with EMT Conduit accessories.
  • One year manufacturer warranty

Specifications

STI Firestop Sleeve Kit Split 1 2 and 4 inch Ready
