Silicone Flex Glass - Grade A
Silicone Flex Glass - Grade A

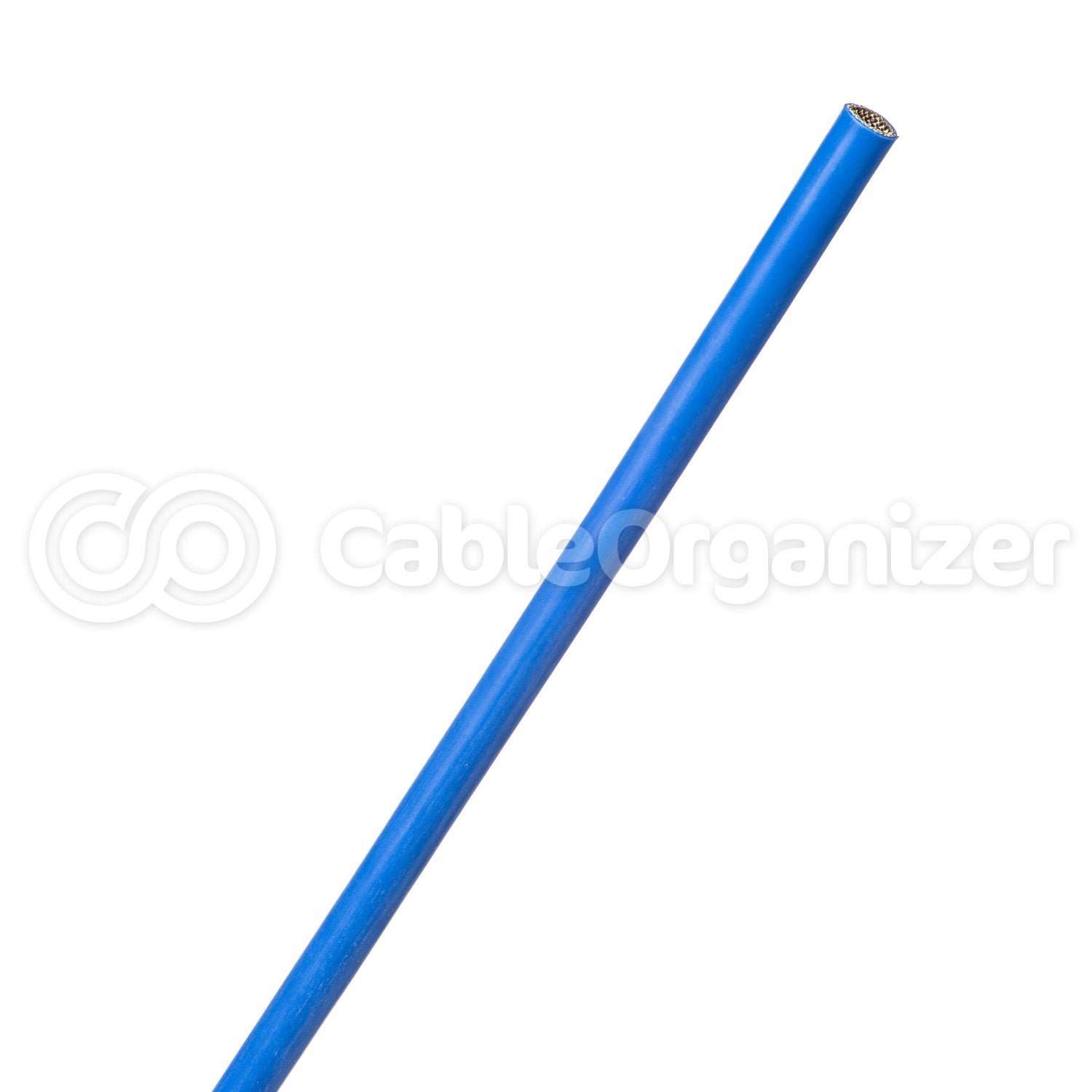

Silicone Rubber Coating Over An Insulating Fiberglass Sleeve
Silicone Flex Glass® (SG) sleeving is engineered with a silicone rubber coating over an insulating fiberglass sleeve. SG is very abrasion resistant and is ideal in heavy duty applications that require outstanding mechanical and electrical properties. The mechanical properties and high dielectric strength of SG make it the first choice in applications such as transformer lead protection, motor coil leads, component isolation, and power supply wiring. It has a high tear strength, slight expandability for easy installation, excellent flex life and resistance to fatigue.
Regular price
$29.48
Regular price
$29.48
Sale price
$29.48
Unit price
/
per
Part Number: SGAG.00BL-10
Couldn't load pickup availability
Certifications
What's Special
What's Special
- Rated to 392°F Class H (200°C)
- Cut & Abrasion Resistant
- Grade A (7,000 V) Mil-I-3190/6
- Resists Acids, Alkalis, Organic Solvents, & Alphatic Hydrocarbons
Features
Features
- Class: Class H Rated (392°F/200°C)
- Grade: Grade A (8,000 V)
- Material: Silicone Coated Fiberglass
- Operating Temp: –103°F to 428°F (-75°C to 220°C)
- Colors: White, Black, Red, Yellow, Blue, and Natural
- Recommended Cutting Tools: Scissors
