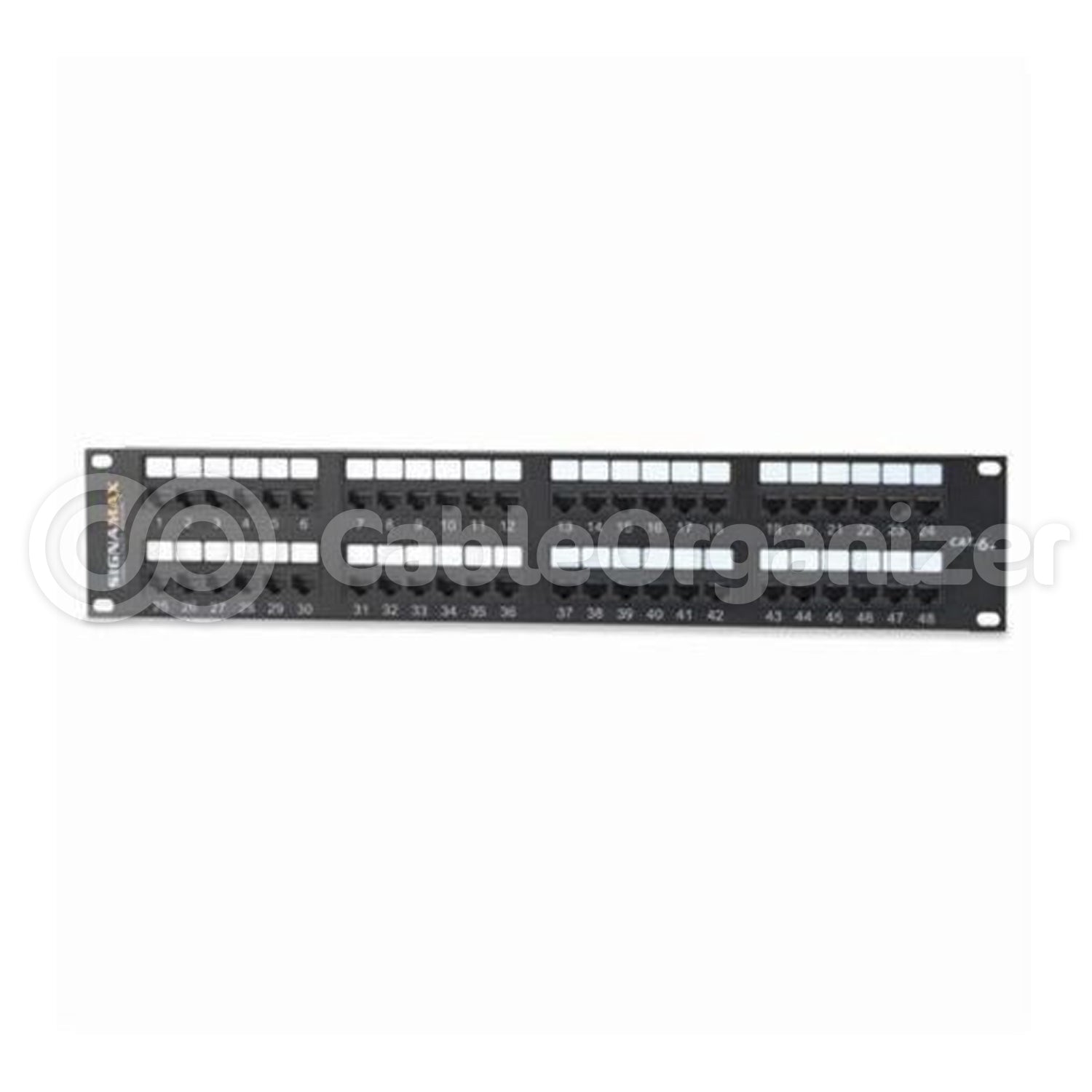

Signamax® High Density Modular UTP Patch Panels

• Preloaded, high-density CAT 5e and CAT6 patch panels available in either a 24 or 48-port configuration to offer installers a greater range of flexibility in limited-space applications.
• Modular design comes with shielded/unshielded couplers that can be removed, so patch panel can be populated with your choice of keystone jacks or couplers to create a unique panel scheme tailored to your specific requirements.
• Feed-Thru connectors utilize a straight-through wiring scheme to enable easier, time-saving terminations while reducing strain on the conductors.

Includes a snap-in rear cable management bar to improve organization and cable strain relief.

Shielded or unshielded couplers are specially engineered to provide enhanced plug to jack connection integrity, while protecting against damage from improperly inserting 4 or 6 position connectors.

Each coupler has been rated to withstand at least 750 connector insertions to ensure the highest level of connectivity and system reliability.

Constructed from high-quality steel to provided maximum strength and durability for fast-paced environments.

Features a front labeling area and individually numbered ports for quick and easy identification.

UL 94V-0 fire rated

UL listed

FCC rated

IEC and EN compliant

Exceeds ANSI/TIA/EIA specifications

IEEE compliant
