Shrinkflex 2:1 Polyolefin

Shrinkflex 2:1 Polyolefin

Shrinks to 1/2 Its Original Diameter

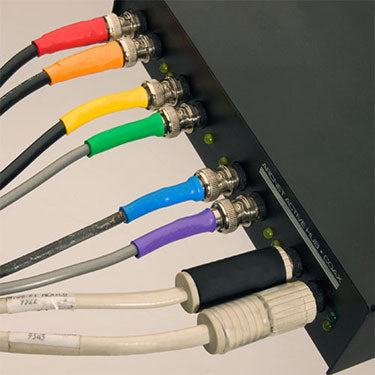

Heatshrink tubing is the ideal way to create a tight, professional finish on any wire, hose or cable management project. Once shrunk, the tubing will hold its reduced state, even in elevated temperatures. Typical applications for the heatshrink tube include: electrical insulation, termination, splicing, cable bundling, color coding, strain relief, wire marking, identification, mechanical protection, corrosion protection, abrasion protection and moisture and weather sealing.

  • RoHS Compliant
  • CSA
  • UL Recognized Component Mark
  • Passes UL VW-1 Flame Test
$0.66
$0.66 $0.66
Sale Sold out
Black

Part Number: H2N0.13BK-1

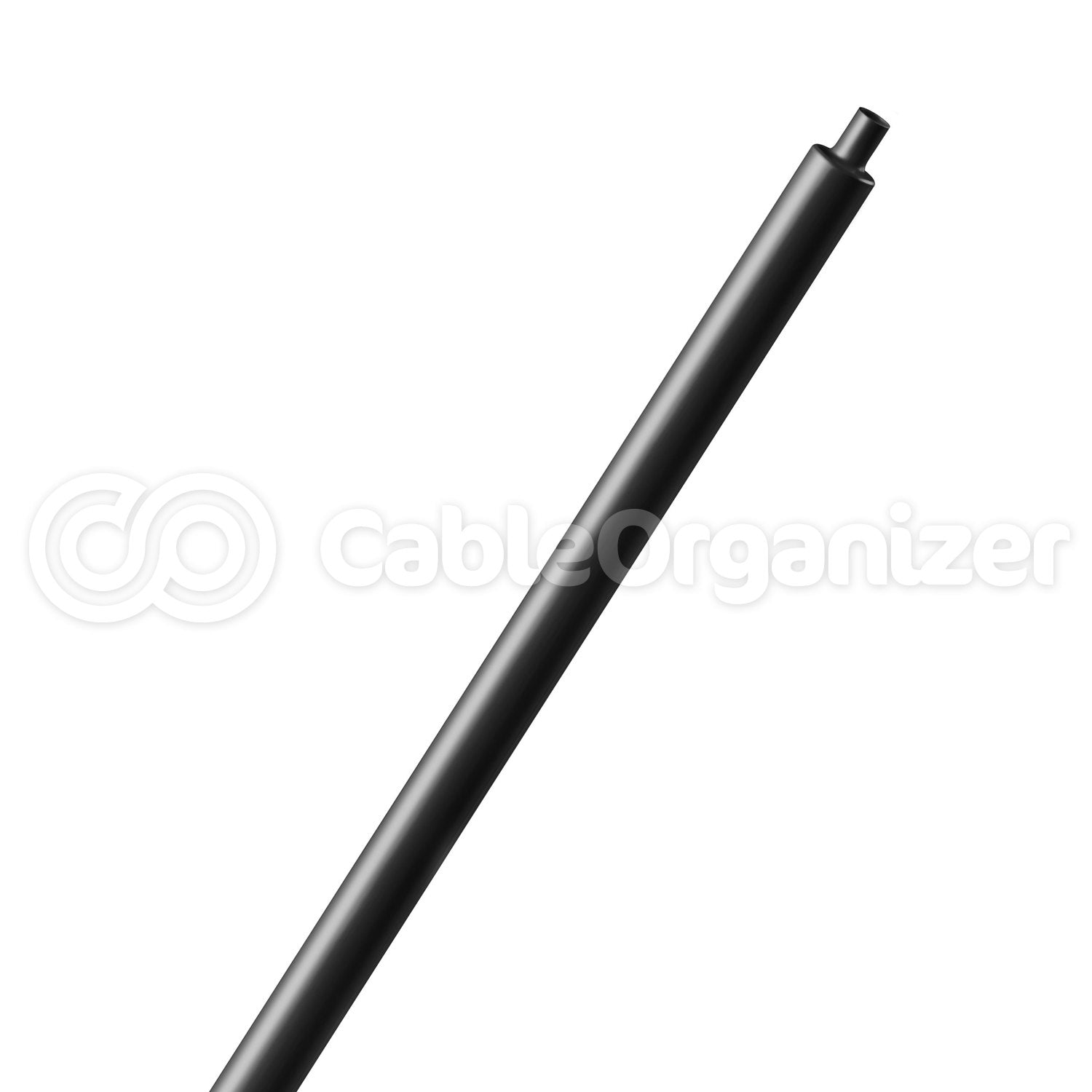

Name: Shrinkflex® Polyolefin Heatshrink Tubing - 2:1 - 1/8" - Black - 1 ft cuts

$0.66
$0.66 $0.66
Sale Sold out

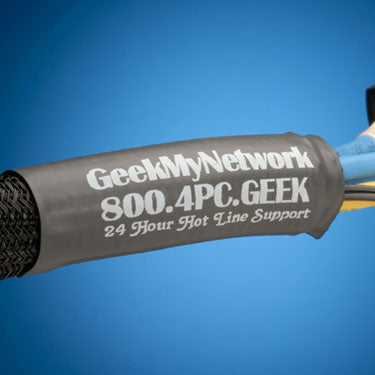

Need Your Heatshrink Printed?
Customize Your Heatshrink →

  • SHRINK TEMP: 194°F (90°C)

  • General purpose heatshrink is the economical solution for everyday heatshrink applications.

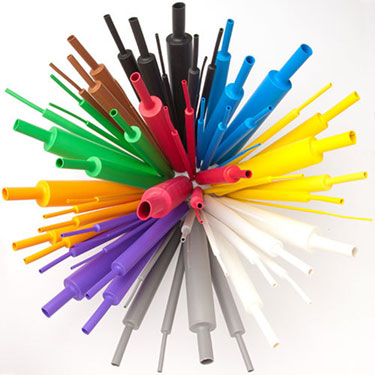

  • These products are available in a variety of different shrink ratios and colors for ultimate customization.
  • Shrinks to 1/2 of the original diameter to conform to oddly shaped objects, and provides secure termination of wire loom / braided sleeving projects.

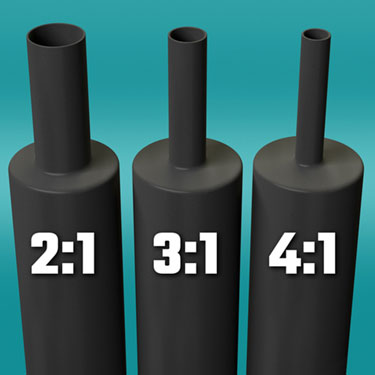

What Does Shrink Ratio (2:1, 3:1, Etc..) Mean?

The shrink ratio is the approximate maximum amount that heatshrink tubing will shrink relative to the unshrunk diameter. For example, a piece of 3/4" heatshrink tubing with a 3:1 shrink ratio will shrink down to a maximum diameter of approximately 1/4" when fully shrunk. All heatshrink tubing on our site is specified in it's UNSHRUNK diameter, so consider the shrink ratio and the unshrunk diameter when ordering heatshrink tubing. Heatshrink tubing with a larger shrink ratio will be more forgiving when fitting the tubing over plugs or connectors, but will have a bit thicker wall thickness and slightly less flexibility when shrunk then a lower ratio product.

  • Flammability Rating: UL-224 VW-1
  • Recommended Cutting: Scissor
  • Colors: 11
  • Minimum Continuous Temp: -67 ºF / -55 ºC
  • Maximum Continuous Temp: 275 ºF / 135 ºC
  • Melt Temp: 392 ºF / 200 ºC

Polyolefin:This is the most commonly used heat shrink material and works for most heat shrink applications. Polyolefin comes in a variety of colors, sizes, shrink ratios, and has an operating temperature of -67° F to +275° F. Keep in mind, Polyolefin has a low tolerance for UV resistance compared to other shrink tubing.

H2N 2 to 1 Polyolefin Heatshrink

Find Your Shrinkflex 2:1 Polyolefin

Loading variants… 0 loaded

# Variant ID Image Part # Nominal Diameter Color Length Shrink Diameter Range Price (Each) Quantity
