RG59/U Coaxial Cable - PVC or Plenum

RG59/U Coaxial Cable - PVC or Plenum

CableOrganizer.com offers the most common type of cable used to carry video signals: RG-59/U type 75 Ω coaxial cable. RG-59/U is used for low power and RF signal connections like antennas, cable television, satellite and surveillance systems installations. The main requirements for video cable are adequate shield and proper impedance (75 Ω). Our quality made RG-59 cable meets these requirements and it is utilized to carry video signals including composite video, S-video, RGB, component video, etc.

$168.00
$168.00 $168.00
Sale Sold out
White

Part Number: HTBC-RG59/U-95-1000FT-WT-EA


Name: RG59/U 95% Copper PVC Coaxial Cable 1000FT

$168.00
$168.00 $168.00
Sale Sold out
  • Great for CATV, satellite, and surveillance system installations.
  • 20 AWG copper center conductor.
  • 95% bare copper shield (less resistance, more flexible cable construction).
  • Foam polyethylene dialectic
  • CM rated PVC jacket

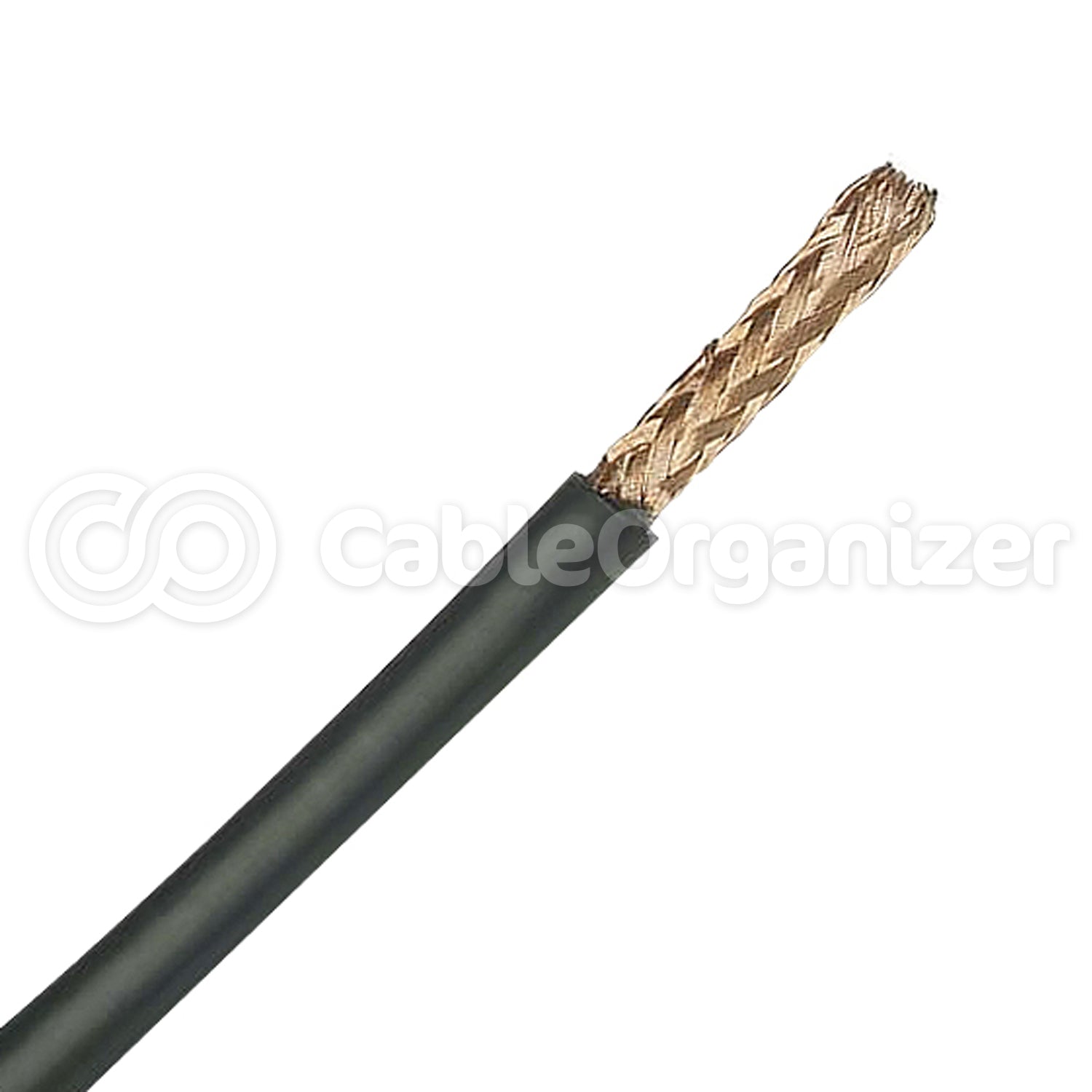

Since RG-59 cables have higher attenuation characteristics than RG6 cables, they are best used for installations for transmission applications from 750 to 1000 feet. CableOrganizer.com's RG-59/U cable has a 20 AWG copper center conductor, a foam polyethylene dielectric insulation, 95% copper braid with PVC coated jacket. This meets industry standards of 75 Ω and all our RG59 cables are UL listed for UL 1655, UL 13, UL 444, UL 1424, & UL 1581 and CM rated for flammability.

  • PVC available in 500 and 1000 foot lengths in spools or pull boxes in Black or White.
    - Plenum available only in 1000 foot spools of white.

Note: Plenum is a fire code rating only and is required for certain installations. Its does not enhance transmission performance.
