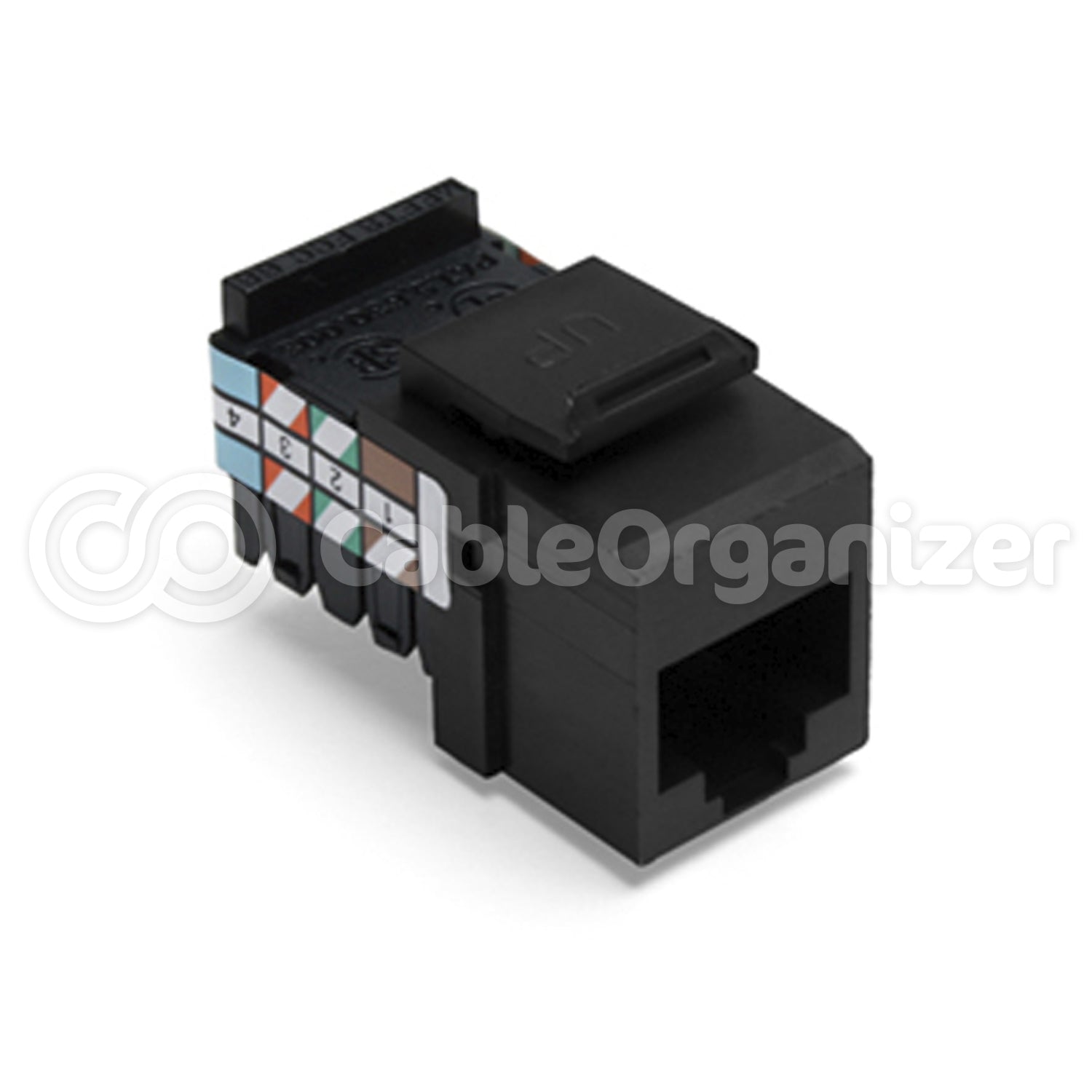

QuickPort® Snap-In Connectors - USOC and Voice Grade
QuickPort® Snap-In Connectors - USOC and Voice Grade
Use these modular connectors for all voice grade cabling applications. Leviton QuickPort connectors snap into the entire line of Leviton QuickPort products including workstation housings, multimedia outlet system, Decora® inserts, patch panels and patch blocks. Fire retardant plastic housing is high impact with spring wire contacts that are of the highest quality phosphor bronze, plated with 50 micro inches of gold over 100 micro inches of nickel for the lowest in contact resistance and maximum durability. The connector 110 IDC contacts are solder plated phosphor bronze.
Part Number: LE-41108-RE8-EA
Couldn't load pickup availability
Certifications
What's Special
What's Special
- Connectors meet or exceed all applicable standards including TIA/EIA 568A-B, UL 940-V listed, CSA Certified, NEC Article 800 Compliant, FCC Part 68 Compliant.
- Individual port configurability for specification flexibility.
- The one-piece design is narrow enough to allow for high port density in a small area.
Features
Features
Available in 6 or 8 Conductor
Connectors meet or exceed all applicable standards including TIA/EIA 568A-B, UL 940-V listed, CSA Certified, NEC Article 800 Compliant, FCC Part 68 Compliant
The connector fits all other installed telecommunications wallplates, outlets and field configurable patch panels and patch blocks
Individual port configurability for specification flexibility
The one-piece design is narrow enough to allow for high port density in a small area
Voice grade and USOC wire configuration labels included
Save installation time with this connector because it has an exclusive cutting ledge directly adjacent to the 110-style termination against which the wires can be terminated and cut in one simple step
Designed for cable termination using a 110 punch down tool
Connector wiring codes are universal and accommodates color codes for T568A and T568B wiring schemes
Detailed installation instructions included in the package
1 Year Limited Warranty
Specifications
