Prado Unifit Outlets

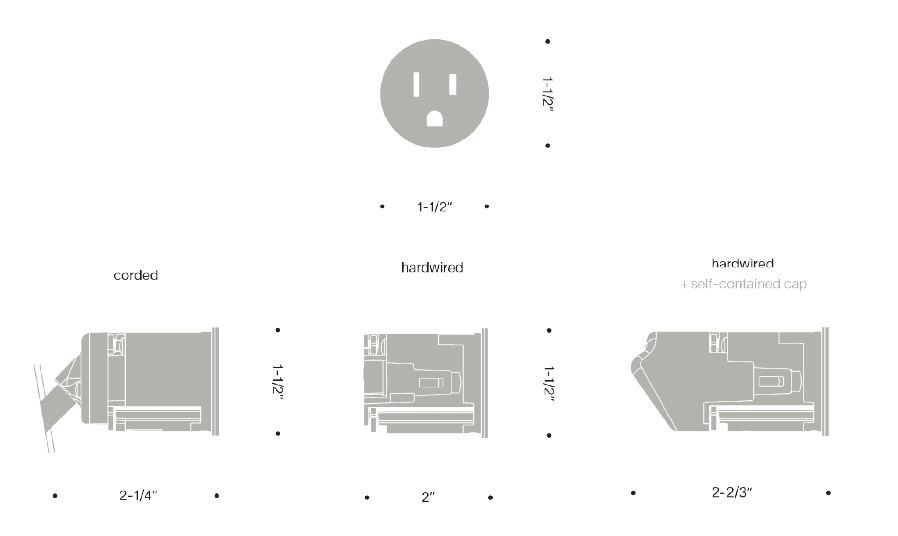

Three ways to install. Self-contained, hardwired or corded.

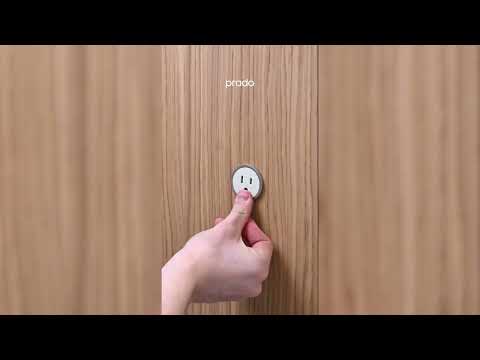

Designed to disappear. An optional self-contained cap eliminates the need for a back box. Installs from the front and removes just as easily. No tools required. Hardwired, self-contained, or corded? Install it your way.

The unifit receptacle is independently tested and certified for safe use in residential and commercial installations across the US and Canada. ETL Listed by Intertek to UL-498 and CSA-C22.2 No. 42 (hardwired and self-contained), and to UL-962A and CSA-C22.2 No. 308 (corded). Approved by NYC DOB (hardwired). Intertek control number 5029983.

$99.00

~~$99.00~~ $99.00

Sale Sold out

Part Number: PRA-9000-0006-EA

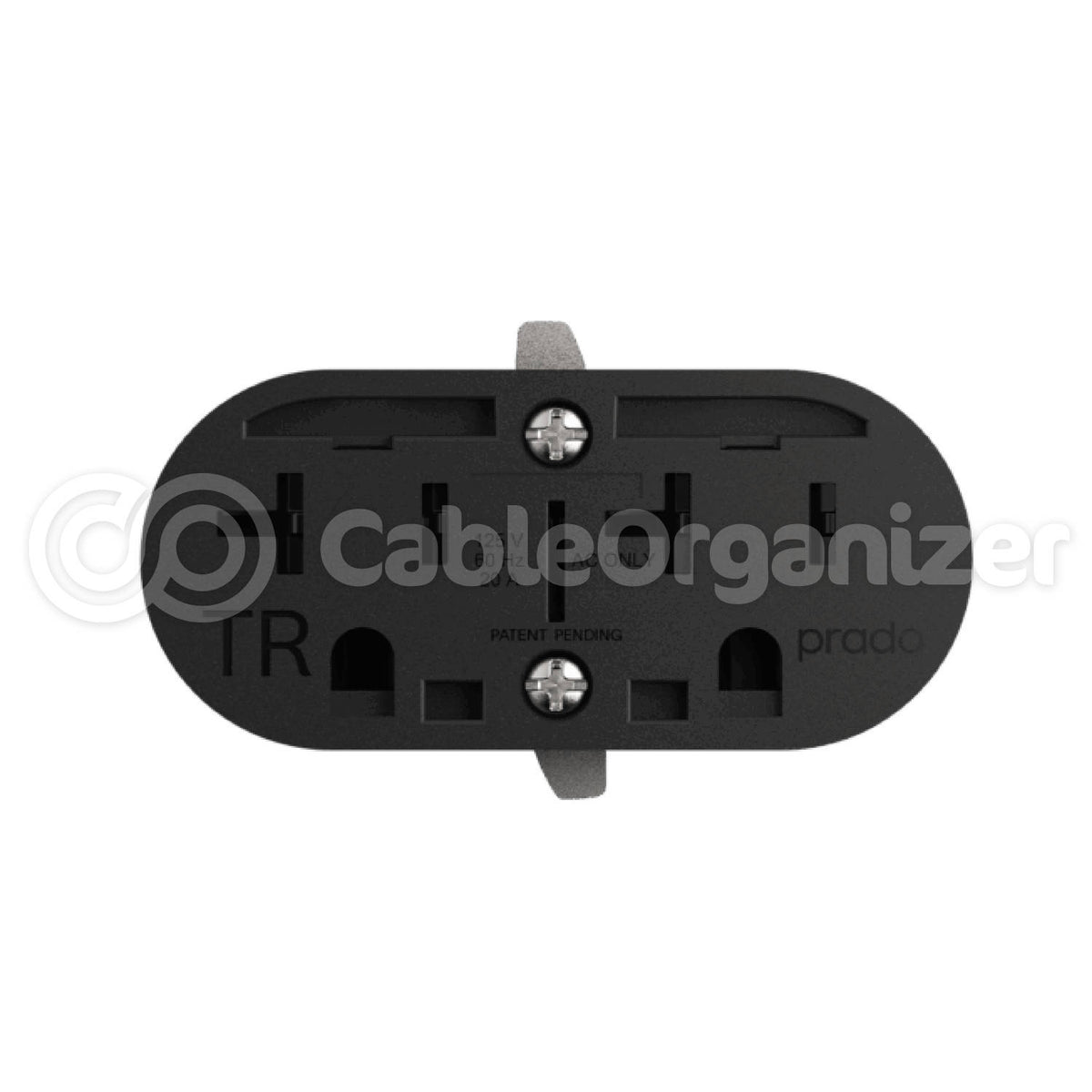

Name: unifit outlet duplex - horizontal - rounded - 15/20A - without cover plate

$99.00

~~$99.00~~ $99.00

Sale Sold out

Quantity

Looking for matching accessories?

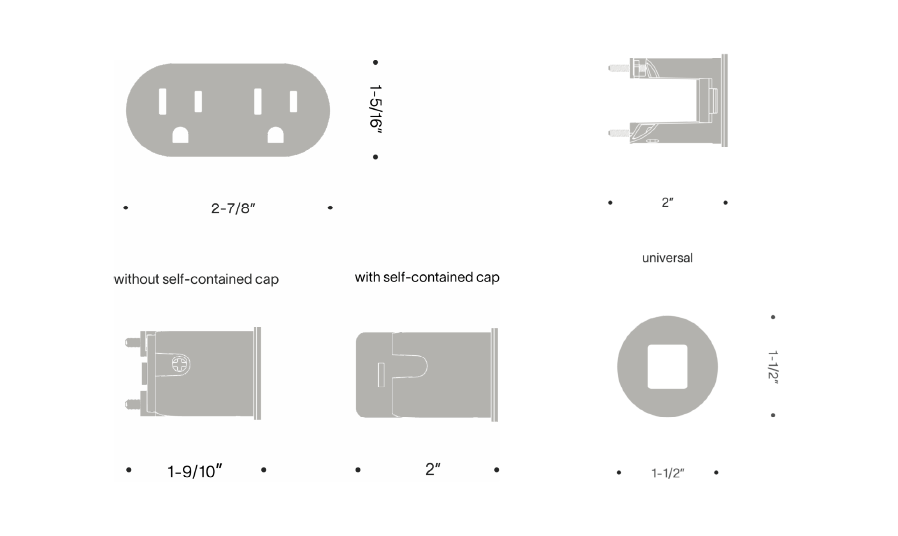

Self-Contained: Comes with a self-contained cap. No back box needed.

Hardwired: Back box & back box cover plate are required.

Corded: For furniture applocations. Comes with a 5ft cable & plug.

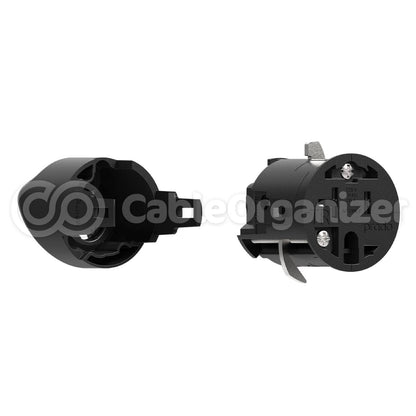

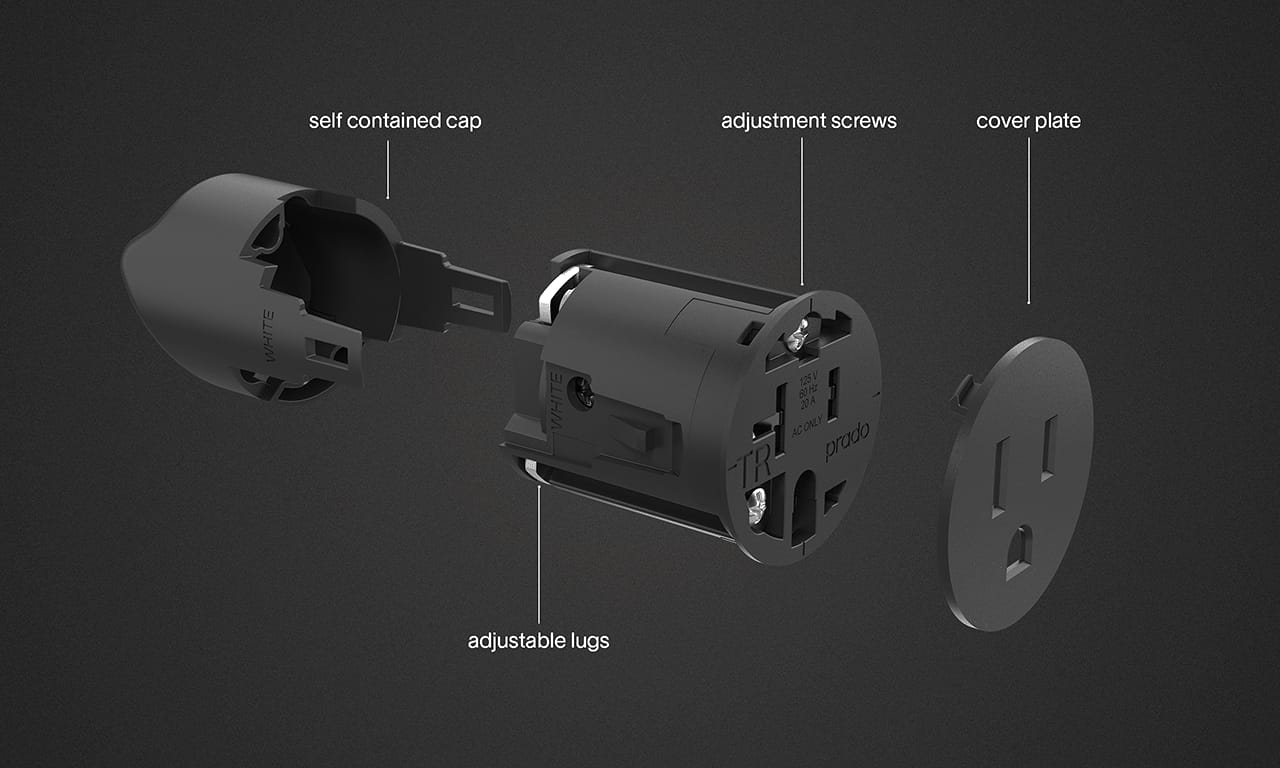

Optional self-contained cap:

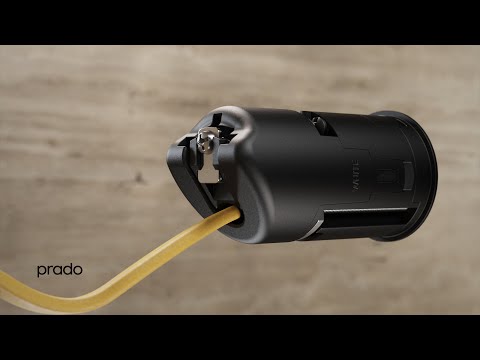

Simplify installation without compromise on design. Unifit hardwired ships with an optional self-contained cap, optimized for Romex cable, eliminating the need for a back box. Install and remove entirely from the front - no hidden steps, no extra tools. The cap also allows daisy chaining, connecting multiple outlets in sequence for greater flexibility and efficiency.

no back box required
front-access installation
optimised for Romex cable

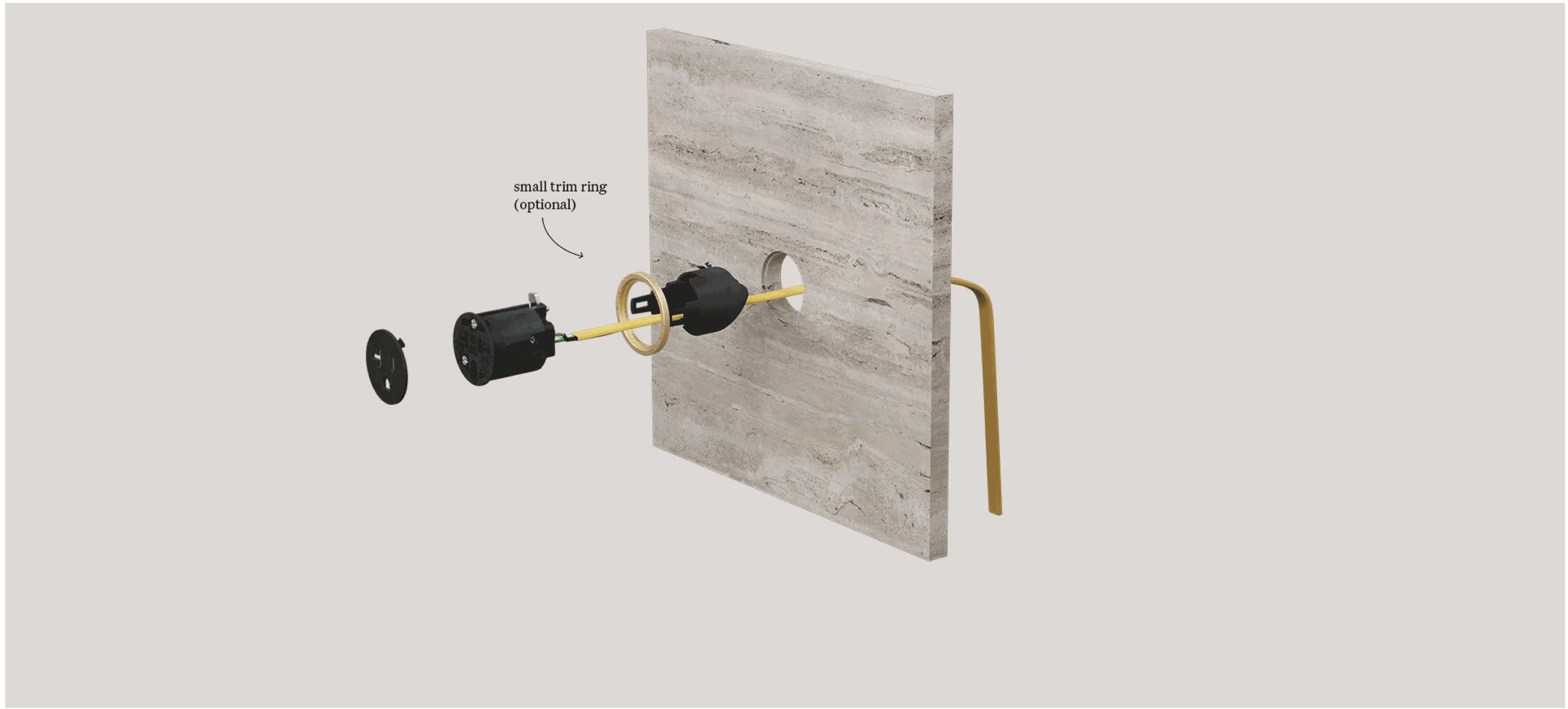

Drill a 1-3/8" hole in the plate material of choice. Flush mount countersing is optional.

Connect the outlet of choice to the appropriate wiring

Secure - Fix the self-contained cap onto the outlet when installing without a back box

Fixate - Screw to fixate the outlet in plate thicknesses from 1/4" up to 1 3/8".

Finish - Add the cover plate of choice. Small trim ring is optional.
