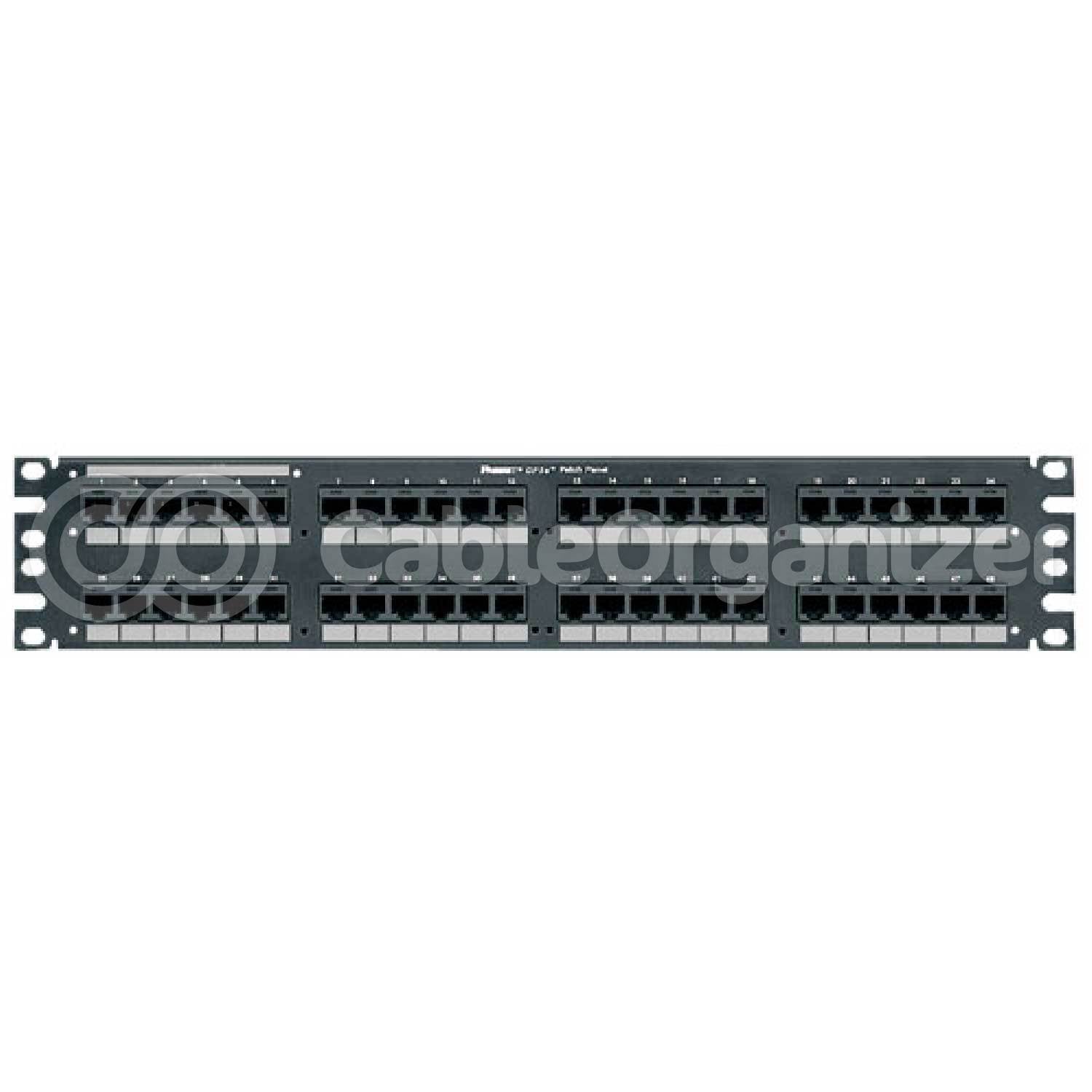

Panduit NetKey Category 5E & Category 6 Punchdown Patch Panels

• Can terminate most 22-26 AWG solid or stranded wire with the punchdown termination on the back.
• Installations are convenient with these panels which have a removable 6 port circuit board design.
• Protective circuit board cover keeps your connections free of dirt and dust.

RoHS compliant to European Union environmental manufacturing standards.

Exceeds all Cat5E and Cat6 POWERSUM, ACR, ELFEXT and Return Loss requirements.

Exceeds all Category 5E and Category 6 requirements

Available in standard 12, 24 and 48 port sizes to suit any application.

All patch panels have the T568A and T568B pin outs clearly designated.

Icons are accepted to easily identify and label parts.

Use a 110 style termination tool for punch downs.

Rack mount patch panels are designed to be mounted in any 19” universal rack or cabinet.

Each patch panel includes four 12-24 and four M6 screws to fasten your patch panel to the rack.

The 12 Port wall mount patch panels are designed to be mounted using the Panduit 89D wall mounting bracket for easier installation.

12-Port, 24-Port, and 48-Port Patch panels have two 6 position bezels assemblies and 8 wires per jack assembly.

All patch panels contain individual retention caps to snap onto each terminated connector to keep your wires neatly in place.

Cable tie mounts are built into the patch panels for managing your cables.

Panel housings are made from black powder coated steel to match your network installations.

RJ45 modules are made of thermoplastic resin that are UL approved UL94V-0 (Flammability rating for electronic parts).

Bezel assembly is made of thermoplastic resin rated UL 94H-B (Flammability rating for low density materials).

ISO 9001:2000
