Panduit NetKey Category 5E & Category 6 Punchdown Patch Panel Accessories

• Can terminate most 22-26 AWG solid or stranded wire with the punchdown termination on the back.
• Installations are convenient with these panels which have a removable 6 port circuit board design.
• Protective circuit board cover keeps your connections free of dirt and dust.

• RoHS compliant to European Union environmental manufacturing standards.
• Exceeds all Cat5E and Cat6 POWERSUM, ACR, ELFEXT and Return Loss requirements.
• Exceeds all Category 5E and Category 6 requirements
• Available in standard 12, 24 and 48 port sizes to suit any application.
• All patch panels have the T568A and T568B pin outs clearly designated.
• Icons are accepted to easily identify and label parts.
• Use a 110 style termination tool for punch downs.
• Rack mount patch panels are designed to be mounted in any 19” universal rack or cabinet.
• Each patch panel includes four 12-24 and four M6 screws to fasten your patch panel to the rack.
• The 12 Port wall mount patch panels are designed to be mounted using the Panduit 89D wall mounting bracket for easier installation.
• 12-Port, 24-Port, and 48-Port Patch panels have two 6 position bezels assemblies and 8 wires per jack assembly.
• All patch panels contain individual retention caps to snap onto each terminated connector to keep your wires neatly in place.
• Cable tie mounts are built into the patch panels for managing your cables.
• Panel housings are made from black powder coated steel to match your network installations.
• RJ45 modules are made of thermoplastic resin that are UL approved UL94V-0 (Flammability rating for electronic parts).
• Bezel assembly is made of thermoplastic resin rated UL 94H-B (Flammability rating for low density materials).
• ISO 9001:2000
• 20 year manufacturer's warranty

Accessory

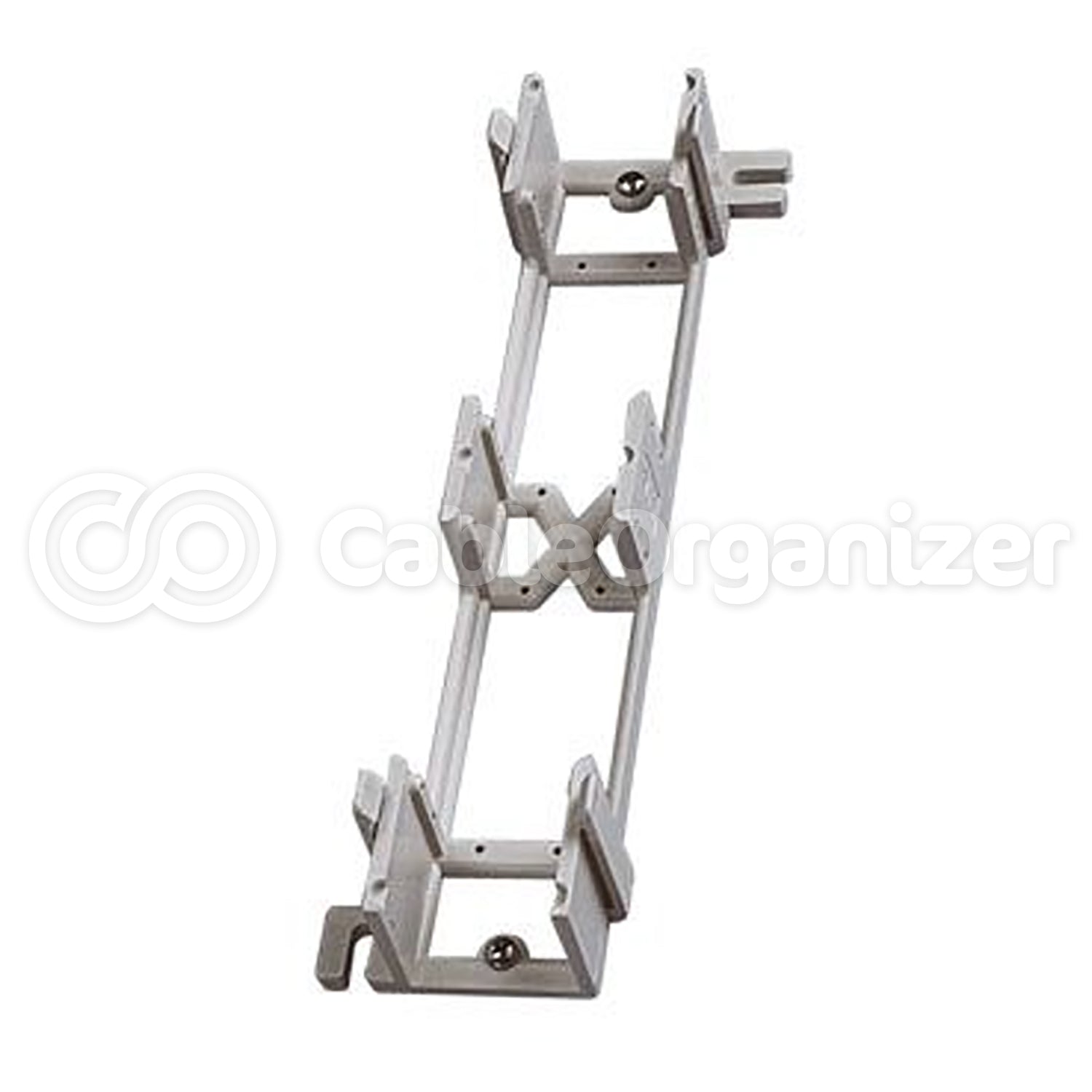

PAN-WB89D Wall Mounting Bracket

For wall mount patch panels:
   Mounts directly on the wall with a release snap feature to allow front access to modules and easy access to installed modules
