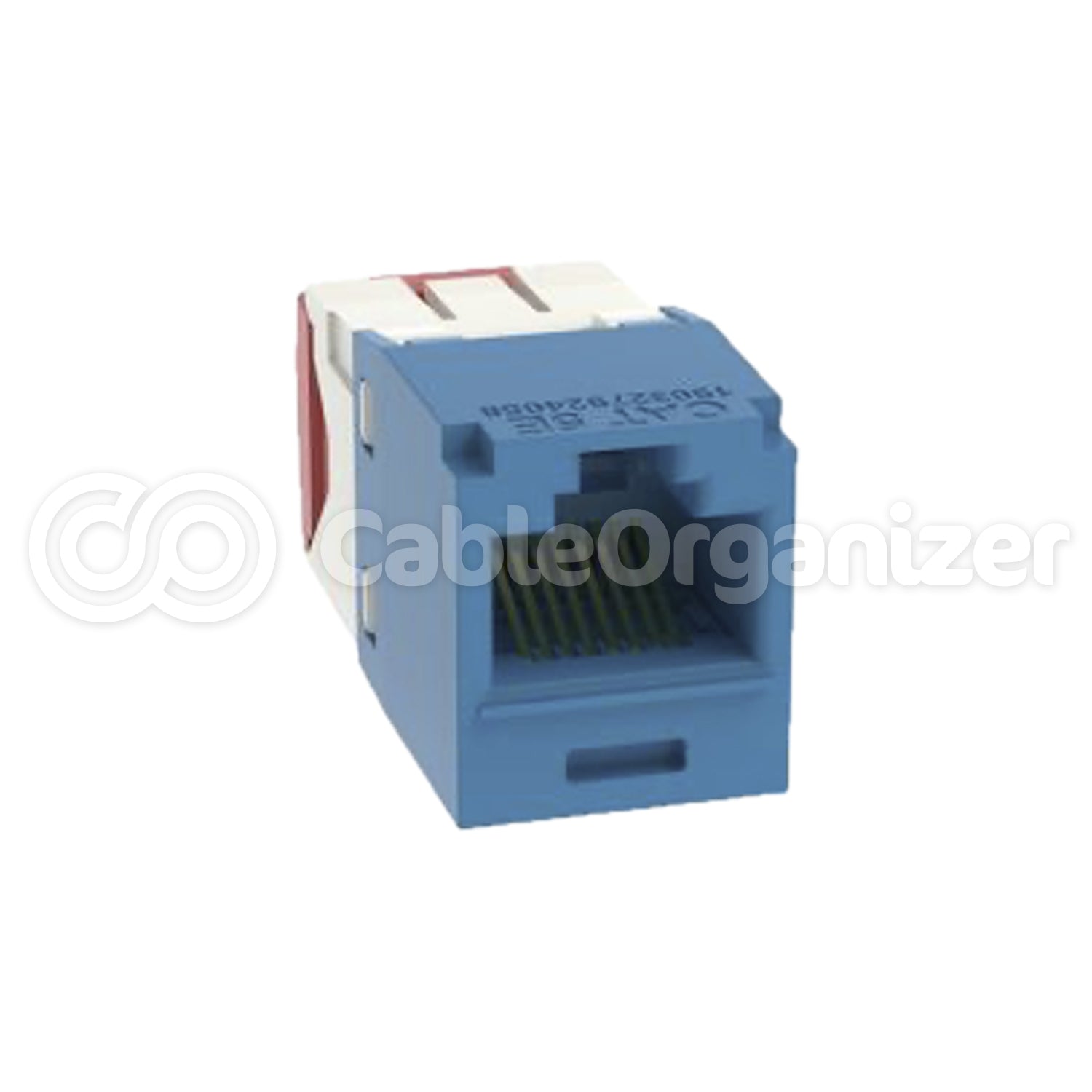

Panduit Mini-Com CAT5E and CAT6 Jacks

Panduit Mini-Com CAT5E and CAT6 Jacks

These RJ45 Keystone Jacks Ensure High Performance and Meet the Highest Product Standards

These reliable Panduit® Mini-Com CAT5E and CAT6 jacks utilize enhanced Giga-TX technology to optimize performance by eliminating conductor untwisting and can be easily identified by the red termination cap. Available in a wide variety of colors to help with ID, you can choose from Cat5e and Cat6 communication jacks, or Cat5e lead frame RJ45 jacks.

$16.18
$16.18 $16.18
Sale Sold out
Blue

Part Number: PAN-CJ5E88T-BU-EA


Name: PANDUIT CAT5E COMMUNICATION JACK (BLUE)

$16.18
$16.18 $16.18
Sale Sold out
  • CAT5E and CAT6 jacks install quickly and easily.
  • Forward motion CAT5e termination will not impact critical internal components.
  • Can be re-terminated a maximum of 10 times.
  • Exceeds TIA/EIA-568-B.2 Category 5e and ISO11801 Class D Standard
  • Exceeds TIA/EIA-568-B.2-1 Category 6 and ISO11801 2nd Edition Class E standard.
  • Each jack is 100% tested to ensure NEXT and RL performance and is individually serialized for traceability.
  • Utilizes patent-pending enhanced Giga-TX Technology for jack terminations which optimizes performance by maintaining cable pair geometry and eliminating conductor untwist.
  • No punchdown tool required; simply use the PAN-EGJT Panduit Mini-Com Jack Installation Tool.
  • Off White termination cap designates Category 6 PLUS performance and provides a positive strain relief, help control cable bend radius and security retains wires.
  • Terminates 4 pair, 22-24 AWG, 100 ohm, solid or stranded twisted pair cable.
  • Termination cap is color coded for T568A and T568B wiring schemes
  • Accepts 6 and 8 position modular plugs without damage
  • CAT5e Jacks are compatible with the Panduit Mini-com Executive series wall plates which are available in 1, 2, 4 or 6 module versions.
