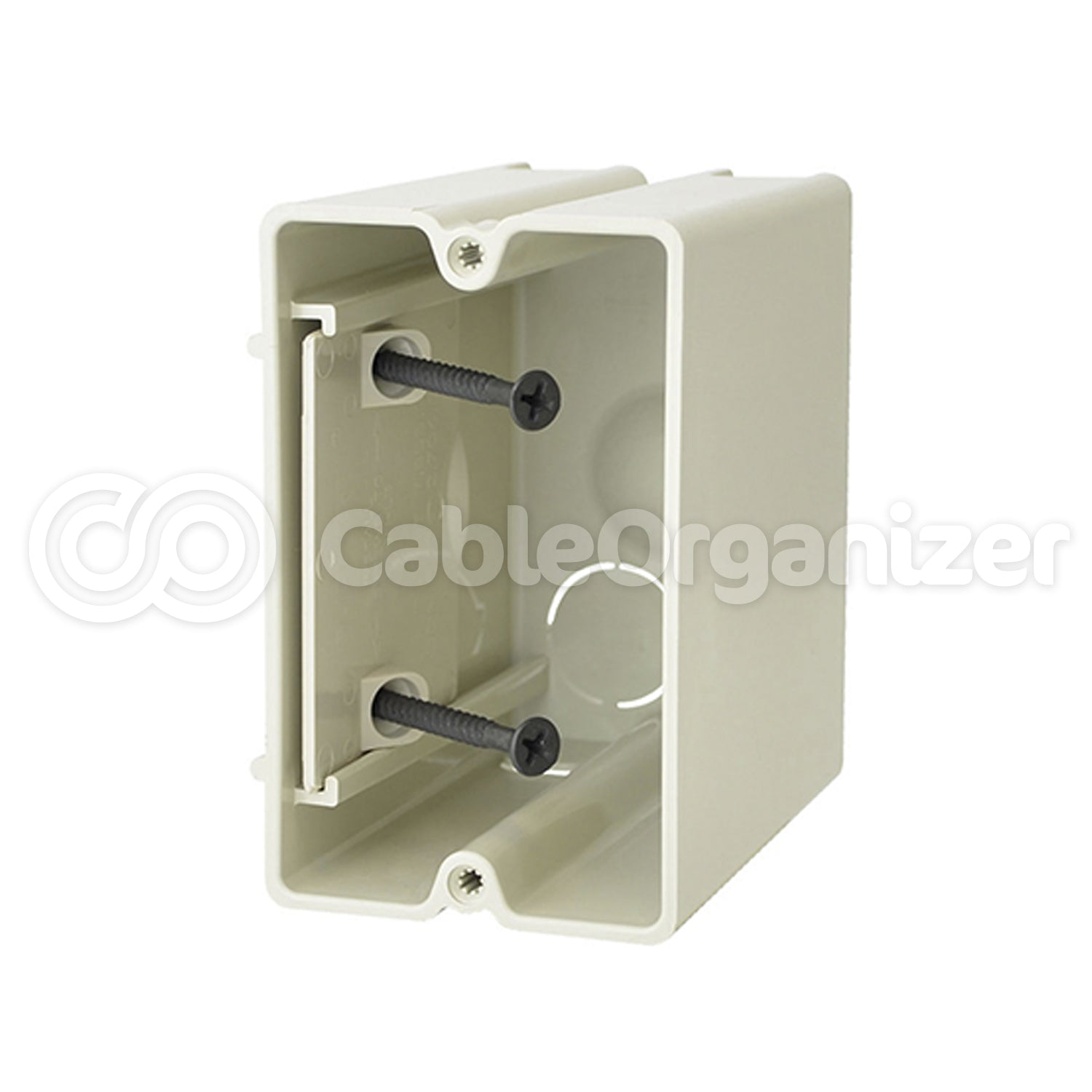

Non-Metallic Adjustable SliderBox™

Non-Metallic Adjustable SliderBox™

Adjustable Depth Without Having to Remove or Relocate Screws

Building codes require your electrical boxes to sit flush against the surface of the wall or ceiling, which means that if you are planning on applying a decorative finish such as ceramic tile on top of your drywall, your electrical box will be recessed and not pass inspection. With the Sliderbox™, simply loosen the screws and pull the box forward, instead of removing and relocating the entire junction box.

$660.00
$660.00 $660.00
Sale Sold out

Part Number: AMP-SB-1-EA


Name: Internal steel/wood stud screws, 1/2" knockout - 1 Gang

$660.00
$660.00 $660.00
Sale Sold out
  • Innovative slider plate allows the wall box to adjust to varying depths for applications in which additional material such as tile or soundproofing devices are being added to the surface.
  • Features a non-slip pad to provide the box and slider assembly a 50 lbs pull strength, to hold securely during power cord pull out.
  • Smoothly adjusts for wall substrates from 1/2" to 1 3/8" thick to meet building codes and regulations.

Slots in the side of the electrical box retain and guide the slider plate in a straight, fluid motion.

Slider plate holds screws in the ready position, allowing faster mounting time for contractors.

Square corner design provides an easy template when installing in old work applications.

Constructed of molded non-metallic thermoplastic that's perfect for low voltage electrical solutions.

Multi-gang ceiling boxes feature patented (# 6365831 B1) Speed Klamps™ for easier installation.

SB-2 and SB-3 are UL listed for a 2 hour fire resistance in walls.

SB-1, SB-CBFR are UL listed for a 2 hours fire resistance in walls and ceilings.

Can be used with new or pre-existing construction

Fan support Sliderbox™ features a steel bracket and mounting bolts for paddle fan mounting.

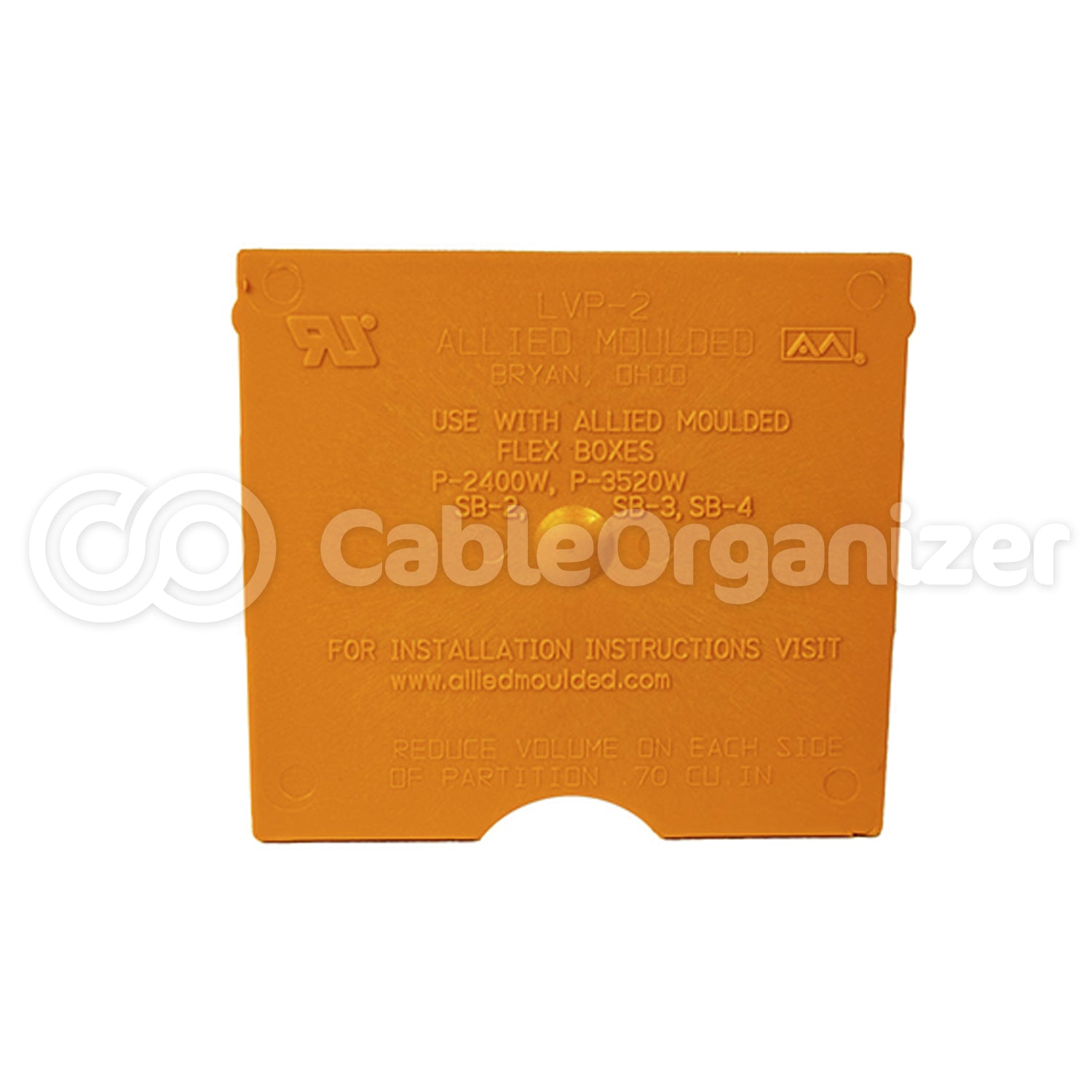

Multi-gang boxes offer internal holding slots for LVP-2 low voltage partitions for dual voltage applications.

Non Metallic Adjustable SliderBox

Find Your Non-Metallic Adjustable SliderBox™

Loading variants… 0 loaded

# Variant ID Image Dimensions # of Gangs Part # Price (Each) Quantity
