MRK Series Rack Enclosures

MRK Series Rack Enclosures

Slim Seismic-Zone 4 Certified Fully Welded Rack

Introducing the MRK Series Rack Enclosures, possibly one of the most versatile in Middle Atlantic's entire line. When the need for co-location enclosures or easy side panel access arises, this is the perfect enclosure to meet those needs and more. Pre-configured enclosures are available, geared towards various common applications and including all the accessories you need-and more. Enclosures come with open sides, however, models with side panels are available.

$1,178.10
$1,178.10 $1,178.10
Sale Sold out

Part Number: MA-MRK-2426-EA

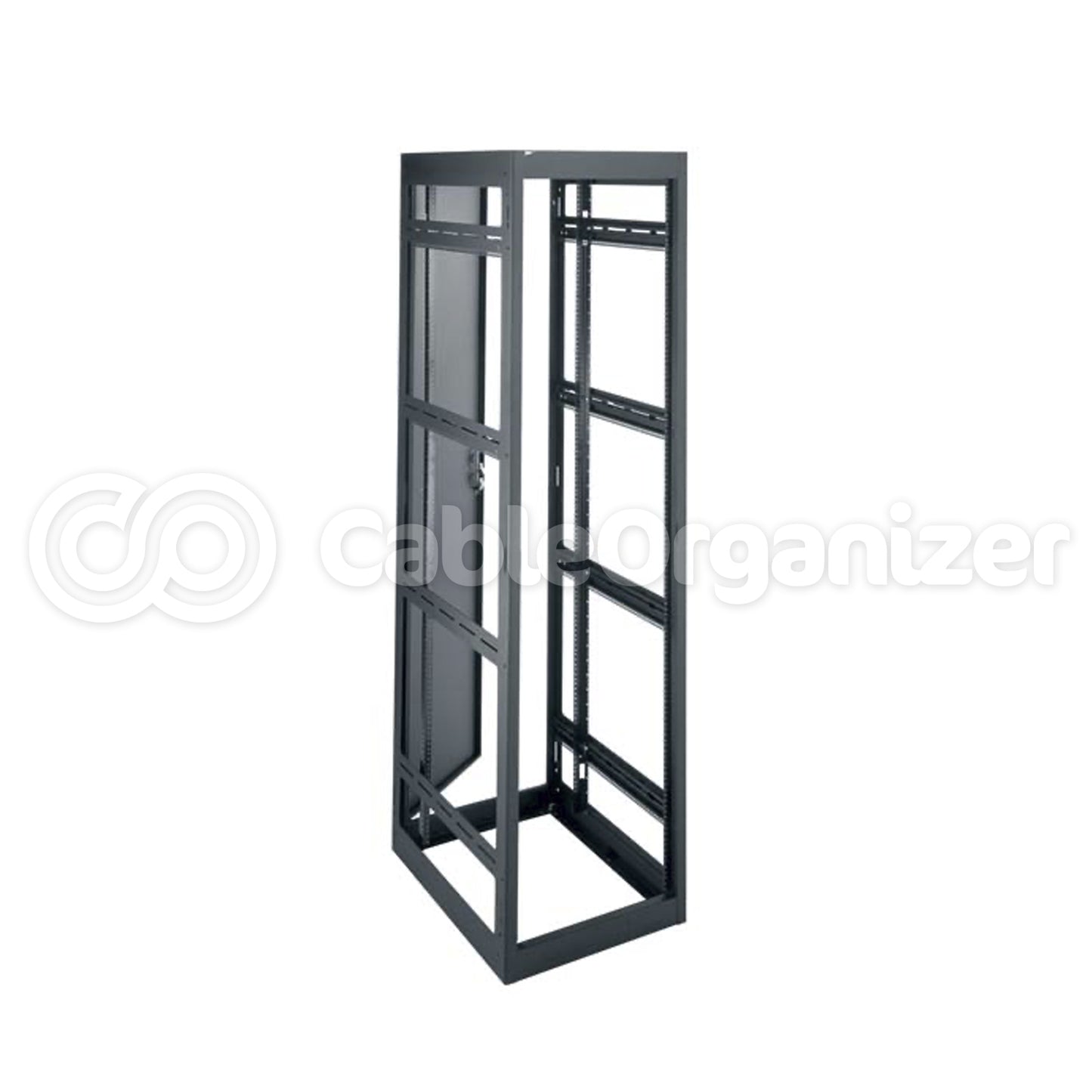

Name: MRK Series Gangable Rack Enclosure - 24U - 26.5in Deep

$1,178.10
$1,178.10 $1,178.10
Sale Sold out
  • Slim 22" width is compact enough to save room in cramped locations.
  • Available in 4 different depths to better suit your application.
  • Grounding and bonding stud installed in base.
  • Standard front and rear adjustable 11-gauge, 10-32 threaded, wide rack-rails with numbered rack-space increments to speed equipment mounting.
  • Abundant lacing points throughout the interior facilitate cable management.
  • Fully welded construction provides:
  1. Static Load capacity – 10,000 lbs
  2. UL Listed load capacity – 2,500 lbs
  3. Seismic Certified load capacity – 1,050 lbs

Configured AUDIO/VIDEO Enclosure includes:

  • Integrated fan top with proportional speed fan controller
  • Configurable rear door with bottom vent, solid locking front door
  • 3-1/4" wide vertical lacer strip
  • (6) Horizontal lacer bars
  • (12) 8" Velcro® cable management straps
  • Thin power strip, 20 Amp, 20 outlets with cord
  • Leveling feet
  • (100) 10-32 rack screws included
  • Side panels optional
  • Ganging hardware optional for multi-bay installations

Configured DIGITAL VIDEO RECORDER Enclosure includes:

  • (2) Pairs 10-32 threaded rackrails
  • Fully vented top
  • Fully perforated vented front door and split rear door
  • 3-1/4” wide vertical lacer strip
  • (6) Horizontal lacer bars
  • (12) 8”Velcro® cable management straps
  • Thin power strip, 20 Amp, 20 outlets with cord
  • (1) each 1-space and 2-space brush grommet
  • Leveling feet
  • (100) 10-32 rack screws included
  • Side panels optional
  • Ganging hardware optional for multi-bay installations

Configured NETWORK VIDEO RECORDER Enclosure includes:

  • (2) Pairs cage nut style rackrails
  • (1) Pair of cage nut style Z-rail adaptors
  • Fully vented top
  • Fully perforated vented front door and split rear door
  • 3-1/4" wide vertical lacer strip
  • (6) Horizontal lacer bars
  • (12) 8" Velcro® cable management straps
  • Thin power strip, 20 Amp, 20 outlets with cord
  • (1) Each 1-space and 2-space brush grommet
  • Leveling feet
  • (100) 6mm threaded cage nuts and rack screws
  • (50) 10-32 threaded cage nuts and rack screws
  • Side panels optional
  • Ganging hardware optional for multi-bay installations
