Middle Atlantic RL Series Open Frame, 2-Post Rack

Middle Atlantic RL Series Open Frame, 2-Post Rack

Tapered Feet Help This Rack Self-Stabilize on Uneven Floors

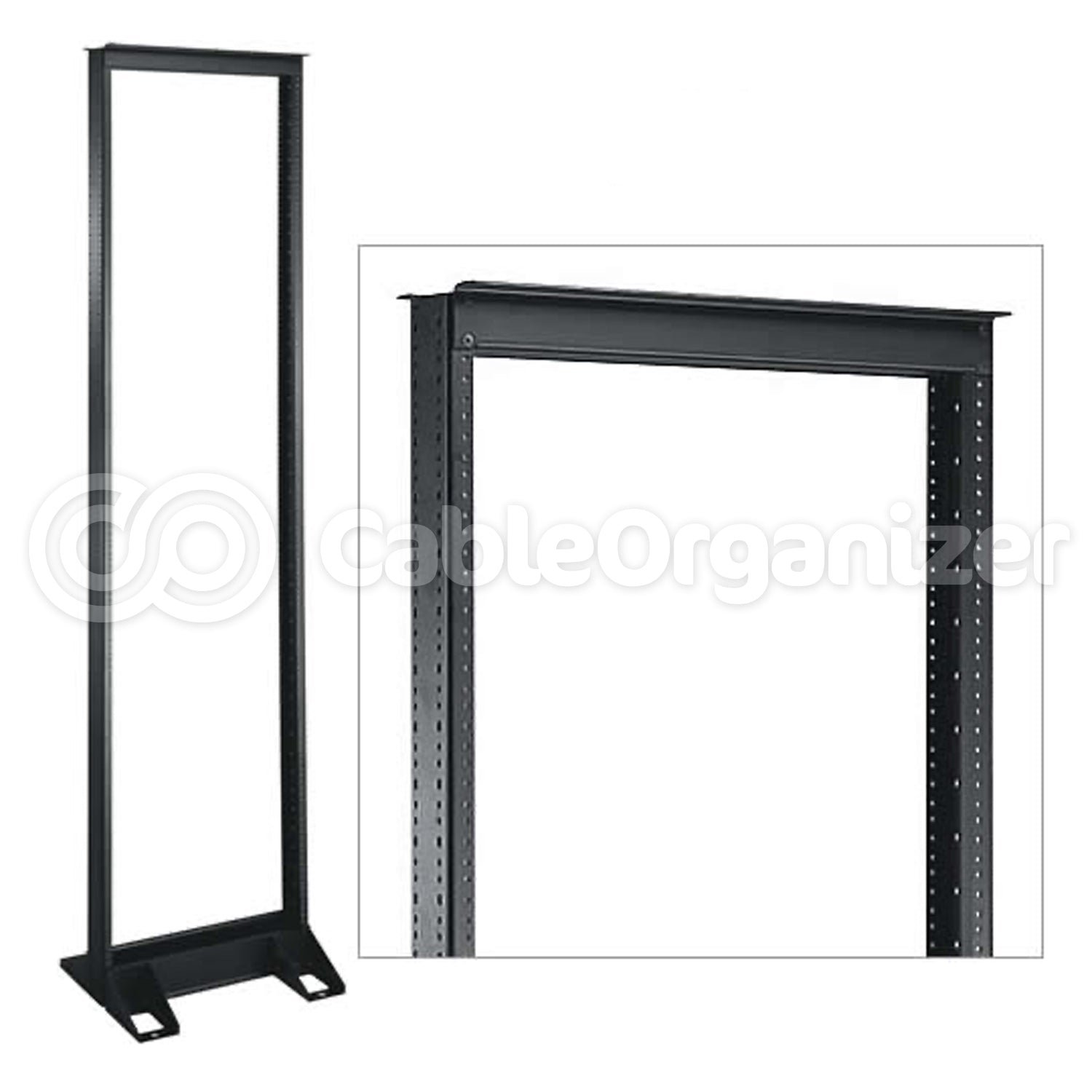

The RL Series 19" 2-post open rack is designed for heavy equipment; it can hold up to 1600 lbs, and features a self-squaring design for easy assembly. Also available with optional vertical cable managers and a cantilever support base.

$353.70
$353.70 $353.70
Sale Sold out

Part Number: MA-RL10-45-EA


Name: Middle Atlantic RL Series 2 post open rack 10-32 thread type

$353.70
$353.70 $353.70
Sale Sold out
  • Tapered feet support the rack on uneven floors; no more leaning or tilting.
  • Optional cantilever support base (CSB) to stabilize the frame when heavy equipment is being used.
  • Self-aligning posts for quick set up at the jobsite.
  • Can be used with vertical cable ducts for a clean and professional look.
  • Space between feet allows for devices to be put on the floor close to the rack, for ease in installation.
  • Includes 50 rack screws, 10-32 or 12-24 threaded hardware available.
  • Made from 1/8”, 11 gauge steel for extra strength.
  • The Aluminum top angles and can be easily drilled for cable ladder Installation.
  • Up to 45U of usable space to accommodate any size job.
  • Able to hold overweight items like a UPS unit or multiple patch panels this unit can hold up to 1600 lbs when properly braced.
  • Rails come with tapped holes in universal EIA spacing, which results in level equipment.
  • UL E173107 and UL 1678 rated
  • Lifetime manufacturer's warranty



Optional Equipment:

  • CSB Cantilever support base
  • CK-45 Center cable organizer (45 space)
  • CK-45E End cable organizer (45 space)
  • CK-45C Cable organizer covers (45 space)
RL series specs
