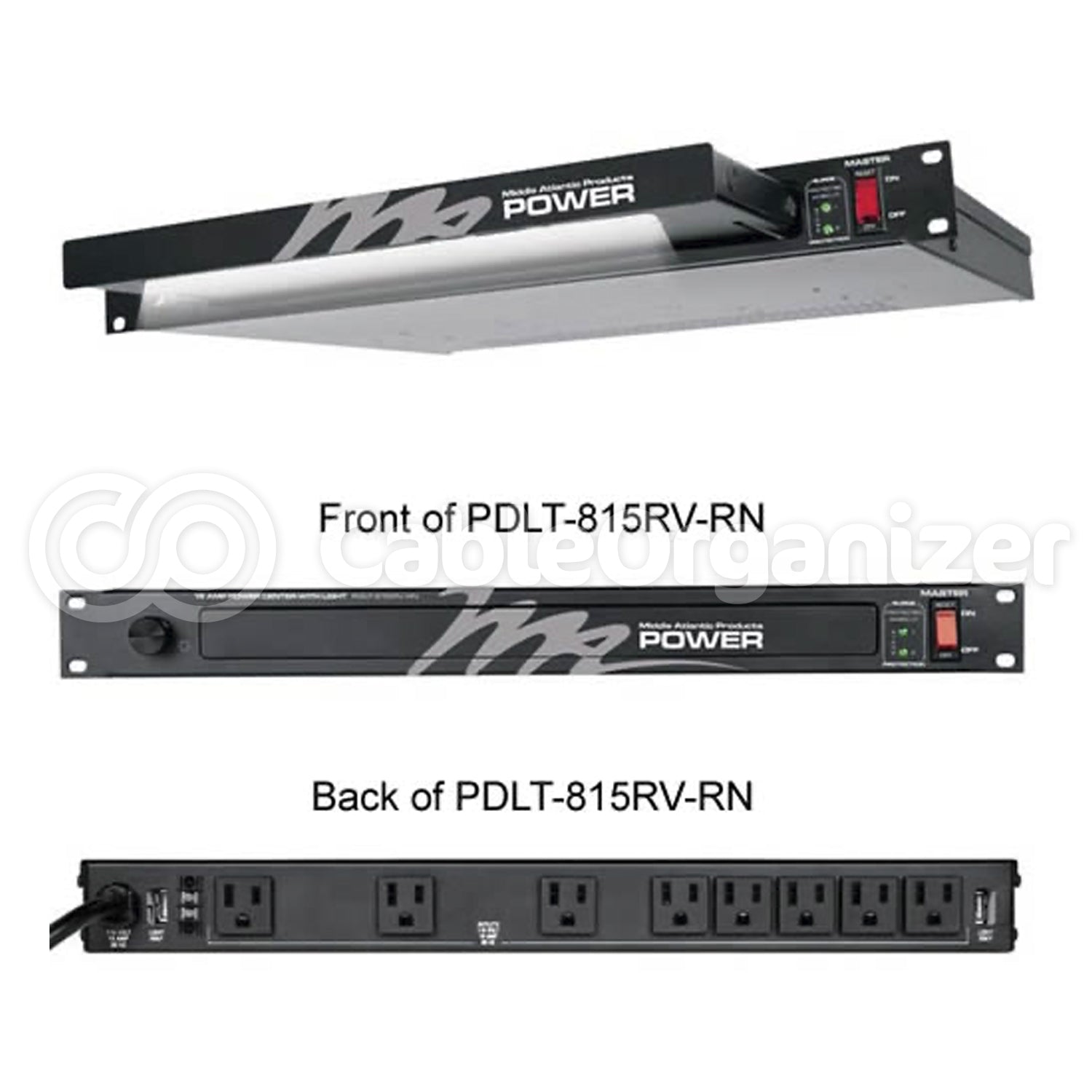

Middle Atlantic 115 Volt Rack Mount Light with Power Distribution

Middle Atlantic 115 Volt Rack Mount Light with Power Distribution

If you've ever wanted a solution that could both power your rack-mounted equipment and improve rack visibility, look no further than the PDLT series Rack light and Power Distribution Unit from Middle Atlantic. This 15 amp, 115V power strip/rack light hybrid provides your rack or enclosure with 8 surge-protected rear outlets that will guard your valuable electronic components against power spikes and filter out electromagnetic interference (EMI).

Regular price $360.00
Regular price $360.00 Sale price $360.00
Sale Sold out

Part Number: MA-PDLT-815RV-RN-EA

What's Special

  • Retractable front light for component illumination.
  • 15amp, 115-volt power
  • 8 rear vertically-oriented NEMA 5-15R outlets, which are spaced to easily accommodate plug-in power supplies.
  • A 13-1/2" depth that provides easy access to the rear outlets.

Features

  • Two-stage surge and spike protection, as well as EMI filtration.
  • Provides remote or local LED notification of surge suppression status, which will work with any customer-supplied monitoring device to warn you when protection in compromised.
  • The clean ground surge suppressor design will not pass noise contamination to the ground.
  • Occupies only one rack space (1U)
  • Extra long 9-foot cord eliminates the need for extension cords.
  • The front panel displays an illuminated combination power switch/circuit breaker.
  • Includes two rear USB ports for use with the optional LED gooseneck work light (model # QMA-LT-GN) for additional illumination.
  • Constructed of 18-gauge steel
  • NEMA 5-15 plug
  • Durable black powder coat finish
  • Maximum clamping voltage: 545 Volts @ 100 Amps
  • Response Time:  Instantaneous (Less than 1 nanosecond)
  • Peak impulse current (8/20 micro seconds):
  1. 30,000 Amps, one time
  2. 19,500 Amps, two times within 5 minutes
  3. 7,000 Amps, ten times within 2 minutes
  • Maximum peak impulse current pulse as defined between lineand neutral.
  • Maximum multiple impulse current derated per spec
  • UL-listed in both the USA and Canada (UL standard 1419)
  • TIA/EIA compliant
  • Limited Lifetime Warranty
  • Made in USA

This Middle Atlantic product's press-to-open / press-to-close retractable light extends 4-1/2", and is a convenient, effective source of illumination when you need to operate or perform maintenance on rack-mounted equipment. Featuring a generous 13-1/2" depth and a 9-foot power cord, this one RU power supply / surge suppressor allows easy access to the rear outlets, while eliminating the need for extension cords.
