IGUS® Chainflex® TPE Multimode Fiber Optic Cables

IGUS® Chainflex® TPE Multimode Fiber Optic Cables

EMI Protected and Abrasion Resistant Fiber Optic Cable for Industrial Environments

Chainflex® premium grade multimode fiber optic cables from IGUS® provide professional networking and mechanical engineers with a rugged solution for providing fast data transmission to equipment in unfavorable conditions.

  • CE
$31.79
$31.79 $31.79
Sale Sold out

Part Number: IGU-CFLG-6G-625-125-TC-EA


Name: IGUS Chainflex TPE Multimode 6 Count Fiber Optic Cable, 62.5/125, Per Foot-Black

$31.79
$31.79 $31.79
Sale Sold out
  • Provides excellent EMI protection without using hard-to-work-with metal shielding that prolongs the time it takes to install and terminate fibers.
  • Premium quality gradient glass fiber optic cable with layers of heavy duty outer protection for use in hardworking automated machinery that requires consistent and reliable performance.
  • Available in 6 and 12 fiber counts, with either a 62.5/125 or 50/125 diameter for meeting preexisting or from-scratch multimode networking standards.

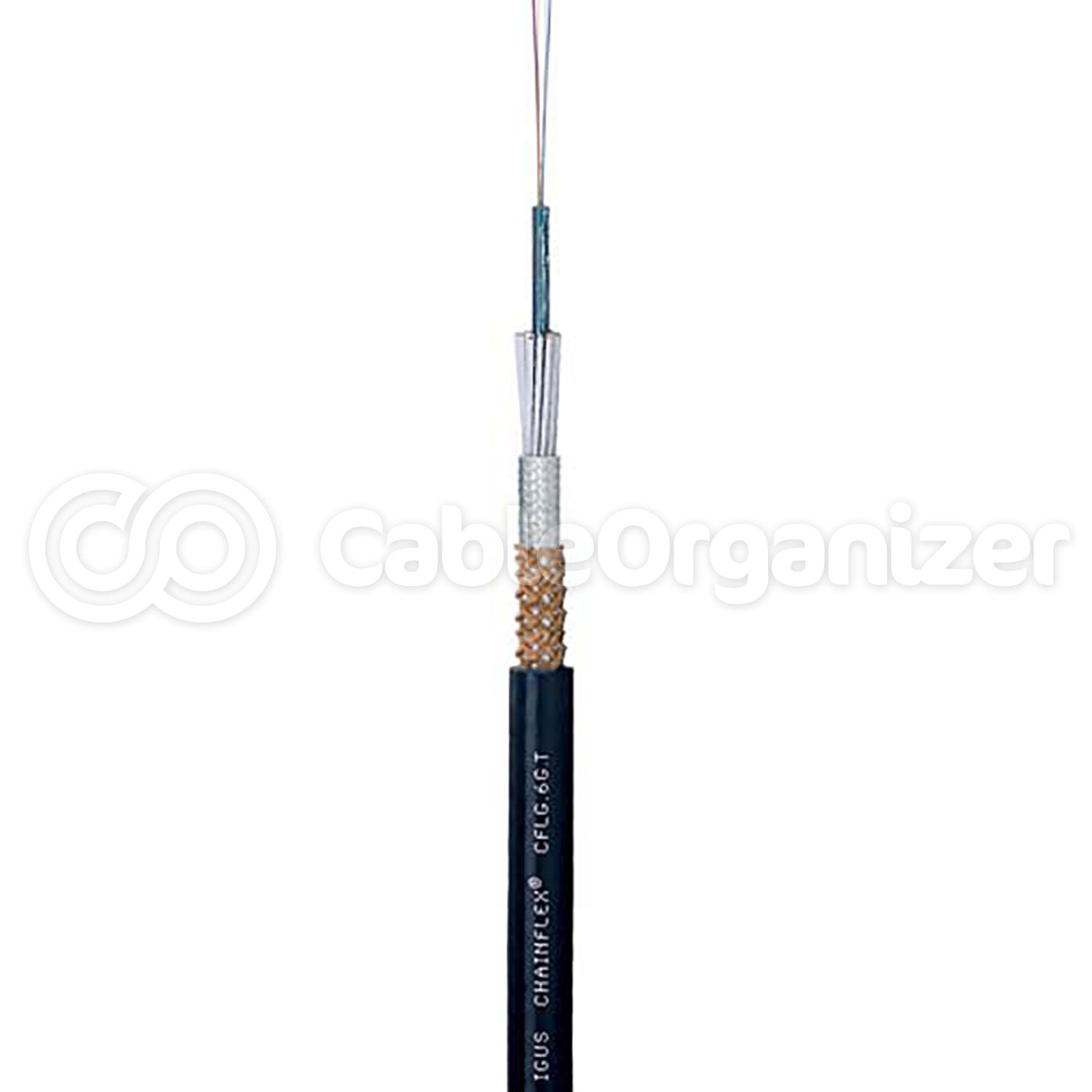

These multimode fiber optic cables consist of multiple color-coded gradient glass fibers that are layered in several protective jackets to provide UV, oil, abrasion, EMI, and low temperature resistance.

  • Outer jacket is constructed from a low adhesion, highly abrasion resistant TPE blend with an integrated torsion protection braid that keeps the inner core safe and protected in high friction environments, such as moving cable/hose carrier systems or suspended cable management for automated industrial equipment.
  • Inner layer of stranded GRP rods provides excellent strain relief elements for helping to maintain a proper bend radius in moving components.
  • Bare fibers are coated in a gel-filled sheath to help keep fibers safe from harmful impact, while reducing the effects of performance damaging EMI.
  • UV and oil-resistant jacket for mechanical use in both indoor and outdoor applications.
  • Usable in suspended and gliding cable management of up to 1,641 feet (500m) and more.
  • Metal-free to eliminate additional crosstalk.
  • Halogen-free
  • CE Rated
EU Data sheet Chainflex TPE Multimode Fiber Optic Cables IGUS Chainflex TPE Multimode Fiber Optic Cables
