IGUS® Chainflex® TPE Data Cables

IGUS® Chainflex® TPE Data Cables

Rugged and Flexible Shielded Data Cables for Maximum Mechanical Load Requirements

IGUS®Chainflex® TPE Data Cables are designed to provide professional installers with a premium grade wiring solution that is ideal for a wide range of indoor and outdoor applications requiring maximum performance and reliability.

  • RoHS
  • CE
$5.82
$5.82 $5.82
Sale Sold out

Part Number: IGU-CF11-02-02-02-EA

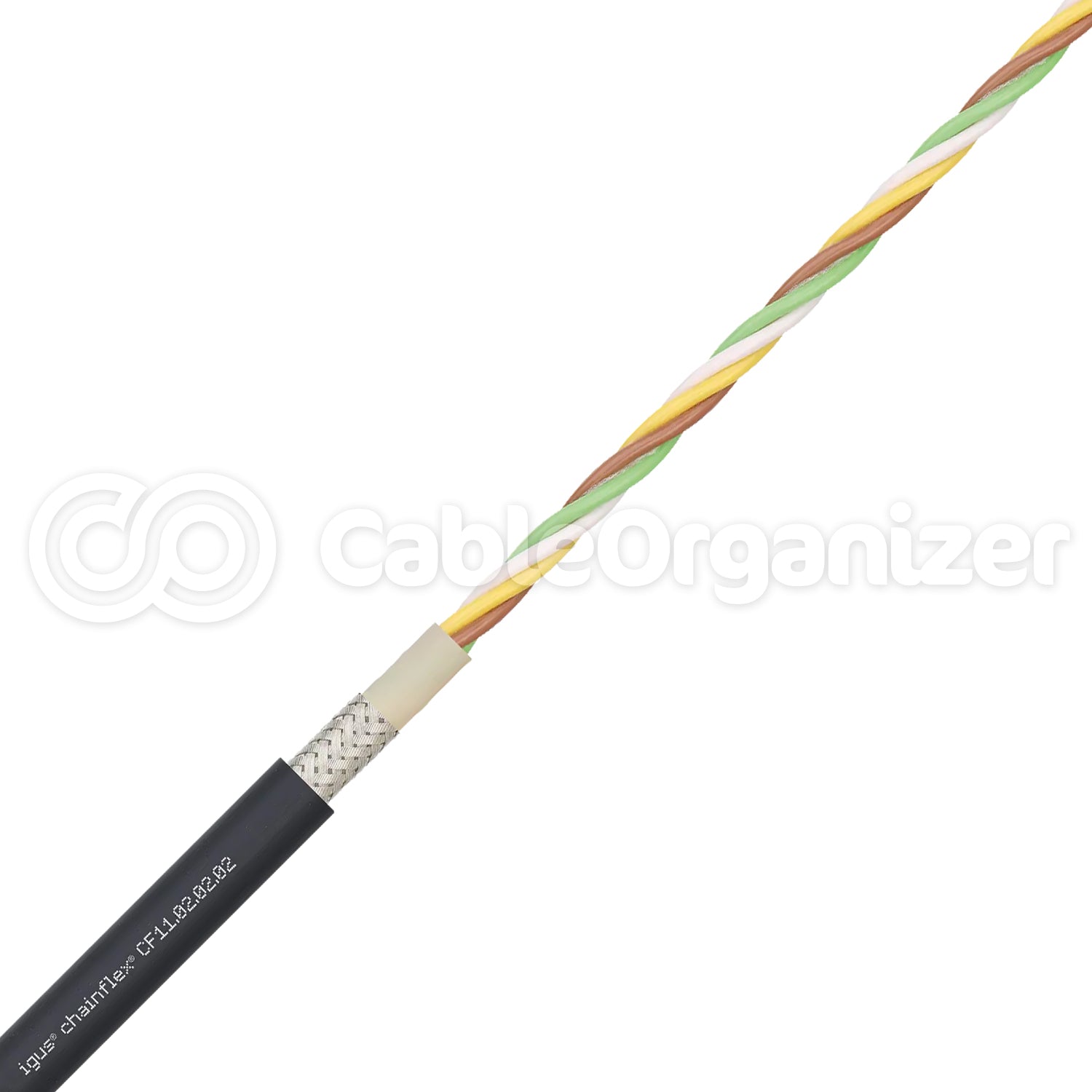

Name: IGUS-Chainflex Shielded TPE Data Cable 2 Pair, 24 AWG, Per Foot-Blue

$5.82
$5.82 $5.82
Sale Sold out
  • Premium grade copper conductor cable that is available in 2 to 18 twisted pair strands for creating data connections in a wide range of indoor and outdoor applications.
  • Strain relief center core helps to eliminate high tensile stress to the outer core, which can cause performance degradation or system halts if conductors become damaged or severed.
  • Highly flexible and particularly abrasion-resistant TPE outer jacket keeps conductors safe, especially in moving machinery or cable and hose carrier systems.

Whether you’re looking for a data cable that can withstand the constant friction of a CNC mill cable chain or survive in an outdoor crane that is constantly exposed to cold weather, UV, oil and other harsh environmental factors, these data cables will meet or even exceed your application's requirements. Designed with a durable TPE outer jacket and an inner copper braid shield that provides extreme abrasion resistance and EMI protection while remaining highly flexible to adapt to the requirements of automated machinery.

Inner core consists of multiple twisted pairs of highly flexible, finely stranded copper conductors that are in accordance with EN 60228.

Conductors are individually insulated in a color-coded, thin-walled TPE jacket that provides easy recognition and helps to reduce installation mistakes and crossed wires.

Intermediate jacket is a pressure extruded, gusset-filled TPE blend that has been adapted to requirements for use in chain linked cable  carrier systems.

Overall shield is made from highly flexible tinned copper braids that protect the conductors from electromagnetic interference, and also acts as 2nd level of defense in case the outer jacket is breached or worn thin.

Outer jacket is made from a high-flex TPE blend that provides excellent oil, bio-oil, UV, and coolant resistance.

EU Data sheet chainflex CF11
