• IGUS® Chainflex® PUR CAT5e Ethernet Cable
1 1

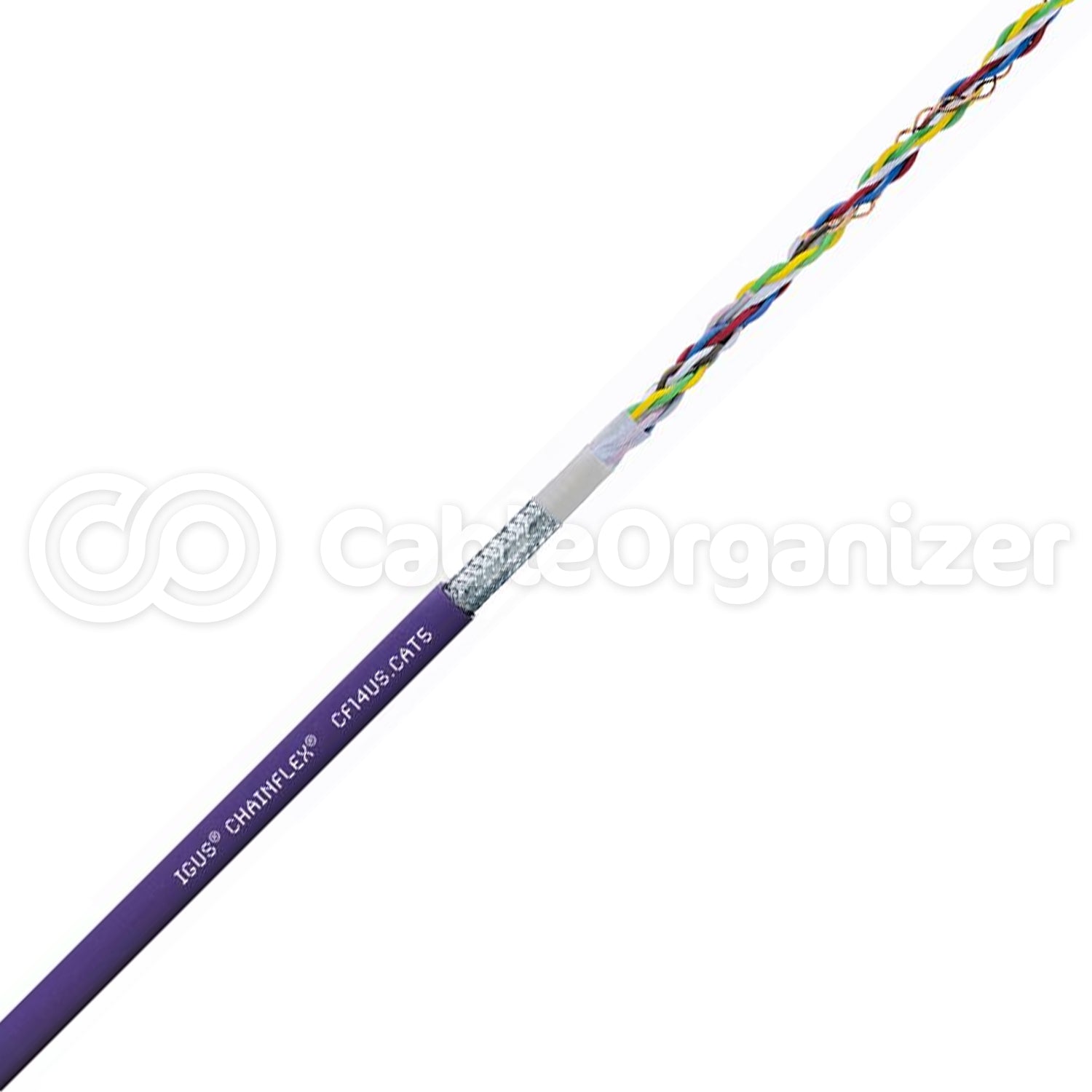

IGUS® Chainflex® PUR CAT5e Ethernet Cable

IGUS® Chainflex® PUR CAT5e Ethernet Cable

Industrial Quality Shielded CAT5e Cable for High Perfomance Mechanical Requirements

Whether your application calls for high flexibility, EMI protection, or extreme durability, the IGUS® Chainflex® PUR Ethernet Cable is the solution. Unlike standard CAT5e patch cables, the CF14US premium grade shielded ethernet cable will not quickly ware thin under high friction or become severed do to high tensile stress. Making this Ethernet cable ideal for hardworking applications like CNC machinery, milling equipment, cleanrooms, indoor cranes, storage and retrieval units for high-bay warehouses, or outdoor equipment not directly exposed to sunlight.

$6.77
$6.77 $6.77
Sale Sold out

Part Number: IGU-CF14US-02-04-02-EA

Certifications
  • RoHS
  • CE
  • CSA Approved
  • UL Recognized Component Mark

What's Special

  • Premium grade copper twisted pair networking cable for high performance Cat 5 applications that require durability and reliability.
  • Abrasion and tear resistant outer jacket provides excellent protection in industrial environments with automated machinery that use suspended cable management or cable/hose chain carrier systems.
  • Highly flexible construction provides three layers of protection which help to limit high tensile stress on the inner conductors, reducing the chance of severed connections or degradation of system performance.

Features

  • Conductors are 26 AWG finely stranded tinned copper wires that provide superior continuity for hardworking network components and hardware.
  • Color-coded, polyethylene-foam conductor insulation meets T568A/B wiring standards for providing fast and reliable termination while reducing the chance of crossed or improper installation.
  • Inner jacket is a gusset filled, pressure extruded TPE blend that provides excellent flexibility while keeping the 4 pairs twisted together after outer layers have been stripped away.
  • Overall shield is made of highly flexible tinned copper braiding that greatly reduces the effects of EMI on conductor performance, while acting as a second layer of defense in case the outer jacket has been torn or worn thin.
  • Outer jacket is a pressure extruded, halogen-free PUR blend that provides excellent abrasion and oil-resistance, with moderate UV-resistance and flame retardant qualities.
  • Meets EIA/TIA 568-B.2
