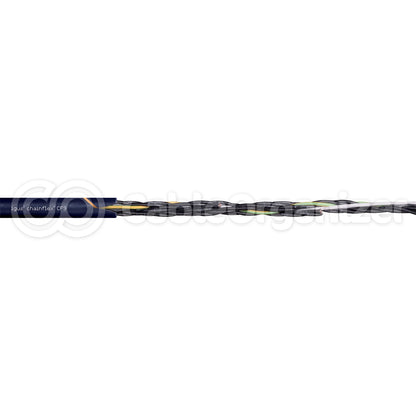

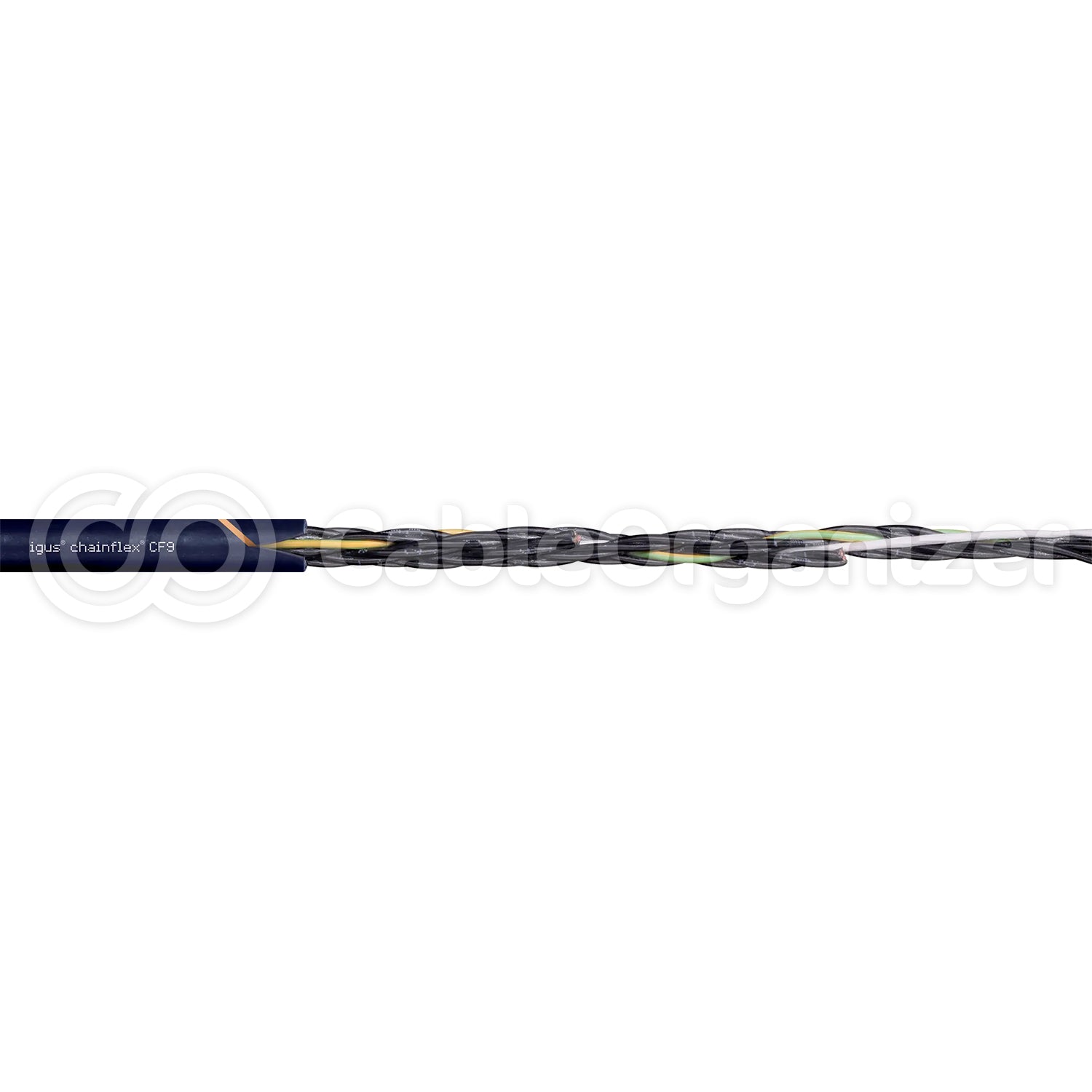

IGUS® Chainflex® CF9 TPE Control Cables

IGUS® Chainflex® CF9 TPE Control Cables

High Performance Control Cables for Commercial, Industrial, and Medical Grade Machinery

The accelerated breakdown and deterioration of machine cables due to abrasion, UV, oils or high tensile stress is becoming a constant nightmare amongst installers and machine operators. IGUS®, a world leader in Energy Chain® and cable/hose carrier systems has developed a rugged line of cable that is especially designed to handle the everyday stress of automated machinery and equipment.

  • RoHS Compliant
  • CE
$1.50
$1.50 $1.50
Sale Sold out

Part Number: IGU-CF9-02-02-EA


Name: IGUS Chainflex CF9 24 AWG Control Cable, with 2 Conductors, Per Foot- Blue

$1.50
$1.50 $1.50
Sale Sold out
  • Premium quality, multi-conductor cables designed specially for withstanding the constant abuse, friction, and tension associated with moving Energy Chain® or cable/hose carrier systems.
  • Conductors are made with highly flexible, very fine bare copper stranding, which provides excellent strength and performance for maximum mechanical load requirements.

The Chainflex® CF9 Premium Quality Control Cable offers installers an incredibly flexible and durable control cable that is capable of surviving in extreme indoor and outdoor temperatures, while providing excellent resistance to UV, oil, and abrasion.

Jacket and insulation are constructed from a TPE blend material that provides high levels of UV, oil, and bio-oil resistance for use in both indoor and outdoor machinery, as well as construction equipment.

Highly flexible strain relief core provides inner conductors with increased tensile strength, allowing them to easily bend and flex with moving parts.

Conductors are individually protected with a thin-walled TPE blend that provides a degree of abrasion protection and oil resistance.

Outer jacket is made from halogen-free, PVC-free and Silicon-free TPE blend that provides excellent abrasion resistance and high flexibility, even in low temperatures.

Available in multiple wire gauges (2-24 AWG) and conductor counts, for use in a wide range of applications, such as:

  1. Storage and retrieval units for high-bay warehouses
  2. CNC and milling machinery
  3. Cleanrooms
  4. Ship-to-shore
  5. Outdoor construction equipment and cranes
  6. Low temperature environments

Halogen-free

PVC-free

CE rated

RoHS compliant



EU Data sheet chainflex CF9 IGUS Chainflex CF9 TPE Control Cables
