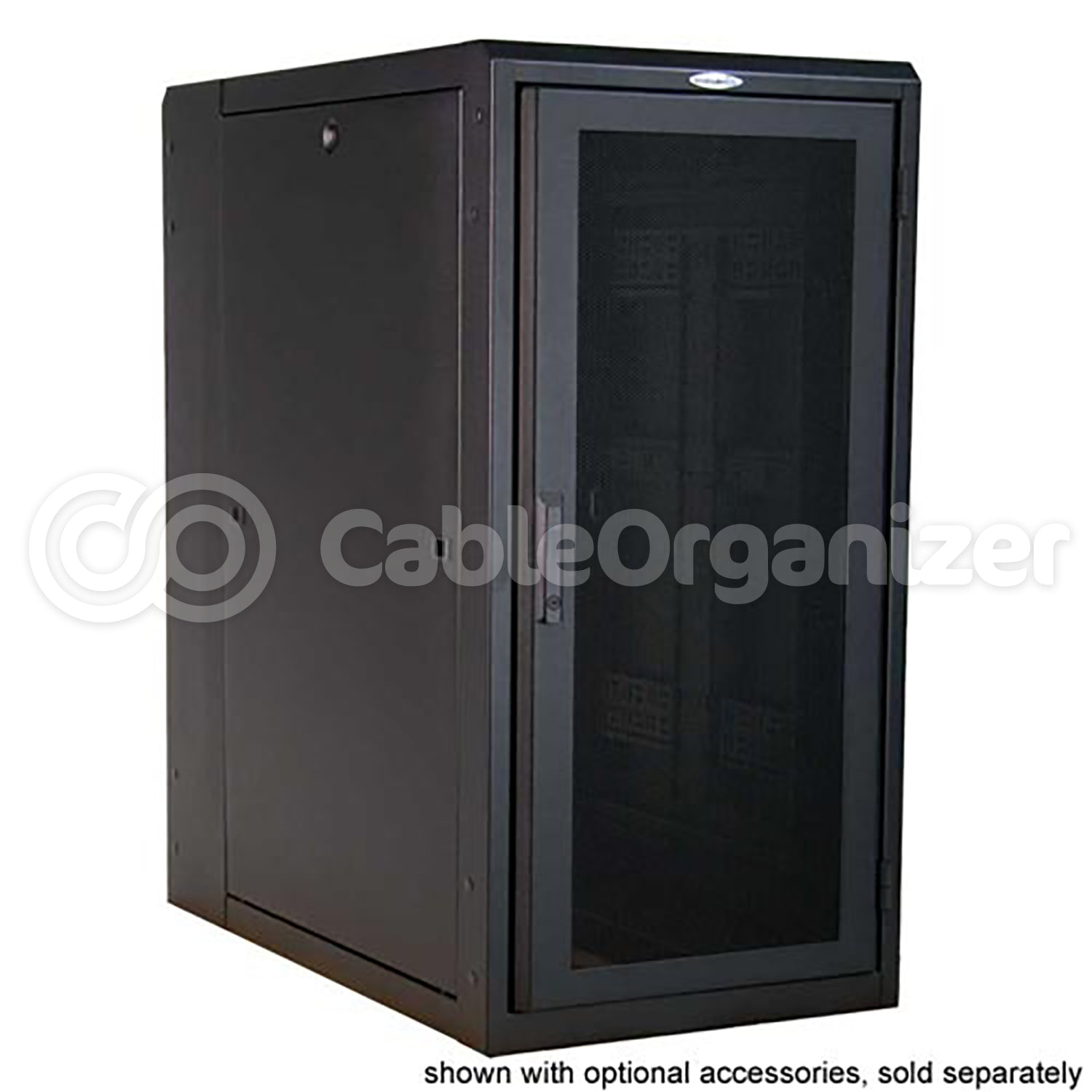

Great Lakes Customizable ES Series Enclosures

Great Lakes Customizable ES Series Enclosures

Design the Perfect Server Enclosure from the Ground Up

As the demand for better and more efficient networks continues to grow, so does the demand for a better, more versatile enclosure. Whether you're a small business looking for a simple and quick solution, or a large corporation with extensive needs, Great Lakes offers a complete line of frames and accessories to accommodate any size application. Great Lakes ES Series of innovative enclosures are engineered to meet and overcome the challenging conditions associated with today's server equipment, while accommodating the evolving needs of the future. In addition to being completely versatile, these server enclosures also support a variety of accessories from shelving to high density PDUs, anti-tip legs, copper bus bars, grounding and ganging kits, as well as a number of power and cooling solutions.

Regular price $1,383.30
Regular price $1,383.30 Sale price $1,383.30
Sale Sold out

Part Number: QGL-FE-4801ES-2442-EA

What's Special

  • Heavy-duty frames are constructed from 14-gauge steel that's formed 5 times to provide incredible strength and long-lasting durability, while supporting a maximum weight capacity of up to 2,000 lbs.
  • Extensive line of high-quality frames and accessories provides everything you need to build the ideal enclosure, tailored around your specific needs.
  • Versatile design supports a broad range of configurations such as doors, side and top panels, cable management hardware, and airflow enhancements to create a unique solution for any size application.

Features

  • Front and rear doors utilize a  three-hinge system to allow for a 180° swing ratio and provide maximum clearance for installing or maintaining equipment.
  • Heavy-duty 12 gauge rails are specifically designed to ensure that every mounting hole is usable, while featuring RMU markings for easy hardware installation.
  • Larger rear capacity provides increased room for managing bundled cables and mounting vertical PDUs with ease.
  • Up to 2 vertical cable troughs and 1 PDU, or 1 vertical cable trough and 2 PDUs can be installed in each rear corner.
  • Rails support Zero RMU mounting for 1 RU equipment.
  • Contoured mesh doors provide increased air flow, while allowing more exhaust to escape; doors also support door fans to eliminate hot spots and aid in horizontal ventilation.
  • New and innovative top cable troughs can be mounted above cable access knockouts to provide added support for cables along the bend radius.
  • Optional exhaust chimneys and fan trays serve as ducts to efficiently remove hot air from enclosure, and greatly improve airflow and cooling for hot server equipment.
  • Ladder rack brackets allow you to mount a cable ladder directly to the top of the enclosure, instead of suspending it from the ceiling.
  • Multiple top, vertical and bottom cable access knockouts provided to allow for easy cable management in any scenario.
  • Optional brush grommets are available to seal gaps in areas around cable access knockouts, and to prevent air recirculation or escape.
  • 19" EIA 310-E Compliant
  • RoHS Compliant
  • cULus listed UL 60950-1
  • Proudly made in the USA
