FSR Media Floor Boxes
FSR Media Floor Boxes

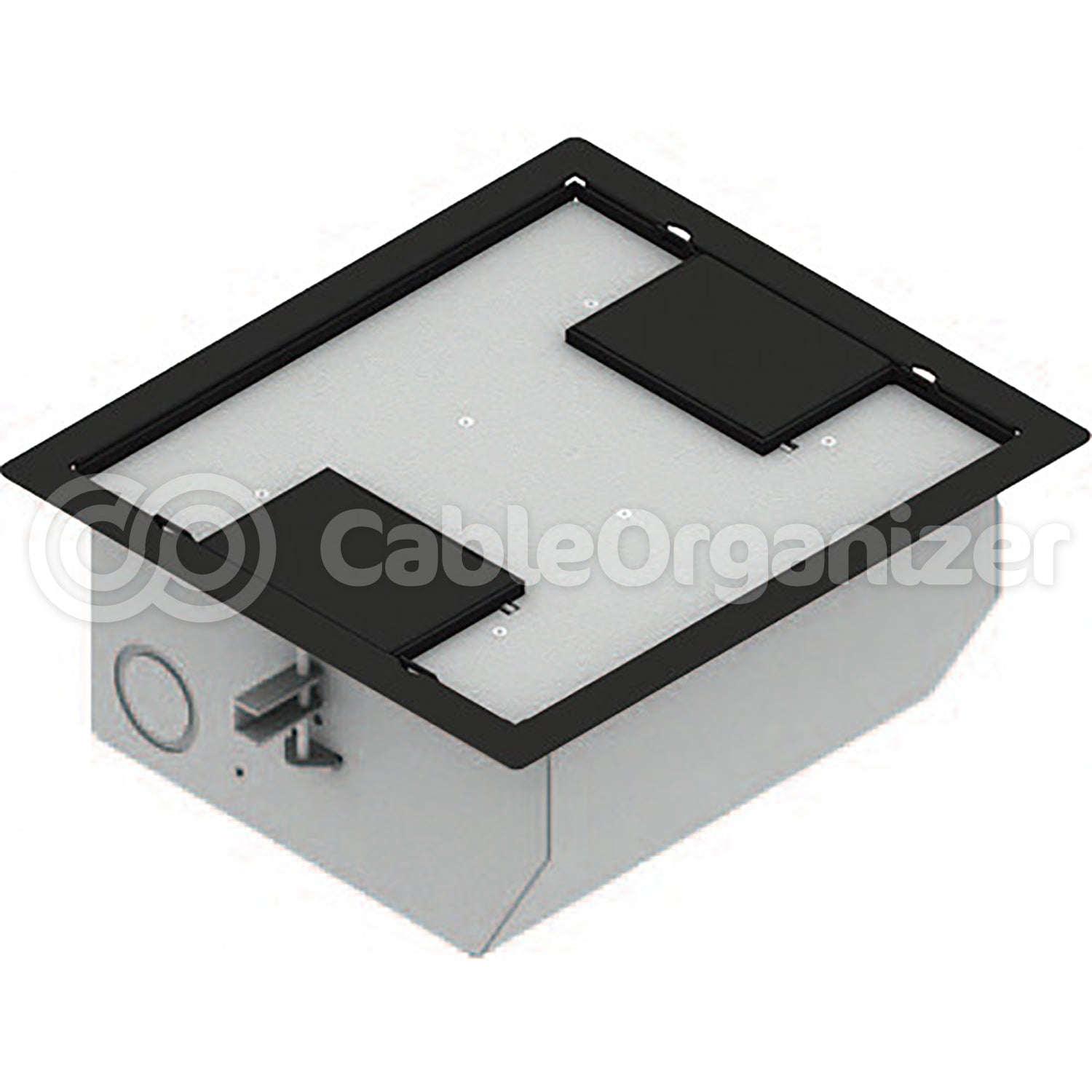

The RFL-QAV floor boxes are large floor boxes that are perfect for raised floor applications requiring audio, video, and power access in one location. These floor boxes provide additional space behind the connector plates to accommodate various interfaces, large cables, and connectors, and more. The RFL-QAV accepts standard single gang, 2-gang and 3-gang plates and will accept a 4-gang plate with a special adapter bracket and have covers and carpet trims available in your choice of 3 different colors for a fully customizable installation.
Part Number: FSR-RFL-QAV-DDBLK-EA
Couldn't load pickup availability
What's Special
What's Special
- Audio/video/power floor boxes constructed of solid 14-gauge steel for durability.
- Oversized cable door accommodates a variety of different cable types and sizes.
- Uses standard sized electrical plates and comes in 3 colors for a fully customizable installation.
- Perfect for raised floor applications requiring audio, video, and power access in one location.
Features
Features
Back Boxes have inner dimensions of 4.55" deep x 9.41" wide to accommodate just about every audio/video cable imaginable.
Mounting clamp is superiorly designed to handle a wide variety of floor thicknesses, from 1/4" to over 2".
Knockouts in various sizes are provided to accommodate metallic and nonmetallic raceway.
Available in 3 colors:
UL E171211 Listed to meet safety standards
Ideal for use in:
- Places of worship
- Meeting Halls
- Conference Rooms
- Schools
- Home Theaters
Available with:
- Single or Double Door: for installations where carpet, wood, or tile will be installed onto the cover for a more uniform look
- Solid Door: for installations where carpet, tile, or wood will not be installed on
Specifications
