FSR Floor Boxes, SmartFit

FSR Floor Boxes, SmartFit

Smart Pour Boxes and Poke-Thru Floor Boxes

FSR's SmartFit system is available in variety of pre-wired sub-plates. With many options to choose from, the SmartFit system provides you with a simple solution for your audio/video needs. There are two options for installation: a Fire Rated Poke Through (for existing construction), and a PVC Concrete Floor Pour Box (for new construction). Either option allows you to install multiple sub-plates that feature a universal cover assembly, giving you a consistent look throughout. Both are simple to install and include installation hardware.

$273.38
$273.38 $273.38
Sale Sold out
Black

Part Number: FSR-SF-BLKC-CV-EA

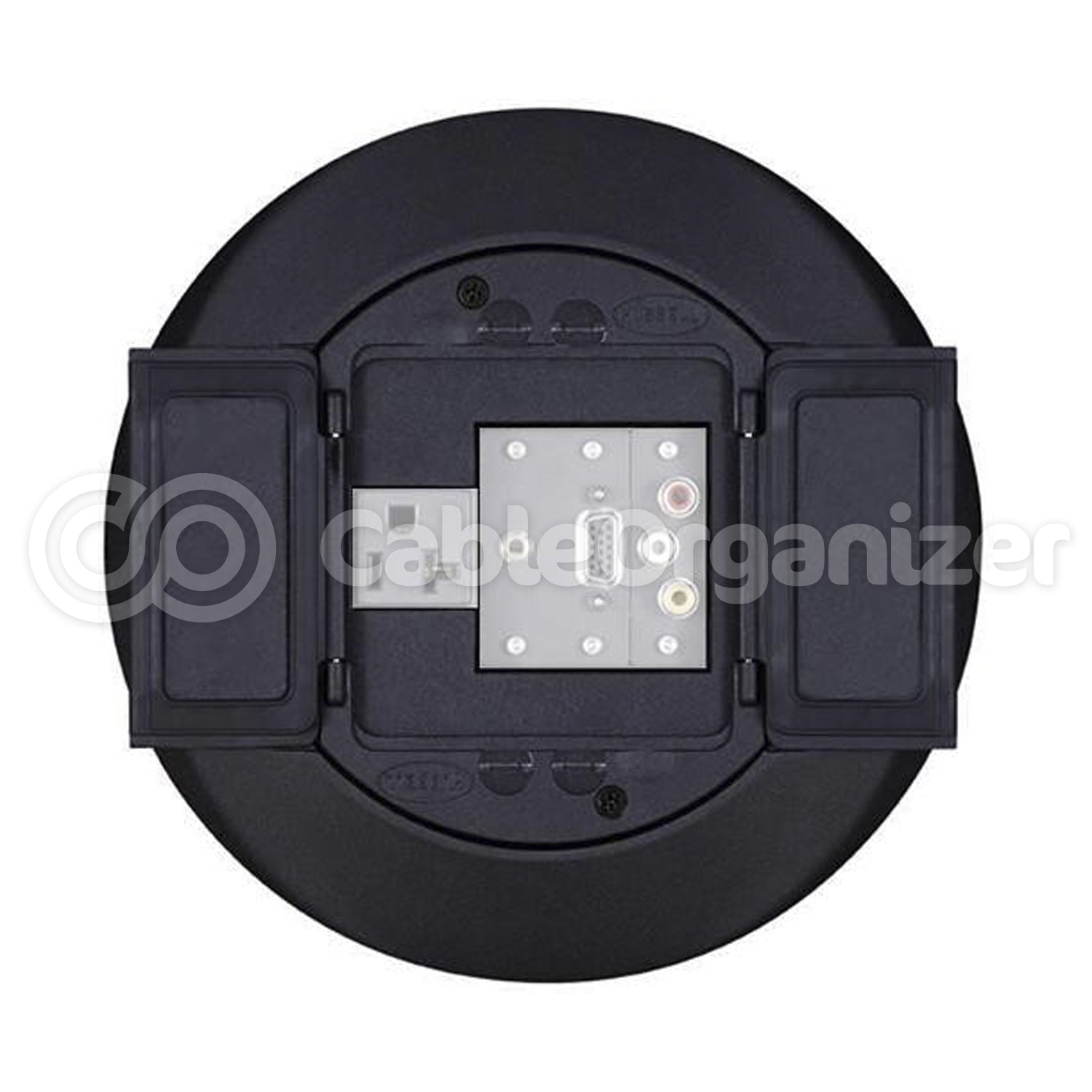

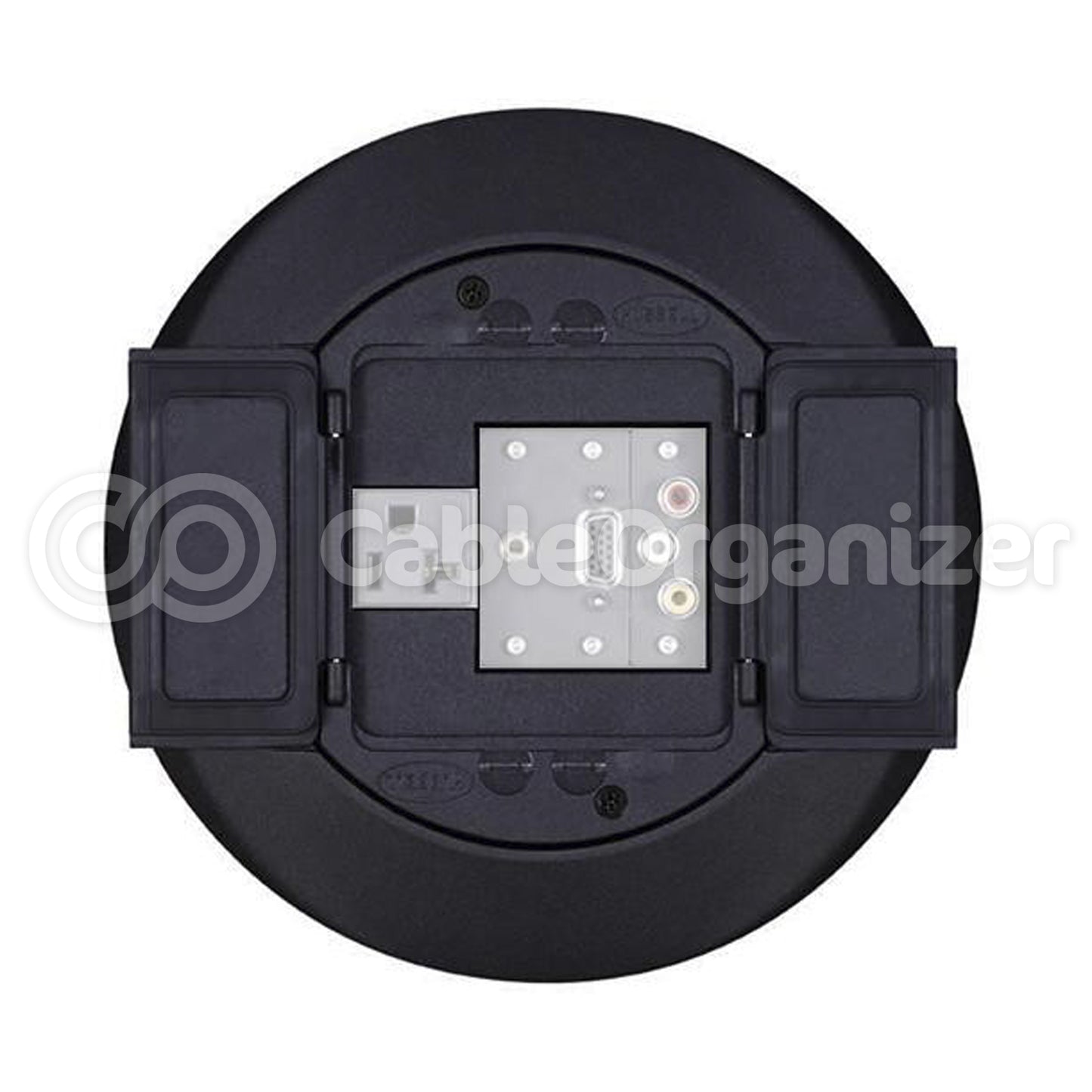

Name: SmartFit Cover for Carpet - Black

$273.38
$273.38 $273.38
Sale Sold out
  • Available with Active Computer Interface connections for A/V signals up to 150 feet.
  • Oversized conduit tubes give increased cable capacity
  • Universal covers come in brass, silver and black, to match décor.
  • Delivers uniform and professional look throughout
  • IPS insert sub-plates are pre-wired with AC power, and provide pass through connectivity with audio, video, phone, data, power, and control connectors.
  • 3 IPS sub-plate allows you to install up to 3 FSR sub plates, along with 20 amps of AC power.
  • Fire Rated Poke Through provides stationary fire barrier and accommodates concrete floor thickness from 2 1/4" to 7".
  • It is UL Listed for use in 1-4 hour rated floors.
  • PVC Pour Box is to be used in concrete pours from 3" to 6", and includes concrete cap, conduit reducers, and conduit hub plugs. The conduit hub is oversized (1 1/2"), providing increased cable capacity.
