FSR CB Series Ceiling Box

• Provides a secure, plenum & electrical rated location for mounting your IT, A/V & other infrastructure equipment.
• Disappears into the ceiling, conserving space and keeping your equipment and cables hidden from view.
• Includes two 1/2 racks (CB12) and 2 full racks (CB22) for mounting your infrastructure equipment.

• Fits inside a standard drop ceiling grid, so you don’t have to drill any holes or use any special equipment for installation.
• Constructed of sturdy 20-gauge steel for durability.
• Available in 2 sizes to accommodate your components.

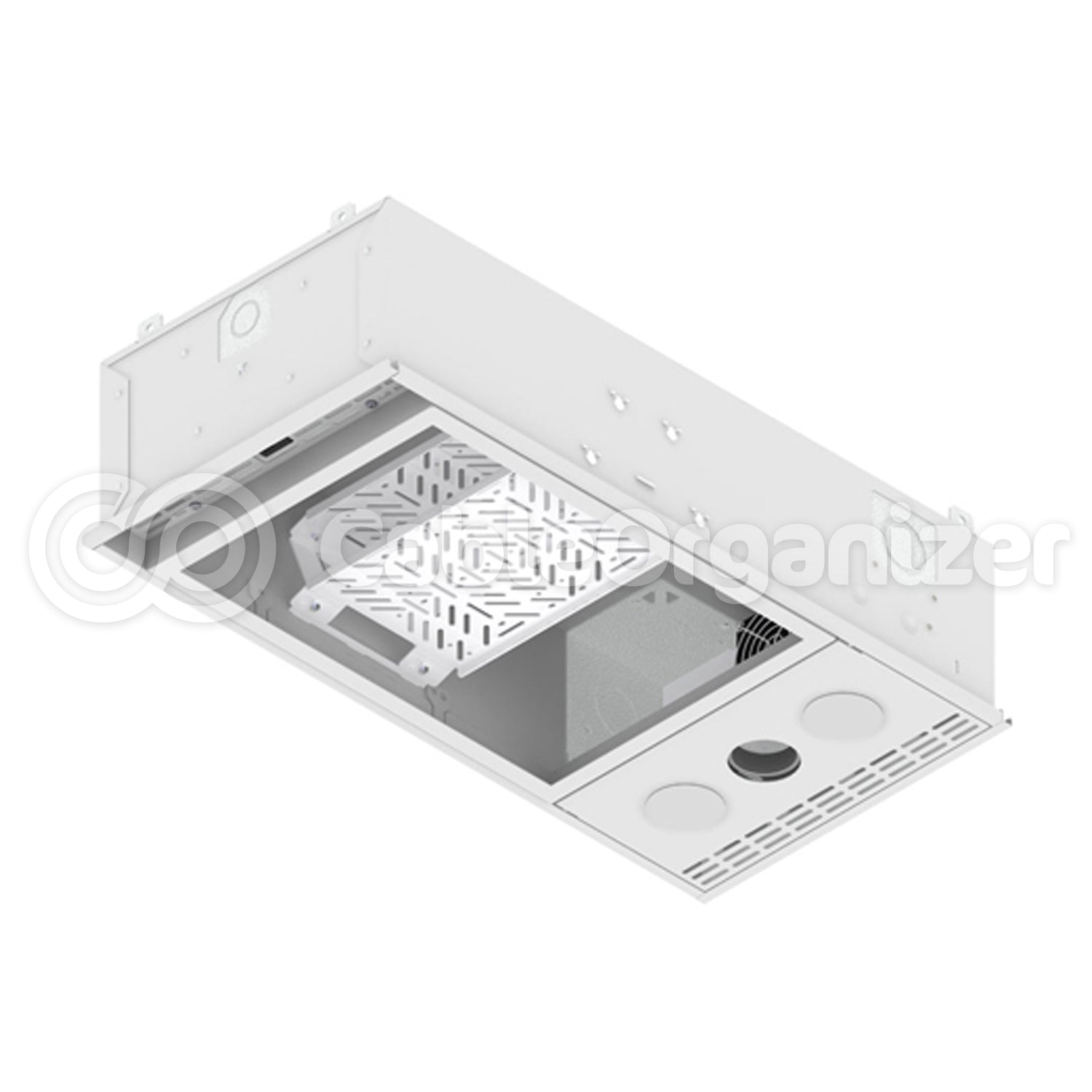

CB-12 Models:

• Equipped with 1 projector receptacle and 3 unswitched receptacles to provide power.
• 2-1/2 rack spaces give you room for a projector or other display or networking equipment.
• Optional Fan Kit is available to provide added ventilation.
• CB-12P Model also includes a pole mount, providing easy cable management for a projector up to 25lbs.

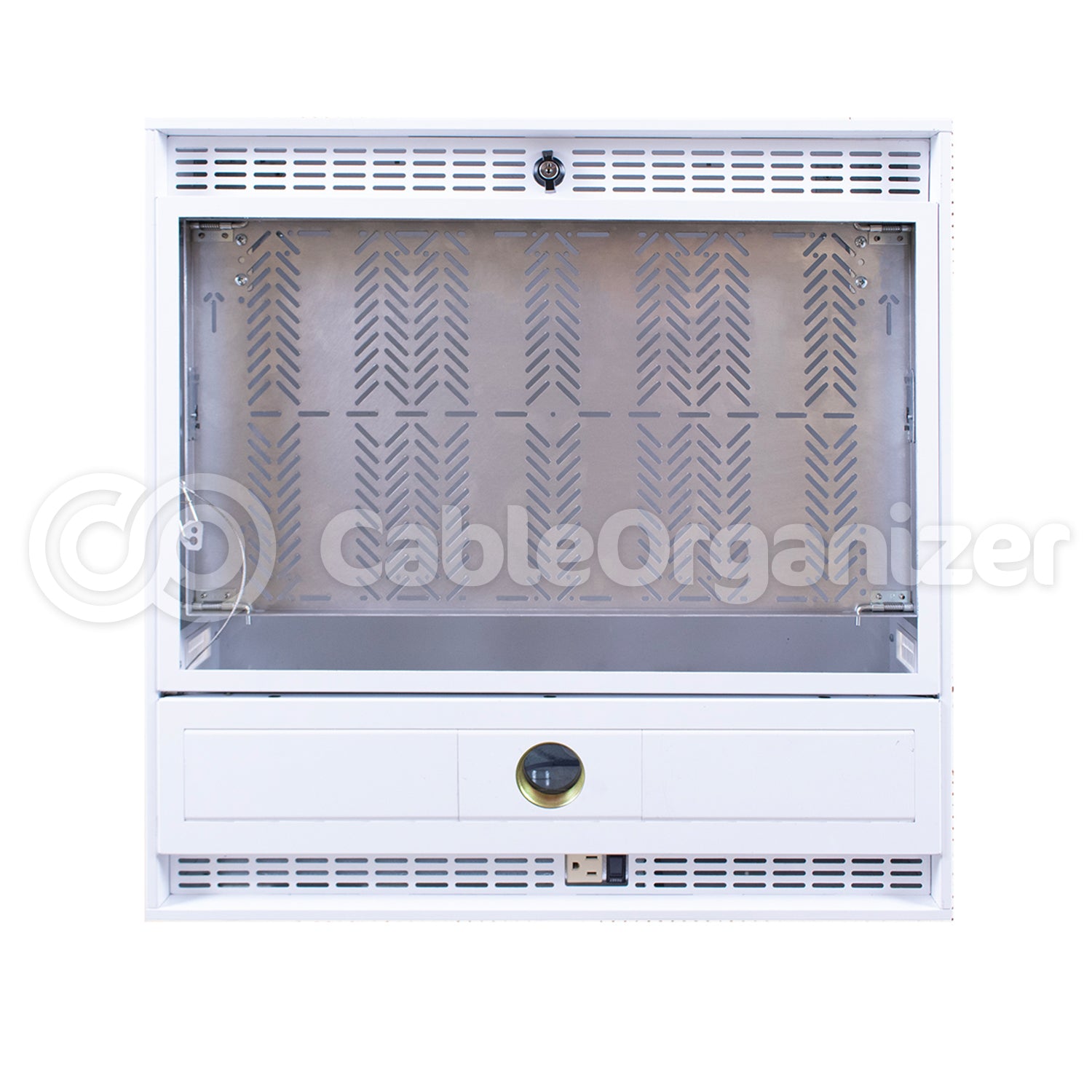

CB-22 Models:

• Equipped with 1 external projector receptacle, 2 unswitched and 3 switched ergonomically-spaced receptacles for power.
• Provides shelves for mounting 2 full or 4 half rack pieces of equipment.
• Lighted switch with circuit breaker turns all power on or off simultaneously.
• White rim-style door is included to allow you to match your existing ceiling tiles.
• CB-22P — includes pole mount for easy mounting projector components.
• CB-22S — Smart Model includes one additional feature:
• “Green” technology detects the projector's power state, and uses it as a marker to turn the switched outlets on or off.
• Includes a fan to keep the enclosure and components cool.
• CB-22SP — available with pole mount

A variety of accessories available to make your installation easier:

• CB-MNT1 — A mounting kit that uses the 4 main tabs for mounting with the use of stainless steel cable ties or Kwikloc™ fasteners. Includes (4) 100” ties
• CB-THRD — Mounting kit that accepts 1/4” and 3/8’ threaded rods, and also includes 4 hanger brackets for ceiling mounting using 1/4-20 hardware

Ideal for use in:

• Schools
• Conference/Meeting Rooms
• Training facilities
• Museums
• Houses of Worship
• Hospitals
• Hotels
