Flexo Mounting System

Flexo Mounting System

Ultimate Termination and Mounting Solution for Braided Sleeving

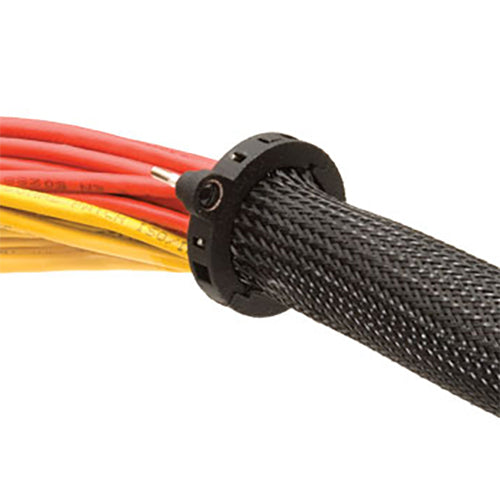

The Flexo Mounting System is an installer-friendly termination product for 1-1/2" and 1-3/4" braided sleeving that can either mount to a specialty wallplate or attach via the included screw mount for custom fabrication. This two part system requires no complicated installation methods or expensive tools; simply clamp the collar into place.

  • RoHS Compliant
  • ABYC
  • FAR-25
  • Passes UL VW-1 Flame Test
  • Prop 65 Clean
$11.75
$11.75 $11.75
Sale Sold out
Black

Part Number: FMS1.50FKBK-EU-EA


Name: Flexo Mounting System Finish Kit - EU and CN - Black

$11.75
$11.75 $11.75
Sale Sold out
This product is compatible with Flexo PET and Flexo Clean Cut in 1 1/2", 1 3/4" for a complete and professional quality cable management system.
  • Split ring collar is designed to simply snaps onto preexisting braided sleeving without requiring special tools, for fast and easy field installation.
  • Clamps directly onto braided sleeving to provide incredibly strong strain relief for delicate cabling and wires.
  • Wallplates are available in three colors (Black, White and Almond) to complement your preexisting décor while providing an outlet for your in-wall cable management.
  • Durable automotive grade glass-filled nylon construction holds up in busy environments and hectic workplaces for a lasting terminated assembly.
  • Easy clip on the backside of wallplate snaps onto collar for simple tool-less installation.
  • Collar includes universal screw mount for customized applications.

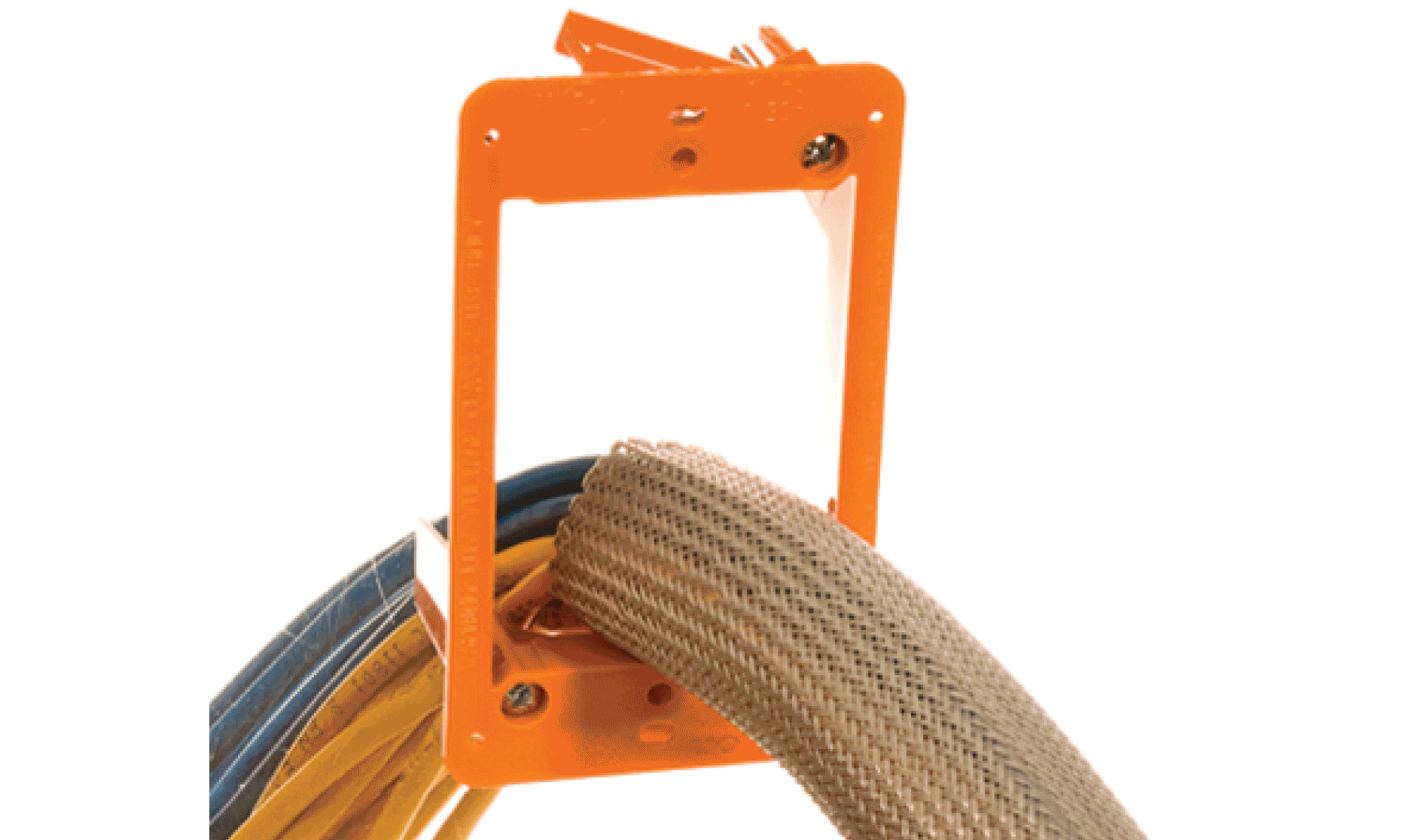

  • Wallplate mounts to a single-gang wall box for convenient installation.

Step 1: Install the sleeving over your existing wire bundle. Try to closely match the sleeving diameter to your bundle diameter so the bundle is fairly tightly managed. Leave about 2" of additional length to put through to the other side of the finished assembly.

Step 2: Open the metal retaining ring and slide it over your wire bundle.

Step 3: Install the ring INSIDE of the sleeving so that the registration teeth protrude through the sleeving.

Step 4: Take one of the locking collar halves and place it over the teeth on the retaining ring. It is important that the teeth of the retaining ring protrude into the appropriate holes in the locking collar. Hold it in place while you align the other half of the locking collar to the locking tabs on the ends of both halves.

Step 5: Squeeze the 2 halves together until both ends snap and lock together. Smooth out the sleeving to allow the wall plate to easily slide up the length of the cable bundle

Step 6: Slide the wall plate on to the assembly so that the side that faces the wall is against the locking collar. Snap the locking collar over the registration pins on the inside of the wall plate.
