Flexo F6® Flame Retardant
Flexo F6® Flame Retardant

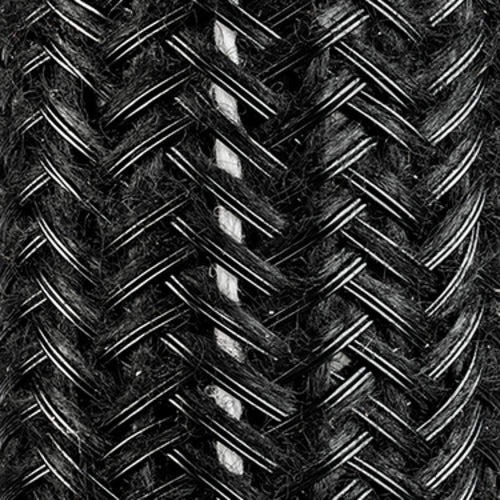

Flame spread is a vital safety consideration in applications as diverse as home built aircraft wiring and safely managing sound & lighting cables at clubs, concerts and theaters. To address these issues, and to provide unequaled flexibility and access, we have developed this unique sleeving product. Self-extinguishing F6® fully complies with UL standard VW-1. The addition of an organic flame inhibitor to our triaxially braided F6® split sleeving provides the perfect solution to a wide range of cable management needs. Easy slip over installation, complete access along the entire run, economy, durability and UL certified flame retardance make F6® ideal when the goal is to manage wires and cables safely and effectively. F6® Flame Retardant is available in Black with a White tracer identifying it as flame retardant.
Part Number: F6F0.13TB-10
Couldn't load pickup availability
Certifications
What's Special
What's Special
- Prevents flame spread in a variety of applications from aircraft wiring to concert lighting.
- Complies with UL standard VW-1
- Self-extinguishing
- Split for easy installation. No endless sliding, just wrap around!
- Retains shape and rigidity over wide operating temperature range (-70° C to 125° C).
Features
Features
- Monofilament Diameter: 0.008 - 0.015"
- Flammability Rating: VW-1
- Recommended Cutting: Hot Knife
- Colors: 1
- Minimum Continuous Temp: -94 ºF / -70 ºC
- Maximum Continuous Temp: 257 ºF / 125 ºC
- Melt Temp: 482 ºF / 250 ºC
What Are The Benefits of Using A Split Braid?
Flexo F6® is a unique split, semi-rigid side entry braided sleeve (also referred to as split loom or wrap around sleeve). F6® offers the standard protective qualities of braided sleeving with some added benefits including:

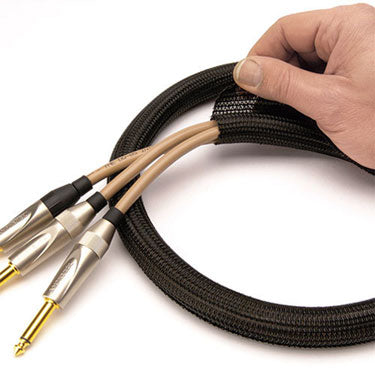

Easy Installation: Split braided sleeving can be installed easily without the need to remove or disconnect any wires or cables. The split design allows the sleeving to be wrapped around the cables, and features a self-closing construction.
Flexibility: The split design allows the sleeving to flex and bend without causing any damage to the wires or cables inside. This makes it ideal for applications where cables need to move, route around corners, or bend frequently.
Organization (& Reorganization): Split loom can bundle multiple cables together for one streamline harness while allowing cables to be added or removed without removing the split sleeving.
Specifications
