Fire Rated STI Firestop Pathway by E-Z Path®

Completely Smoke & Fire Proof Your Cables - No Maintenance Required

The E-Z Path® STI Firestop systems pathways are raceway devices that are designed to allow cables to go through fire-rated walls without the need for additional firestopping materials. These units are equipped with a built-in fire sealing system which adjusts to the number of cables that are being installed. Once installed in a fire barrier, you can easily and quickly add, remove, or reinstall fire stopping materials.

$258.11

~~$258.11~~ $258.11

Sale Sold out

Part Number: STI-EZDP133CWK-EA

Quantity

What's Special

Innovative firestopping system will adjust to the number of cables installed for a perfect fit.
No products need to be removed or replaced to maintain proper seal; the mechanical design eliminates the use of sealant, putty and other products.
Provides maximum resistance when there is fire or smoke present, whether empty or completely filled.

Features

Whether new construction or retrofit, you are assured protection from fire and smoke with every cable installation.
Superior resistance to fire and smoke seepage, unlike the standard sleeve and putty systems.
Rapidly expands once exposed to fire or high heat
Intumescent material reacts to the heat and flames by rapidly sealing the pathway and stopping the flow of fire and smoke
4 hour rated floor and wall constructions.
Remains code compliant at all times, whether it is empty or full
UL Classified and FM approved in accordance with ASTM E-814 (UL 1479)
One year manufacturer warranty

Series 22

This series is created for new or existing cable installations in walls up to 9" thick, and can accommodate up to 24 CAT 5E cables. Pathway can be mounted as a single unit in either a 2" (51 mm) round or a 1.5" (38 mm) x 1.5" (38 mm) square opening.

Series 33

This series is created for new or existing cable installations in walls up to 9" thick, and can accommodate up to 120 CAT 5E cables.

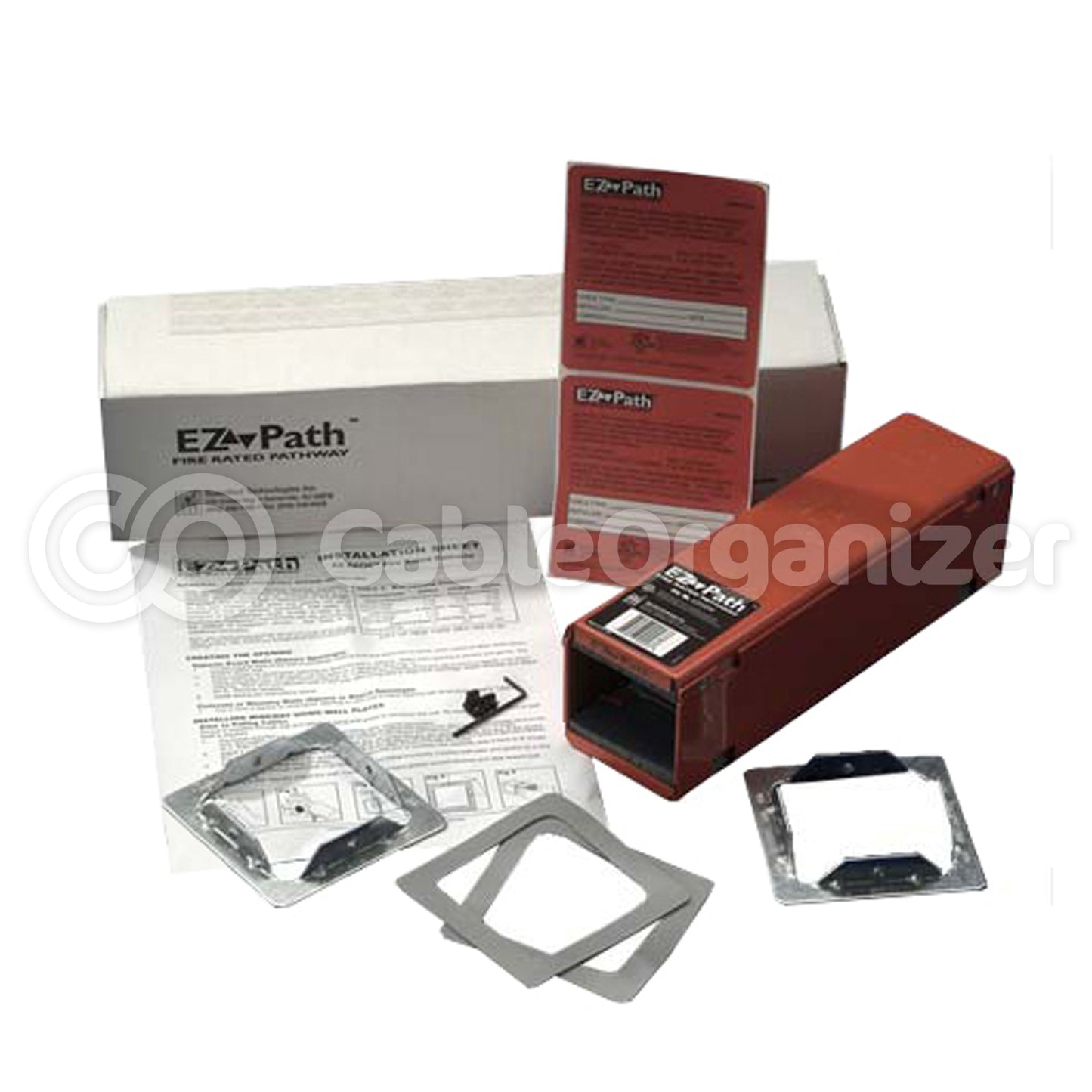

EZDP33FWS

Square wall plate allows a single series 33 pathway to be installed at 3" x 3" square opening

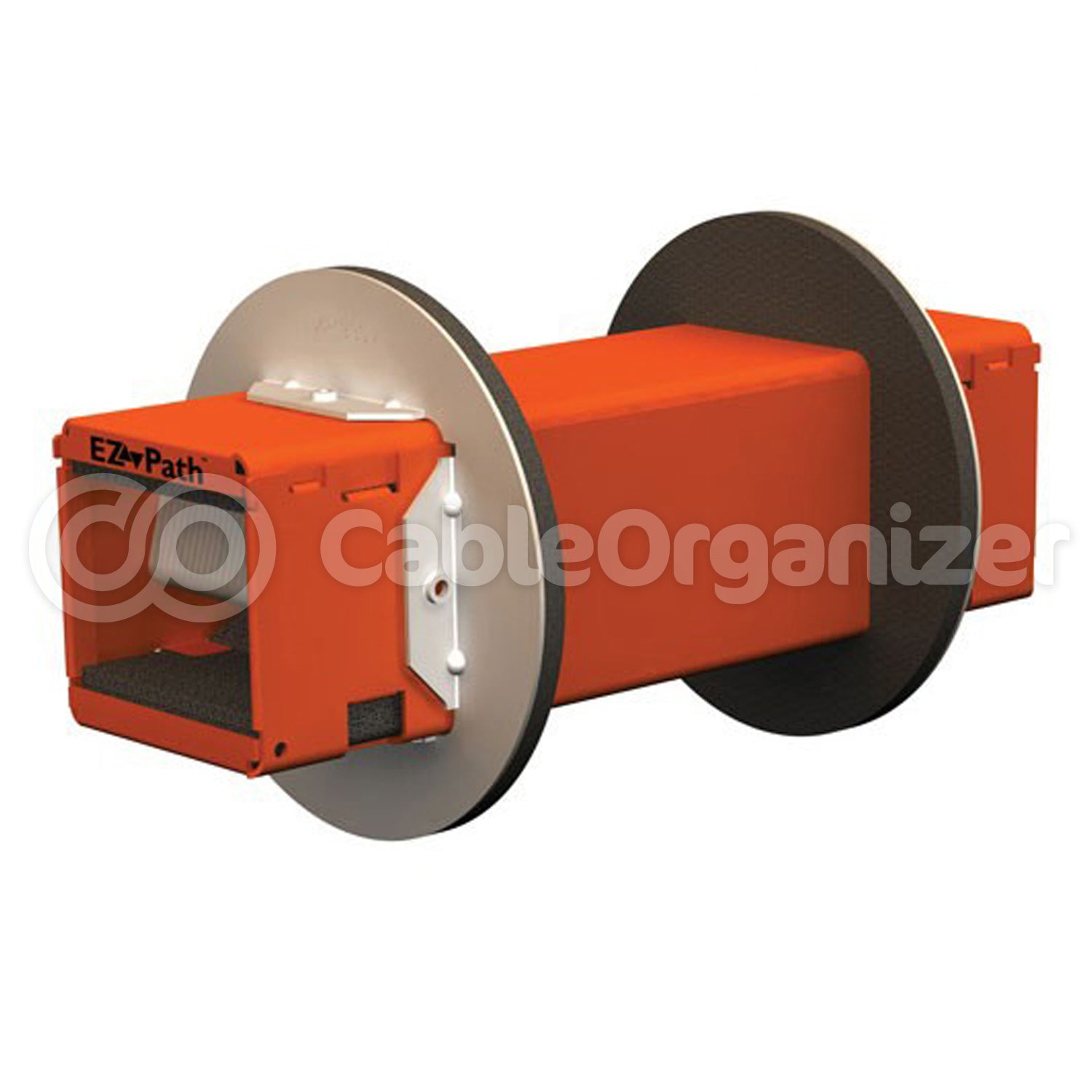

EZDP133CWK

Circular Wall Plate Kits allow a single series 33 pathway to be installed in a 4" round opening or a 3" x 3" square

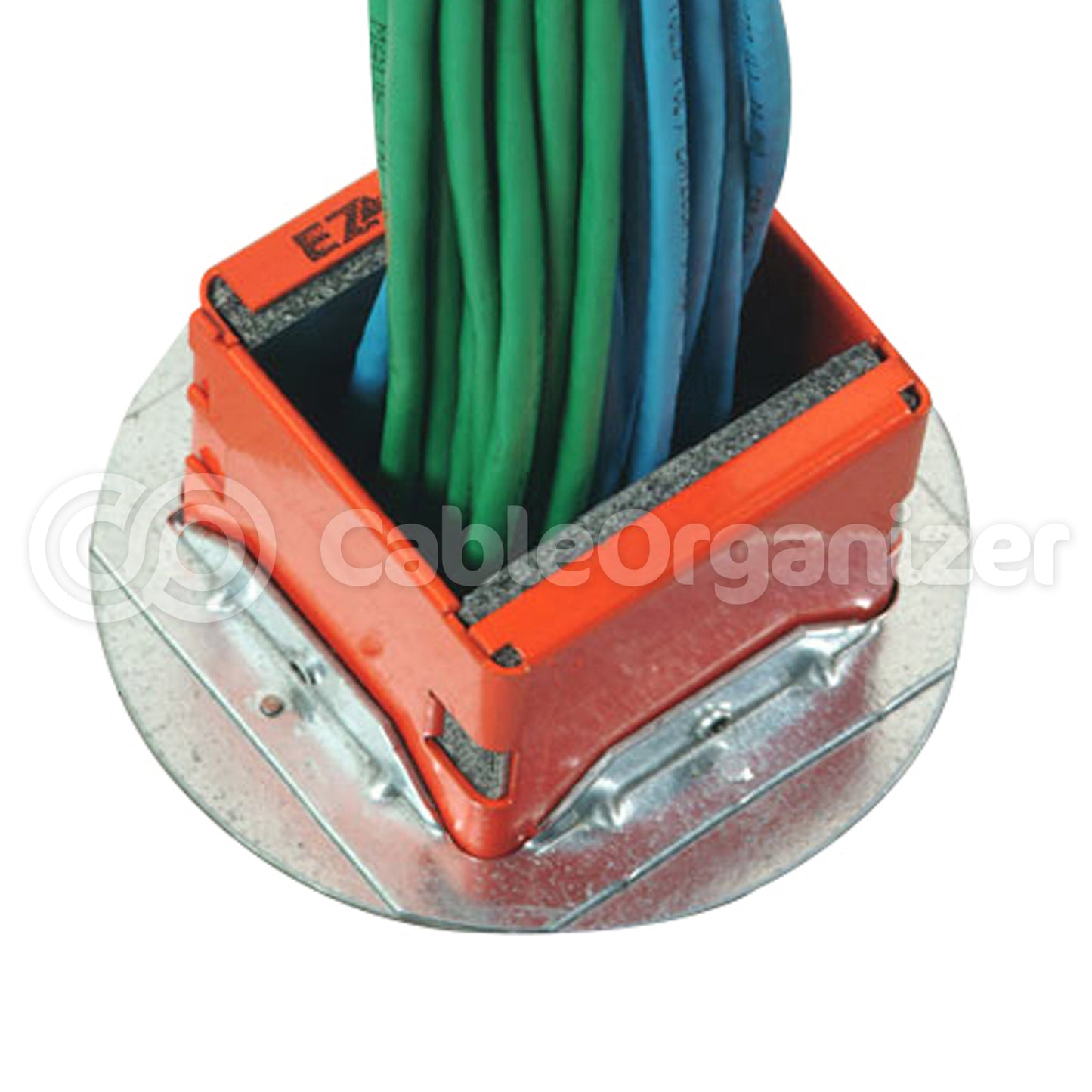

EZDP133FK

New or existing cable installations through floors using core drilled openings - kick in floor kit installs a series 33 pathway into a 4" core drilled round opening. Built-in-self locking fasteners securely wedge the pathway into the concrete.

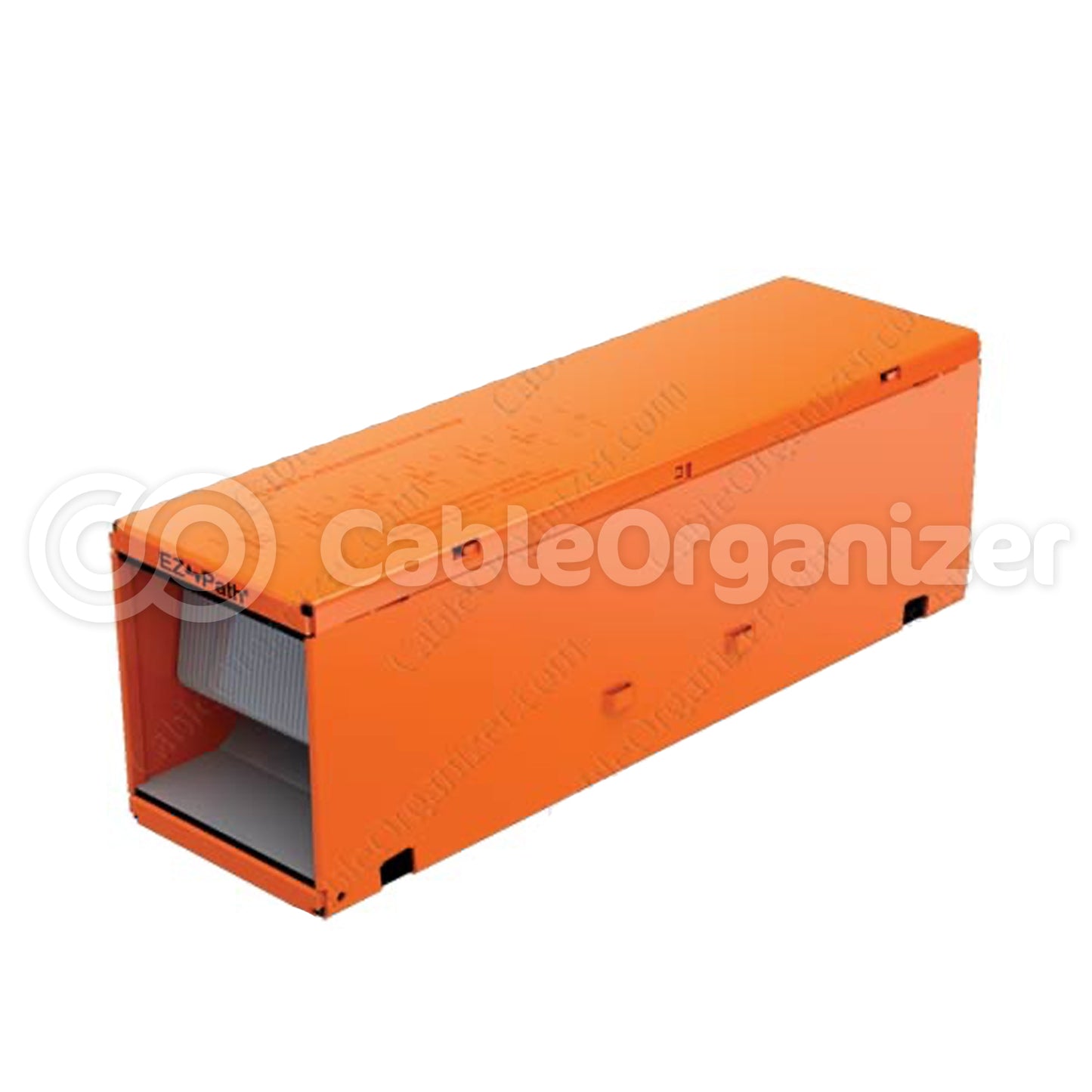

Series 44

This series is ideal for new or existing cable installations up to 10" thick. Series 44 is made for installations that pass through walls or floors, and holds up to 240 CAT 5E cables. Pathways can be ganged for additional capacity.

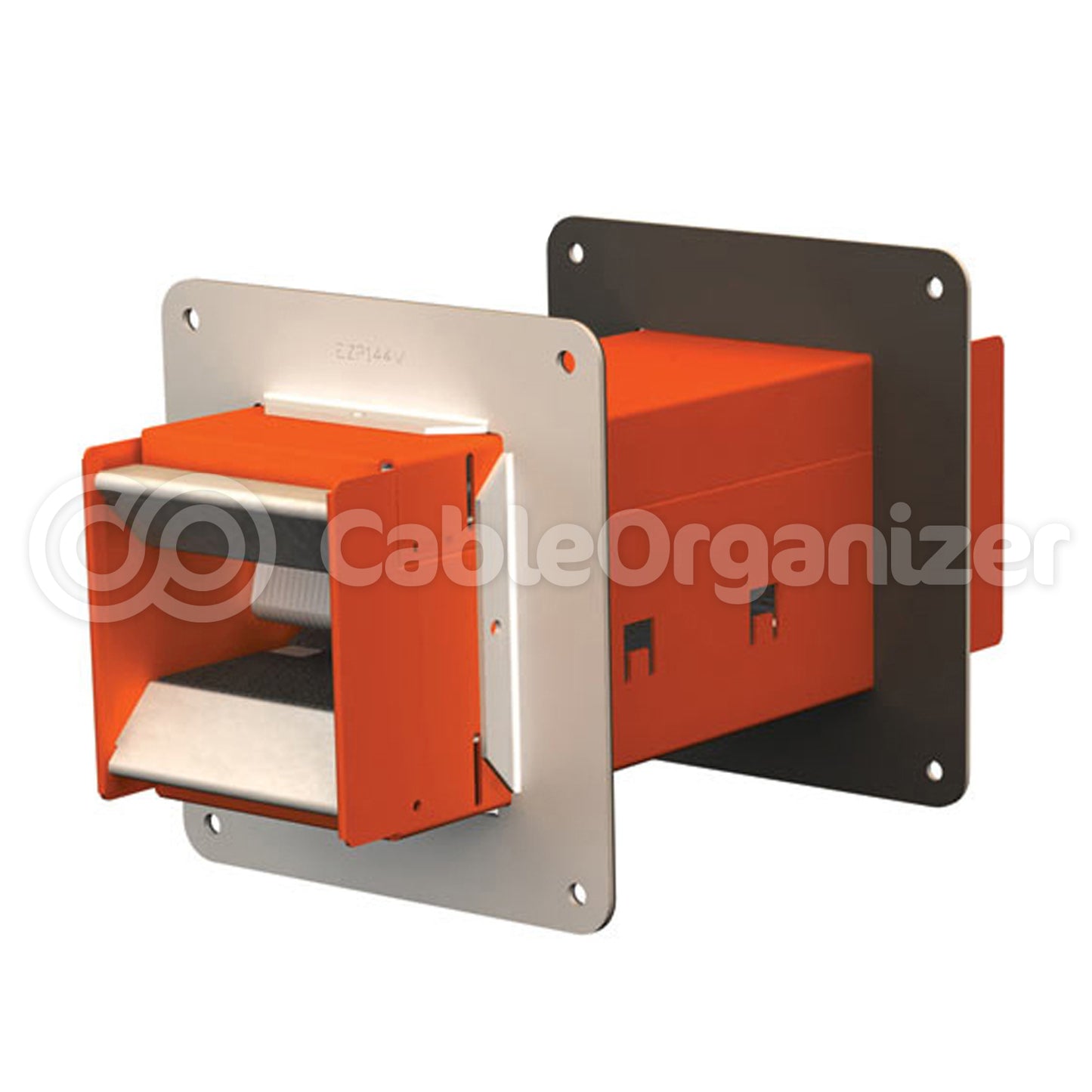

EZDP44

Designed to allow single series 44 pathway to be installed in a 6" round opening or 4-1/8" x 4-5/8" opening

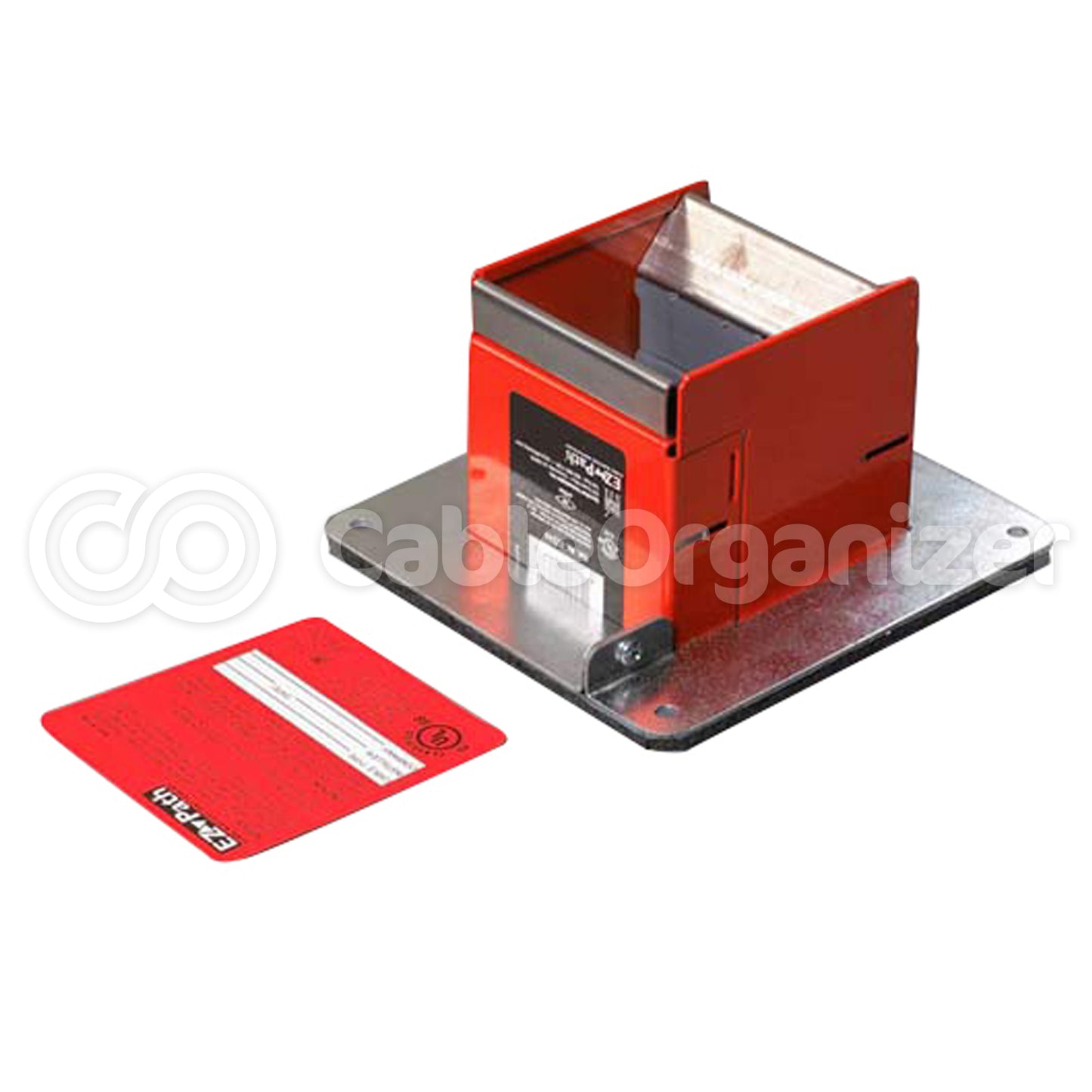

EZDP144FK

Split floor plate kit is designed to allow a single series 44 pathway to be installed in a 6" round opening or a 4 1/8" x 4-5/8" opening - perfect for already installed cables
