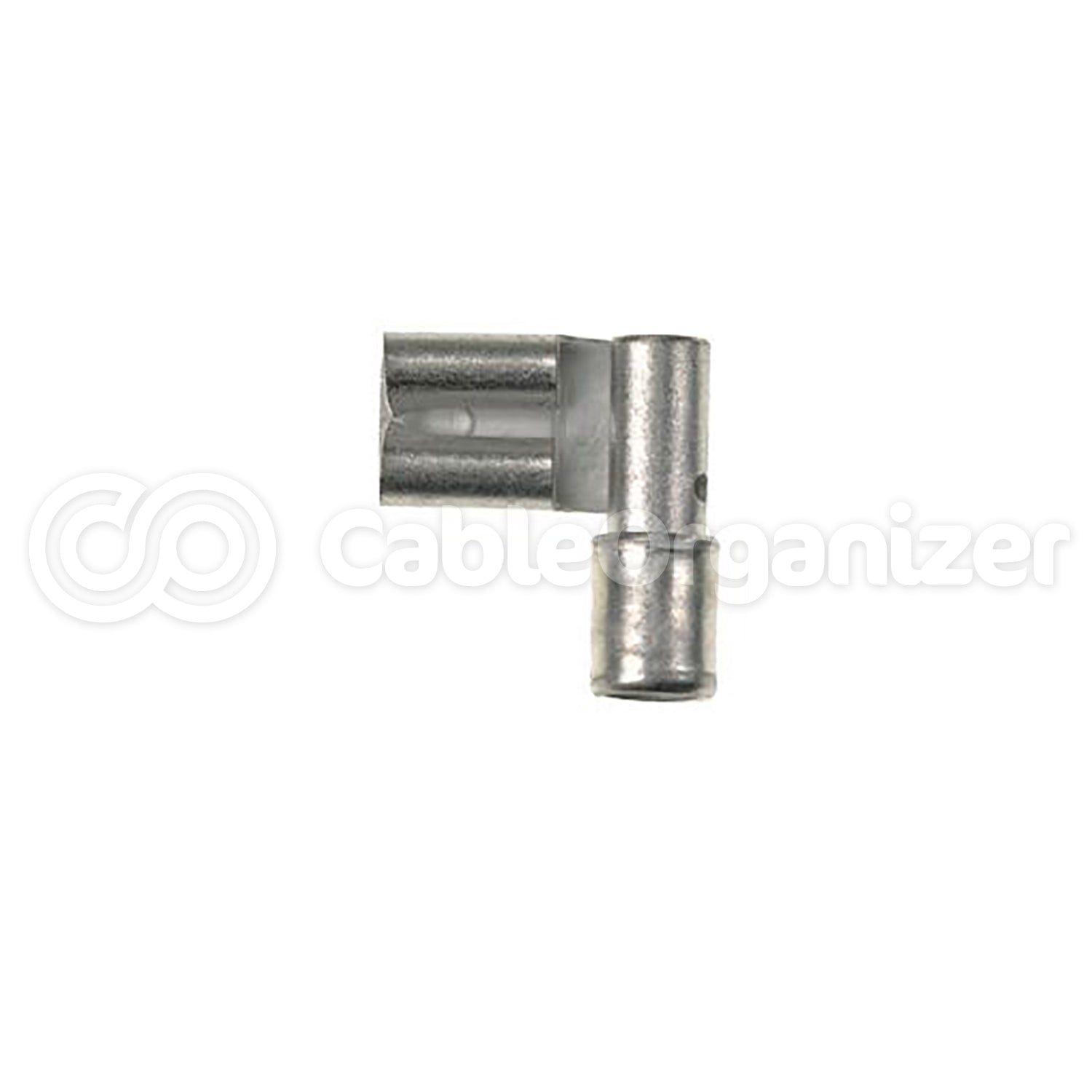

Female Disconnect, right angle, non-insulated, 12 - 10 AWG, .250 x .032 tab size
Female Disconnect, right angle, non-insulated, 12 - 10 AWG, .250 x .032 tab size
The vibration resistant female disconnect is made of brass and is tin-plated. It is non-insulated in metallic housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.61" (15.5 mm) long and 0.3" (7.6 mm) wide. The disconnect has a standard barrel configuration and a sleeved barrel. It comes in bottles of 50.
Regular price
$139.54
Regular price
$139.54
Sale price
$139.54
Unit price
per
Part Number: PAN-DR10-250-L-EA
Name: Female Disconnect, right angle, non-insulated, sleeved barrel, 12 – 10 AWG, .250 x .032 tab size.
| # | Variant ID | Image | Part # | Wire Gauge | Quantity | Price (Each) | Quantity |
|---|
