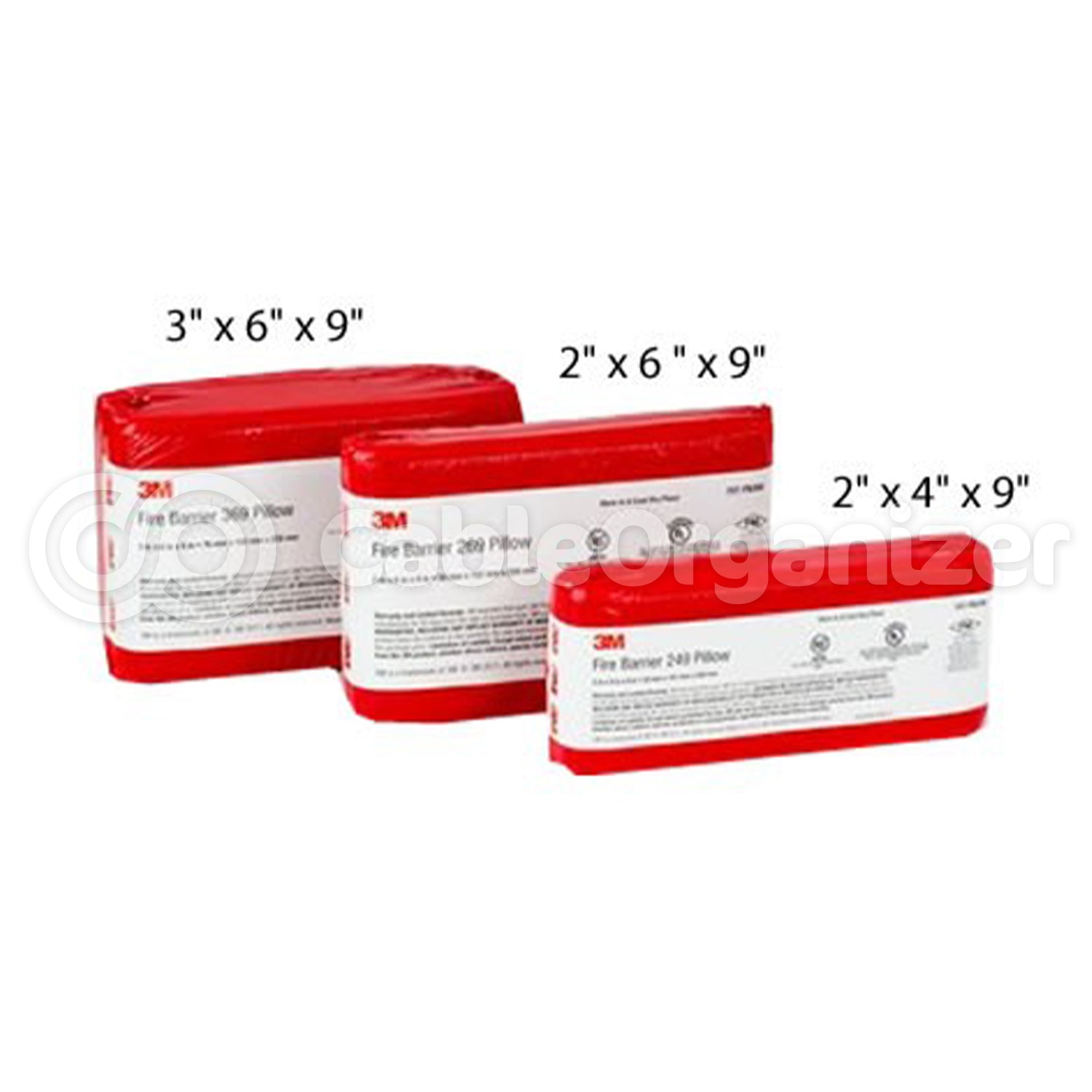

3M™ Fire Barrier Pillows

3M™ Fire Barrier Pillows

Wire Mesh is No Substitute for 3M Technology

The 3M™ Fire Barrier Pillow is a self-contained, highly intumescent product designed to firestop a wide variety of through-penetrations including cable trays (up to two per opening) and conduit and blank openings, which penetrate fire-rated construction.

Regular price $33.14
Regular price $33.14 Sale price $33.14
Sale Sold out

Part Number: FP-3M-FBP-2-4-EA

Certifications
  • UL Classified

What's Special

  • Fiber barrier pillows designed to prevent the spread of fire.
  • 3 hour UL Listed systems and tested to UL 910 flammability test.
  • UL Listed systems up to a 540 sq. in. opening
  • Easy retrofit - remove and replace pillows, as needed.

Features

During a fire, 3M™ Fire Barrier Pillow intumesces (expands) and locks itself into place, completely surrounding the penetrant(s) stopping smoke, fire and toxic gases from spreading to the next room or next floor for the rated time period. They are easy to install and great for retrofit projects. Just remove and replace pillows as needed.
3M Fire Barrier Pillows have been tested to the ASTM E 814 test criteria and have been designed to meet the intent of NEC, NFPA, SBCCI, BOCA and ICBO building codes.
The 3M™ Fire Barrier Pillows achieve up to 3 hour fire ratings when tested by Underwriters Laboratory, Inc. in accordance with ASTM E 814 (UL1479).

Graphite free composition.

Multiple sizes available.

Red Color- Easy to inspect

Specifications
