• 24-Port 100/1000 Managed SFP Switch Plus 4 10GbE SFP+ Ports
1 1

24-Port 100/1000 Managed SFP Switch Plus 4 10GbE SFP+ Ports

24-Port 100/1000 Managed SFP Switch Plus 4 10GbE SFP+ Ports

The 24 port Managed Fiber switch has the capability of Fast Ethernet, Gigabit Ethernet and 10 Gig Ethernet in one unit for solutions to most all fiber environments.

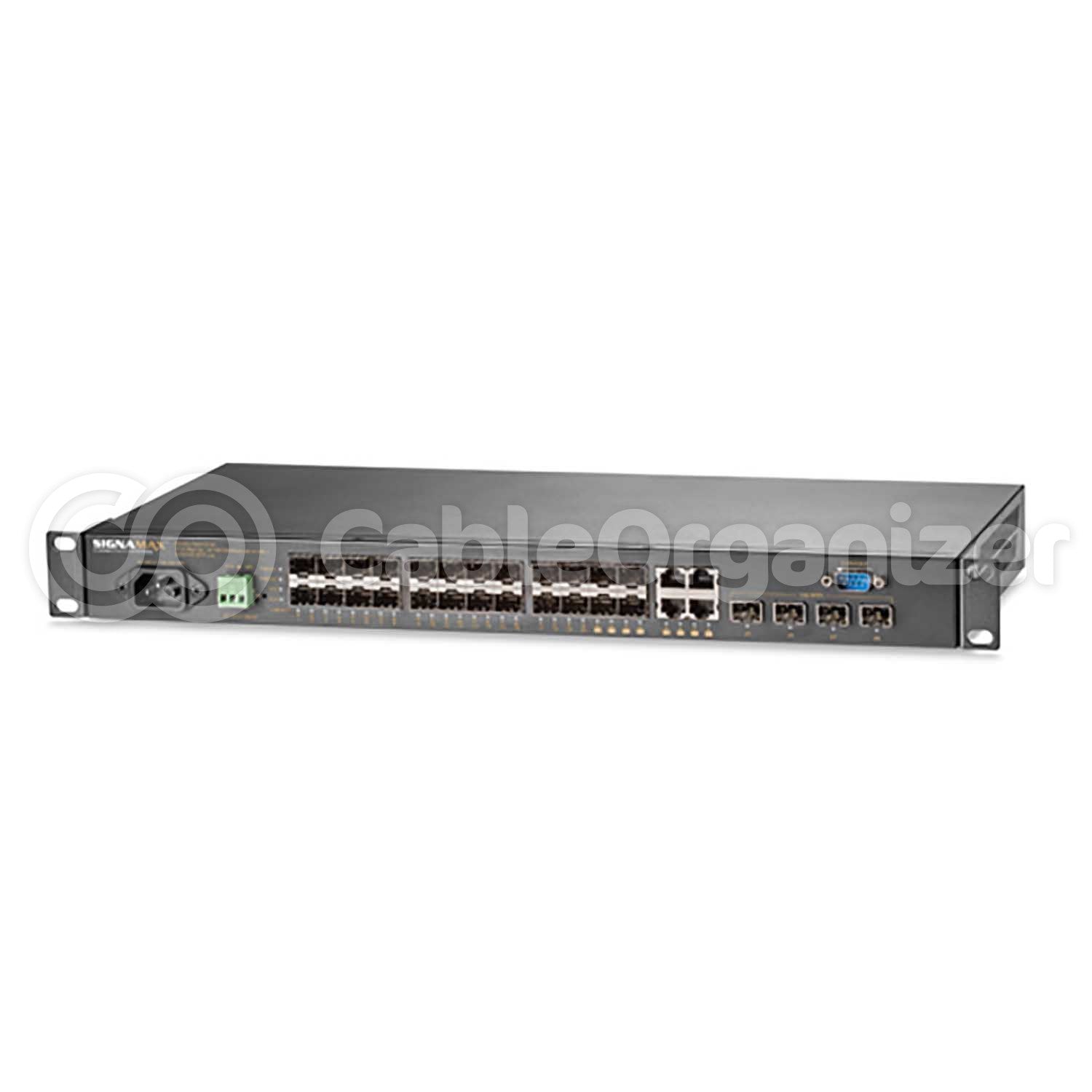

The Signamax Managed Layer 2+ SFP Ethernet Switch 24 port provides non-blocking performance for 24 100/1000Base SFP port connections, 4 of which are shared as Dual Media 10/100/1000BaseT/TX ports, plus 4-1000Base/10GB SFP+ only ports, for a total of 28 ports. The 24 SFP slots use auto-detected SFP modules for fiber optic switch interconnection at extended distances. Both ring and star Gigabit backbone network architectures are possible with full automatic failover.

$3,637.00
$3,637.00 $3,637.00
Sale Sold out

Part Number: SX-065-7890FSFPDP-EA


Name: 24 Port SFP Managed Switch with 4 1/10GSFP+ Ports

$3,637.00
$3,637.00 $3,637.00
Sale Sold out
  • Modular capability on 24 ports for Gig or Fast Ethernet SFP inserts.
  • Inserts can be Single mode, or multimode, and can even communicate over a single fiber with use of WDM SFP inserts.
  • 4 ports support 10 Gig Ethernet
  • SNMP managed switch for features like Link Aggregation for “Big Pipe” connections to servers.
  • Enhanced Layer 2+ features
  • Can be powered by either standard AC line power or DC power from Uninterruptable Power Supplies, or both, simultaneously.

Dual speed SFP+ ports for 10 Gigabit Ethernet or Gigabit Ethernet fiber connectivity.

Dual speed SFP ports for fast Ethernet or Gigabit Ethernet fiber connectivity.

Bandwidth rate control via port-policer

IEEE 802.3az Energy Efficient Ethernet standard supported.

IPv6 and s-Flow support

Dual power capability supports simultaneous AC/DC switch powering.

IEEE 802.1AB Link Layer Discovery Protocol and Media Endpoint Discovery standard supported.

Supports RSTP/MSTP/STP for Ethernet redundancy

Supports port-based VLAN and IEEE 802.1Q VLAN Tagging and GVRP

IP multicast filtering through IGMP snooping V1, V2 & V3
