Braided Metal Sleeve

Economical, Effective Electromagnetic Shielding and Puncture Protection

Regular Sleeving
BSMET025-FT
Qty:


Tubular Sleeving
BSMET0063-1000FT-TBR
Qty:

What's special about this metal braided sleeving?

  • Provides electrostatic and electromagnetic shielding
  • Attenuates electrical field interference
  • Provides enhanced abrasion and cut-through resistance when compared to thermoplastic braided sleeving (great for places where animals may be a problem)
  • Provides added shielding from radio frequency interference (RFI) in 0.5 MHz to 1.7 MHz range
  • Click for More Features
CSA ApprovedUL Recognized Component MarkPasses UL VW-1 Flame Test

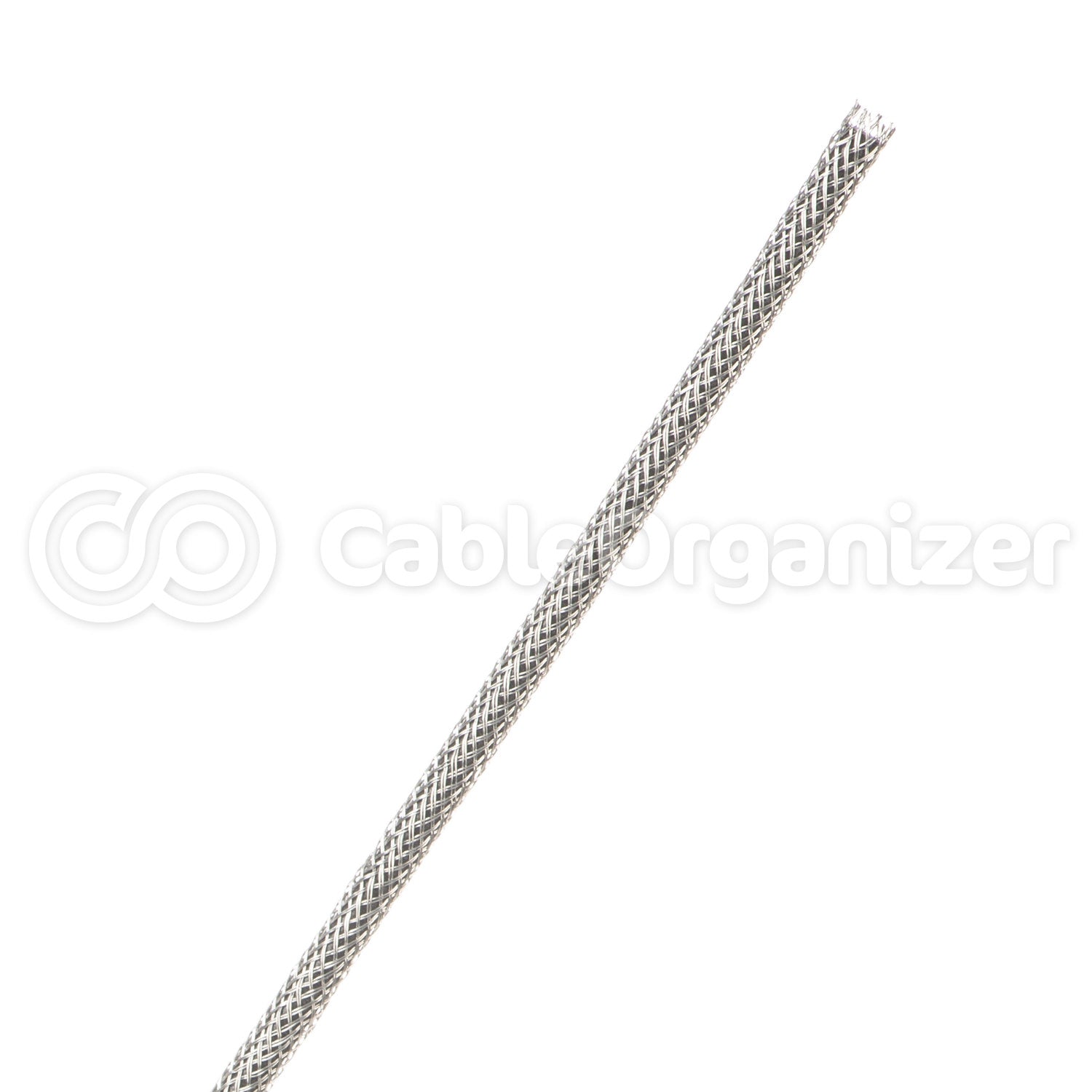

Whether you have rodents, cats, dogs, or other animals biting at your wires or a need for EMI/RFI shielding, our braided metal sleeving could be the answer for you. Braided from tin (Sn) coated copper (Cu), it is both flexible and strong, with superior EMI protection. EMI/RFI is commonly referred to as electrical noise. Tinned copper wire shielding sleeves are an ideal shielding material for short-run cables. It can provide added shielding in retrofit applications, and is much more flexible and much less susceptible to cracking than foil solutions.

Per Foot
Part #Nominal Size (Flat)# of Carriers# of EndsApprox. AWG equiv.Price
BSMET025-FT1/4"2416814
Qty:
Quick Ship
BSMET0375-FT3/8"4828812
Qty:
Quick Ship
BSMET050-FT1/2"4838410
Qty:
Quick Ship
BSMET0625-FT5/8"4838410
Qty:
Quick Ship
BSMET075-FT3/4"488647
Qty:
Quick Ship
BSMET100-FT1"488647
Qty:
Quick Ship
BULK
Ships in 4 Weeks if Item is Not in Stock
Part #Nominal Size (Flat)# of Carriers# of EndsApprox. AWG equiv.Spool LengthSpool WeightPrice
BSMET0031-500FT1/32"161624500 Ft2.5 lbs
Qty:
Manufacturer Direct
BSMET0125-500FT1/8"247218500 Ft6.5 lbs
Qty:
Manufacturer Direct
BSMET0188-500FT3/16"2412015500 Ft10.5 lbs
Qty:
Manufacturer Direct
BSMET025-500FT1/4"2416814500 Ft19 lbs
Qty:
Manufacturer Direct
BSMET0375-500FT3/8"4828812500 Ft20 lbs
Qty:
Manufacturer Direct
BSMET050-500FT1/2"4838410500 Ft26.5 lbs
Qty:
Manufacturer Direct
BSMET0625-500FT5/8"4838410500 Ft29.5 lbs
Qty:
Manufacturer Direct
BSMET075-500FT3/4"488647500 Ft33.5 lbs
Qty:
Manufacturer Direct
BSMET100-500FT1"488647500 Ft70 lbs
Qty:
Manufacturer Direct
TUBULAR BRAID
Other sizes available - Please call
Ships in 4 Weeks if Item is Not in Stock
Part #Nominal Size (Flat)# of Carriers# of EndsApprox. AWG equiv.Spool LengthPrice
BSMET0063-1000FT-TBR1/16"1632191000
Qty:
Manufacturer Direct
BSMET0172-500FT-TBR11/64"2412014500
Qty:
Manufacturer Direct
BSMET0188-500FT-TBR3/16"2414413500
Qty:
Manufacturer Direct
BSMET025-250FT-TBR1/4"2416812250
Qty:
Manufacturer Direct
BSMET0375-250FT-TBR3/8"2419211250
Qty:
Manufacturer Direct
BSMET050-250FT-TBR1/2"483369250
Qty:
Manufacturer Direct
BSMET0563-200FT-TBR9/16"483848200
Qty:
Manufacturer Direct
BSMET075-100FT-TBR3/4"488647100
Qty:
Manufacturer Direct
BSMET100-100FT-TBR1"488647100
Qty:
Manufacturer Direct
BSMET150-50FT-TBR1-1/2"---50
Qty:
Manufacturer Direct
  • Contains EMI sources
  • Superior flexibility compared to foil
  • Meets QQ-B-575B
  • 85-90% coverage at nominal ID
  • Braided from 36AWG tin coated copper wire
  • Provides superior attenuation of greater than 60 dB over wide frequencies, ranging from a few kilohertz (kHz) to several gigahertz (gHz)

Recently, a national park, and several government agencies have used our metal braided sleeving to protect fiber optics, RG-6 coaxial cable and Category 5E cables from biting rodents in the wilderness. Learn more about this surprising new life saver for animals.



MANUALS & USER GUIDES



HOW-TO CORNER -



Did you know that we can give you a quote for most of our products, including shipping?


You can also call us toll free 866-222-0030

Questions & Answers

Question:

size - What size of Braided Metal sleeve would accept 12/2 or 14/2 romex with a ground wire. Would I need 1/2 inch or larger. Thanks. Phil

Asked by Anonymous user on 02.48 PM Monday, 25 August, 2014

Answer:
  • - Thank you for your question. While 1/2" is probably enough, I would go a little bigger and you can always make it tighter.

    Fernando M. on 10.05 AM Tuesday, 26 August, 2014
Question:

I have a marine sonar transducer cable that is 3/16" with a 5/8" plug. What braided metal sleeve size will expand enough to pass the plug through and collapse to the cable size? Thanks, Wayne purdum43@aol.com

Asked by Anonymous user on 06.27 PM Sunday, 01 January, 2017

Answer:
  • - Hello Wayne, Unfortunately we do not offer an expandable metal sleeving that would fit the dimensions you are referencing.

    Taj S. on 04.25 PM Friday, 06 January, 2017
Question:

I need this to protect from squirrels on outdoor extension cord. will this work? What size would you suggest, 1"?

Asked by Anonymous user on 06.20 PM Sunday, 27 May, 2018

Answer:
  • - Hello, This is a braided metal shield, this should protect from squirrels. I would recommend 1"

    Anonymous user on 02.00 PM Thursday, 14 June, 2018
