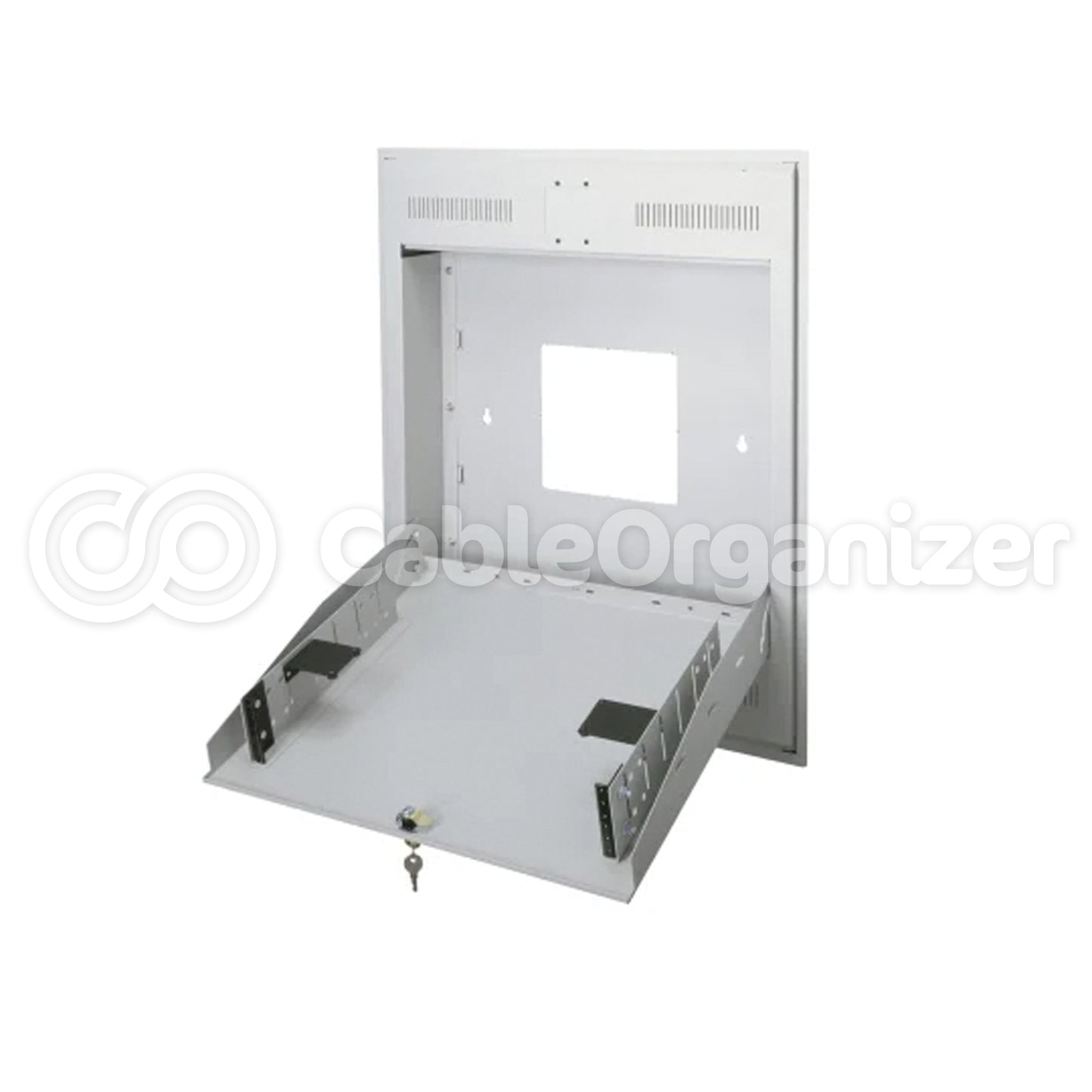

Middle Atlantic TOR Series Tilt Out Wall Rack

Low-Profile, Wall Mountable Solution For Small Media and Patching Applications


What's special about this tilt out wall box?

  • Conveniently designed to allow easy front access to equipment for maintenance and cable organization
  • Tamper resistant design keeps valuable equipment safe from unwarranted access in non-secure areas
  • Available in two styles: surface mount for fast and simple installation, or flush mount for added security and aesthetic qualities
  • Click for More Features
UL Classified

Middle Atlantic TOR Series of tilt out wall racks are ideal for small sound system, paging or patching applications. The low profile, space efficient and tamper resistant design makes this wall mountable enclosure perfect for schools, hospitals, offices, hotels or anywhere else security is needed in space restricted areas.

Flush Mount
Part #U / RmsDimensionsWeightWeight CapacityPrice
QMA-TOR-2-20RP224.5"W x 30.2"H x 4.44"D46 lbs100 lbs
Manufacturer Direct
QMA-TOR-3-20RP324.5"W x 30.2"H x 6.19"D50 lbs100 lbs
Manufacturer Direct
QMA-TOR-4-20RP424.5"W x 30.2"H x 7.92"D52 lbs100 lbs
Manufacturer Direct
Surface Mount
Part #U / RmsDimensionsWeightWeight CapacityPrice
QMA-TOR-2-20SP224.5"W x 30.2"H x 4.38"D43 lbs100 lbs
Manufacturer Direct
QMA-TOR-3-20SP324.5"W x 30.2"H x 6.13"D47 lbs100 lbs
Manufacturer Direct
QMA-TOR-4-20SP424.5"W x 30.2"H x 7.88"D50 lbs100 lbs
Manufacturer Direct
Part #DescriptionWeightPrice
QMA-TOR-PRTPartial recess trim kit for mounting between 2 x 4 studs (available only with QMA-TOR-3-20RP / QMA-TOR-4-20RP)10 lbs
Manufacturer Direct

TOR tilt out wall racks features a conveniently installed door that opens 12-20° in operation mode for easy to reach equipment controls, and opens 105° for fast servicing or installation of new equipment.

  • 19” adjustable rails are 10-32 tapped to meet TIA/EIA requirements for secure rackmount equipment installation
  • Includes clamp bars for safely securing non-rackmount equipment
  • Engineered to provide effective passive thermal management for keeping equipment cool and functional during operational and storage use
  • Abundant cable tie points provide neat and secure cable management
  • Includes an electrical box for high-voltage connections
  • Provides knockouts for cable pass-through, and universal UCP, BNC, XLR and other popular connector panels
  • Front rail is adjustable from 1-1/2" to 3-1/2" from top to accommodate handles and knobs
  • 100 lb. weight capacity for supporting heavy equipment when enclosure is in the maintenance position
  • cULus listed – UL E173107
  • TIA/EIA Compliant
  • Lifetime manufacturer's warranty


TOR series tilt out wall rack dimensions

  Recessed Mount Surface Mount
"A" Overall Depth 4.44" 6.19" 7.94" 4.38" 6.13" 7.88"
"B" Overall Position 12° 18° 20° 12° 18° 20°
Rough Opening 24.75" x 30.31" 24.75" x 30.31" 24.75" x 30.31" n/a n/a n/a
Recommended Stud Size 2" x 4" 2" x 6" 2" x 8" n/a n/a n/a
Fascia Included Included Included n/a n/a n/a
Electrical Box 4” x 2-1/8” 4” x 4” 4” x 4” 4” x 2-1/8” 4” x 4” 4” x 4”
Optional Partial Recess Fascia   QMA-TOR-PRT * QMA-TOR-PRT **
Racking Height 3-1/2” (2 space) 5-1/4” (3 space) 7” (4 space) 3-1/2” (2 space) 5-1/4” (3 space) 7” (4 space)
Mount Method Flush Mount Flush Mount Flush Mount Surface Mount Surface Mount Surface Mount

* For use when mounting in a 2x4 studded wall
** For use when mounting in a 2x4 or 2x6 studded wall


Overall Dimensions 24.5"W x 30.2"H
Rack 18 gauge steel
Ears and Fascia 16 gauge steel
10-32 Tapped Rails 11 gauge steel
Finish Neutral Putty
EIA/TIA Compliant Yes
cULus Listed UL E173107
Weight Capacity 100 lbs
