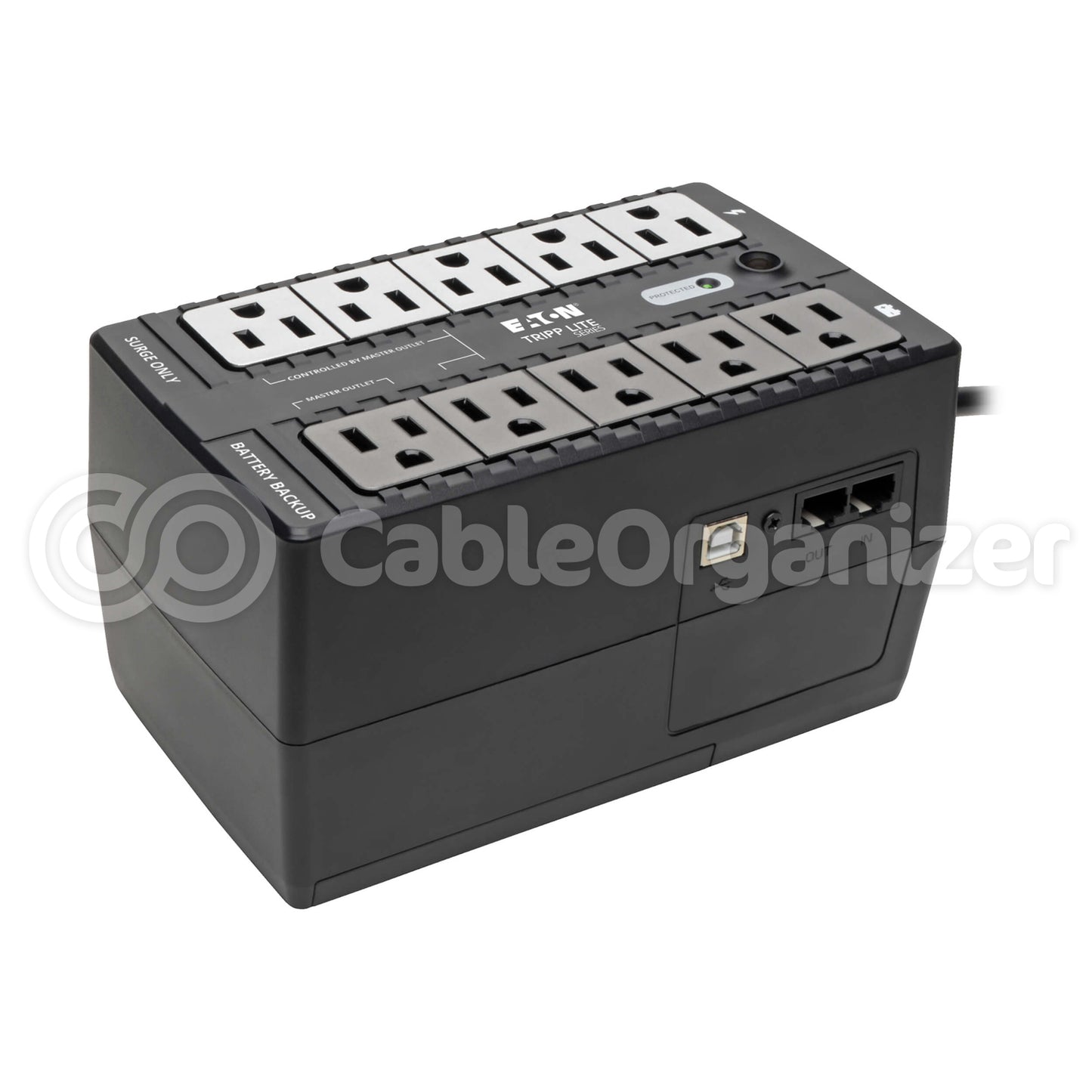

Tripp Lite Energy Savings ECO Series UPS System

Save Money, Help the Environment, and Protect Your Computer from Power Damage all in ONE

TL-ECO550UPS
Qty:

What's special about this uninterruptible power system?

  • Offers complete protection from blackouts, brownouts and transient surges to make sure your components are safe and data is not lost.
  • Promotes “green” energy savings thanks to the built-in outlets that are programmed to shut down unused computer accessories like printers or multi-media speakers when the computer is not in use.
  • Consumes less electricity than conventional UPS systems, which lowers your costs and the environmental impact.
  • Click for More Features
    •
  • RoHS CompliantULCSA ApprovedFCC

Part # Output Va Outlet Qty./Type Network Monitoring Port Dataline Suppression Price
TL-ECO550UPS 550 8 5-15R output receptacles
(4 UPS supported, 4 surge-only)		 USB (HID Compliant) Single line TEL/DSL
Qty:
Manufacturer Direct
TL-ECO750UPS 750 12 5-15R output receptacles
(6 UPS supported, 6 surge-only)		 USB (HID Compliant) Single line TEL/DSL
Qty:
Manufacturer Direct
  • Made of materials used to reduce hazardous substances and waste, and meets RoHS (Restriction of Hazardous Substances) environmental standards
  • Perfect for use with your PC, modem and peripheral equipment or accessories like scanners and printers.
  • Includes HID-compliant USB port and single line TEL / DSL line surge suppression to provide data line surge protection.
  • Ultra compact UPS supports a variety of placement options for desktop or wallmount use.
  • Saves on heat output by limiting UPS power consumption to 3 watts with only 4 BTU/hr.
  • Equipped with space-saving right angle input plug for easy use in any space.
  • Work with single line RJ11 phone suppression jacks which protect modem, fax machine, cordless phone or other accessories from surges on dialup/DSL phone connections.
  • 2 year product warranty / $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
  • Applications:
  • Basic desktop PCs
  • Home/home-office use
  • Network terminals
  • Audio/video and home entertainment systems

    •

    The Tripp-Lite Eco UPS Systems have a 99% energy efficient battery charging system that will also power down peripherals plugged into the eco sockets when not in use. Most UPS systems are notorious for being costly to operate because not only do they use energy, but they often create excess heat which means you have to spend more money on cooling costs. The ECO series creates very little heat and has innovative UPS, and features intelligent backup battery charging.





    Model #: ECO550UPS

    • Input: NEMA 5-15P (120V 15A) / Output: 8 NEMA 5-15R (120V)
    • 550VA / 300 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 17 minutes.
    • Includes 4 UPS supported outlets for computer, monitor and 2 vital system peripherals requiring uninterrupted power  and 4 Surge-only outlets for accessories not requiring battery support.
    • Three of the Surge-only outlets are designated “ECO” outlets that can be configured to automatically power-off when the computer is not in use.
    • Package Includes:
      • ECO550UPS UPS System
      • USB cable
      • Instruction manual with warranty information

    Model #: ECO350UPS

    • Input: NEMA 5-15P (120V 15A) / Output: 6 NEMA 5-15R (120V)
    • 350VA/180 watt power saving, ultra-compact green UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 12 minutes.
    • Includes 3 UPS supported outlets for computer, monitor and one vital system peripheral requiring uninterrupted power and 3 Surge-only outlets for accessories not requiring battery support.
    • Two of the Surge-only outlets are designated “ECO” outlets that can be configured to automatically power-off when the computer is not in use.
    • Package Includes:
      • ECO350UPS UPS System
      • USB cable
      • Instruction manual with warranty information

    Model #: ECO750UPS

    • Input: NEMA 5-15P (120V 15A) / Output: 12 NEMA 5-15R (120V)
    • 750VA / 450 watt UPS provides battery-derived AC output during brownouts and power failures to support entry-level desktop computer with 15 inch LCD monitor up to 45 minutes.
    • Includes 6 UPS supported outlets for computer, monitor and four vital system peripherals requiring uninterrupted power and 6 Surge-only outlets for accessories not requiring battery support.
    • Four of the Surge-only outlets are designated “ECO” outlets that can be configured to automatically power-off when the computer is not in use.
    • Package Includes:
      • ECO750UPS UPS System
      • USB cables
      • Instruction manual with warranty information
      Model # ECO350 Model # ECO550 Model # ECO750
    SYSTEM OVERVIEW
    Voltage compatibility 120VAC 120VAC 120VAC
    Frequency compatibility 60Hz 60Hz 60Hz
    OUTPUT
    Output VA 350 550 750
    Output watts 180 300 450
    Output nominal voltage 120VAC (line power mode) / 115VAC (battery mode) 120VAC (line power mode) / 115VAC (battery mode) 120VAC (line power mode) / 115VAC (battery mode)
    Output voltage regulation BATTERY MODE: PWM sine wave output 115V +/-5% BATTERY MODE: PWM sine wave output 115V +/-5% BATTERY MODE: PWM sine wave output 115V +/-5%
    Output frequency regulation LINE MODE: Passes line frequency of 60Hz +/-10%, BATTERY MODE: Inverter output regulated to 60Hz +/-.5% LINE MODE: Passes line frequency of 60Hz +/-10%, BATTERY MODE: Inverter output regulated to 60Hz +/-.5% LINE MODE: Passes line frequency of 60Hz +/-10%, BATTERY MODE: Inverter output regulated to 60Hz +/-.5%
    Outlet quantity / type 6 5-15R output receptacles (3 UPS supported, 3 surge-only) 8 5-15R output receptacles (4 UPS supported, 4 surge-only) 12 5-15R output receptacles (6 UPS supported, 6 surge-only)
    Customized load management receptacles Two of the surge-only outlets serve as designated "ECO" outlets for peripherals that are automatically turned off as the computer is shut-down or switched to standby mode(Requires use of PowerAlert software and USB cable). Three of the surge-only outlets serve as designated "ECO" outlets for peripherals that are automatically turned off as the computer is shut-down or switched to standby mode (Requires use of PowerAlert software and USB cable). Four of the surge-only outlets serve as designated "ECO" outlets for peripherals that are automatically turned off as the computer is shut-down or switched to standby mode (Requires use of PowerAlert software and USB cable).
    INPUT
    Maximum input amps 10A 10A 10A
    Input connection type 5-15P (right angle) 5-15P (right angle) 5-15P (right angle)
    Input cord length 6 ft / 1.8m 6 ft / 1.8m 6 ft / 1.8m
    Recommended Electrical Service 15A 120V 15A 120V 15A 120V
    Model # ECO350 Model # ECO550 Model # ECO750
    BATTERY
    Full load runtime 3 minutes (180 watts) 3.5 minutes (300 watts) 2.5 minutes (450 watts)
    Half load runtime 11 minutes (90 watts) 10 minutes (150 watts) 11.5 minutes (225 watts)
    DC system voltage 12VDC 12VDC 12VDC
    Typical battery lifespan 3-6 years, depending on usage 3-6 years, depending on usage 3-6 years, depending on usage
    Battery recharge rate 7 hours (10% to 90% recharge) 15 hours (10% to 90% recharge) 20 hours typical (10% to 90% recharge)
    LEDS ALARMS & SWITCHES
    Front panel LEDs 2 LEDs indicate line power, battery power status 2 LEDs indicate line power, battery power status 2 LEDs indicate line power, battery power status
    Alarms Audible alarms for ON BATTERY, LOW BATTERY and OVERLOAD status Audible alarms for ON BATTERY, LOW BATTERY and OVERLOAD status Audible alarms for ON BATTERY, LOW BATTERY and OVERLOAD status
    Switches Main power switch controls ON, OFF, SELF-TEST and ALARM CANCEL functions. Second switch enables "ECO" outlet switching Main power switch controls ON, OFF, SELF-TEST and ALARM CANCEL functions. Second switch enables "ECO" outlet switching Main power switch controls ON, OFF, SELF-TEST and ALARM CANCEL functions. Second switch enables "ECO" outlet switching
    SURGE / NOISE SUPPRESSION
    AC surge suppression 420 joules 420 joules 420 joules
    AC suppression response time Instantaneous Instantaneous Instantaneous
    Dataline suppression Single line TEL/DSL Single line TEL/DSL Single line TEL/DSL
    EMI / RFI AC noise suppression > 40dB@1MHz > 40dB@1MHz > 40dB@1MHz
    PHYSICAL
    Shipping weight 5.9 lb 7.1 lb 10.1 lb
    Shipping weight 2.7 kg 3.2 kg 4.6 kg
    Shipping Dimensions (HWD/in) 4.1 x 11.3 x 7.7 4.1 x 13 x 8 4.6 x 15.04 x 9.84
    Shipping Dimensions (HWD/cm) 10.4 x 28.7 x 19.6 10.4 x 33 x 20.3 11.7 x 38.2 x 25
    Unit weight 5.2 lb 6.6 lb 8.8 lb
    Unit weight 2.6 kg 3 kg 4 kg
    Unit Dimensions (HWD/in) 2.97 x 6.35 x 8.02 3.07 x 5.74 x 10.85 3.07 x 12.22 x 6.91
    Unit Dimensions (HWD/cm) 7.54 x 16.1 x 20.37 7.8 x 14.6 x 27.6 7.8 x 31 x 17.5
    Material of construction ABS ABS ABS
    Form factors supported Tower, Desktop, Wall-mount Tower, Desktop, Wall-mount Tower, Desktop, Wall-mount
    Integrated keyhole mounting tabs Keyhole mounting slots enable wall-mount installation Keyhole mounting slots enable wall-mount installation Keyhole mounting slots enable wall-mount installation
    Model # ECO350 Model # ECO550 Model # ECO750
    ENVIRONMENTAL
    Operating Temperature +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    Storage Temperature +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    Relative Humidity 0 to 95%, non-condensing 0 to 95%, non-condensing 0 to 95%, non-condensing
    Line mode BTU/hr. (Max.) 4 BTU/hr. / 99% line mode efficiency (fully charged battery) 4 BTU / Hr. / 99% line mode efficiency (fully charged battery) 4 BTU/Hr. / 99% line power efficiency (fully charged battery)
    COMMUNICATIONS
    Network monitoring port USB (HID Compliant) USB (HID Compliant) USB (HID Compliant)
    Software and cabling included Includes USB interface cable, PowerAlert software available via free download Includes USB interface cable, PowerAlert software available via free download Includes USB interface cable, PowerAlert software available via free download
    WatchDog compatibility Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
    LINE / BATTERY TRANSFER
    Transfer time from line power to battery mode AC to battery mode: 4 milliseconds / Battery to AC mode: 3 milliseconds AC to battery mode: 4 milliseconds / Battery to AC mode: 3 milliseconds AC to battery mode: 6 milliseconds / Battery to AC mode: 3 milliseconds
    Low voltage transfer to battery power Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher Switches to battery power as line voltage decreases to 99 volts or less. Resets back to line power mode as line voltage increases to 104V or higher
    High voltage transfer to battery power Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decreases to 135V or lower Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decreases to 135V or lower Switches to battery power as line voltage increases to 139V or higher. Resets back to line power mode when line voltage decreases to 135V or lower
    Model # ECO350 Model # ECO550 Model # ECO750
    SPECIAL FEATURES
    Cold Start Yes, inverter can be "cold started" to enable temporary AC output during a power failure Yes, inverter can be "cold started" to enable temporary AC output during a power failure Yes, inverter can be "cold started" to enable temporary AC output during a power failure
    Appearance Attractive black ultra-compact housing Attractive black ultra-compact housing Attractive black ultra-compact housing
    CERTIFICATIONS
    Certifications Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class B (EMI), FCC Part 68 / Industry Canada (telecommunication), RoHS (Restriction of Hazardous Substances) Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class B (EMI), FCC Part 68 / Industry Canada (telecommunication), RoHS (Restriction of Hazardous Substances) Tested to UL1778 (USA), CSA (Canada), NOM (Mexico), Class B (EMI), FCC Part 68 / Industry Canada (telecommunication), RoHS (Restriction of Hazardous Substances)
    WARRANTY
    Product warranty 2 years 2 years 2 years
    Connected equipment insurance (USA and Canada Only $100,000 connected equipment insurance (USA, Puerto Rico, and Canada only) $100,000 connected equipment insurance (USA, Puerto Rico, and Canada only) $100,000 connected equipment insurance (USA, Puerto Rico, and Canada only)
    Optional coverage Optional 3 and 5 year on site or factory warranties available Optional 3 and 5 year on site or factory warranties available Optional 3 and 5 year on site or factory warranties available for select opportunities



    Estimated Runtime - Load in Watts

    PART # 20W 40W 60W 80W 100W 120W 140W 160W 180W 200W 260W 300W 340W 400W
    TL-ECO350UPS 62 28 17 11 8.3 6.3 5.0 4.0 3.0 - - - - -
    TL-ECO550UPS 109 50 31 22 16 - 10 - - 6.3 4.3 3.5 - -
    TL-ECO750UPS 194 92 57 40 31 - 20 - - 13 7.2 5.5 4.3 3.2
