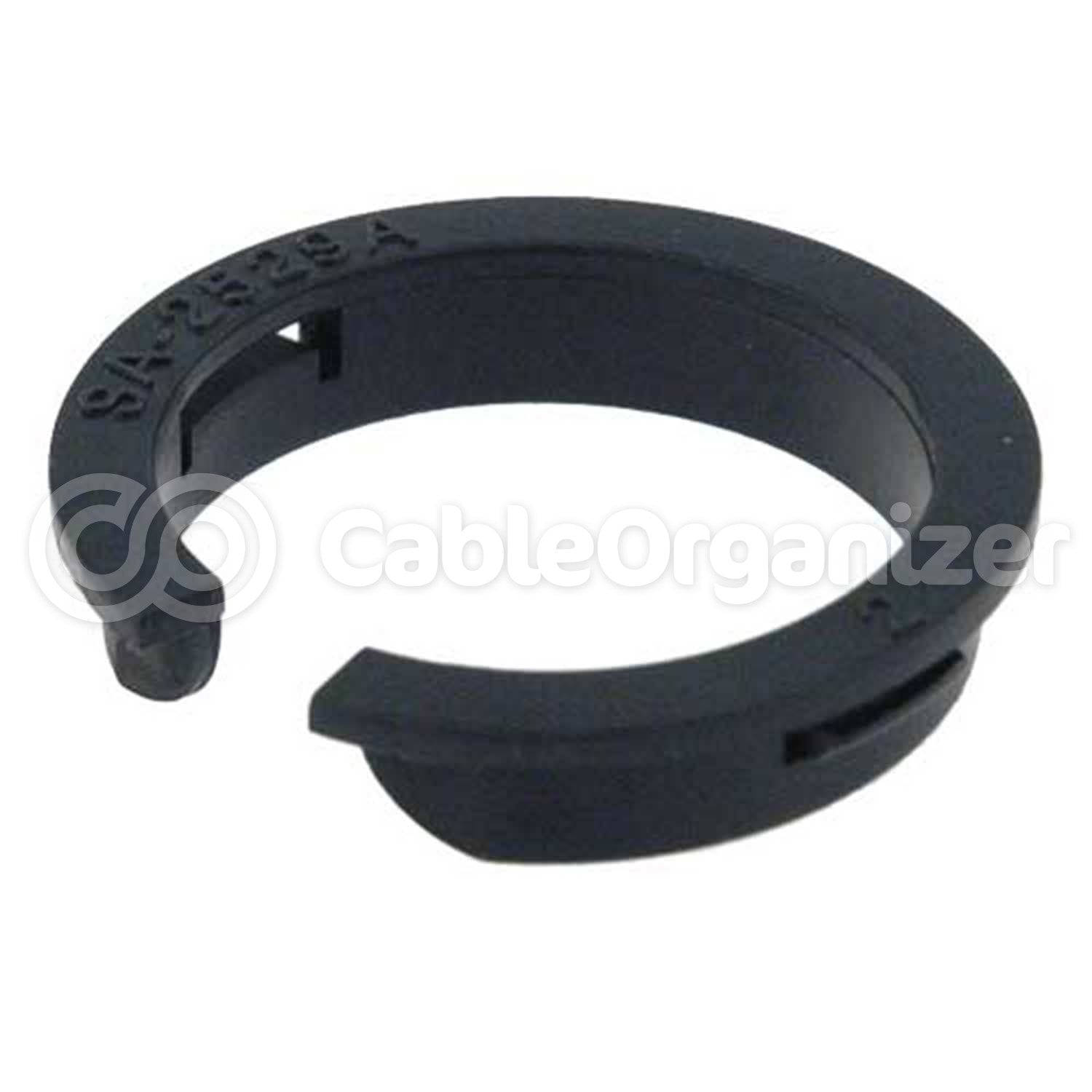

Open Snap-in Bushing (A Series)

Simple Installation Protects Cable Bundles

RI-PGSA-1013A-10
Qty:

What's special about these bushings from Richco?

  • Split design allows for installation into pre-existing holes.
  • Offers protection to cable bundles and wires.
  • Available in packages of either 10 or 1,000
  • Click for More Features

The RICHCO® Open Snap-in Bushing (A Series) has a split design to allow side entry of wire or cable bundles. The split design also accommodates a retro-fit installation on pre-assembled harnesses. May be installed into holes that already contain wires.

Please Note: These products ship in 5 business days

Part # Panel Thickness Range Hole Diameter Quantity / Pack Shipping Weight Color Price / Pack
RI-PGSA-1013A-10 0.039" - 0.059"
(1.0mm - 1.5mm)		 0.512" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-1013A-1000 0.039" - 0.059"
(1.0mm - 1.5mm)		 0.512" 500 3.0 lbs Black
Qty:
Manufacturer Direct
RI-PGSA-1316A-10 0.039" - 0.055"
(1.0mm - 1.4mm)		 0.630" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-1519A-10 0.039" - 0.059"
(1.0mm - 1.5mm)		 0.748" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-1519A-1000 0.039" - 0.059"
(1.0mm - 1.5mm)		 0.748" 500 3.0 lbs Black
Qty:
Manufacturer Direct
RI-PGSA-1822A-10 0.031" - 0.063"
(0.8mm - 1.6mm)		 0.866" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-1822A-1000 0.031" - 0.063"
(0.8mm - 1.6mm)		 0.866" 500 3.0 lbs Black
Qty:
Quick Ship
RI-PGSA-2024A1-10 0.031" - 0.039"
(0.8mm - 1.0mm)		 0.945" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-2024A-10 0.039" - 0.047"
(1.0mm - 1.2mm)		 0.945" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-2024A-1000 0.039" - 0.047"
(1.0mm - 1.2mm)		 0.945" 500 3.0 lbs Black
Qty:
Manufacturer Direct
RI-PGSA-2327A-10 0.016" - 0.039"
(0.4mm - 1.0mm)		 1.07" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-2327A-1000 0.016" - 0.039"
(0.4mm - 1.0mm)		 1.07" 1,000 3.0 lbs Black
Qty:
Manufacturer Direct
RI-PGSA-2529A-10 0.016" - 0.043"
(0.4mm - 1.1mm)		 1.142" 10 0.5 lb Black
Qty:
Quick Ship
RI-PGSA-2529A-1000 0.016" - 0.043"
(0.4mm - 1.1mm)		 1.142" 1,000 3.0 lbs Black
Qty:
Manufacturer Direct
  • Black Nylon 6/6
  • RMS-01
  • Available in Quantity (10) or Quantity (1,000) packages

    •

    open snap-in bushing schematic



    Part # Panel Thickness
    Range    		 Hole Diameter Approx. Hole Diameter "A" Ref. Max Holding Bundle Dia. "B" "C"
    RI-PGSA-1013A 0.039"-0.059" (1.0mm-1.5mm) 0.512" (13.0048 mm)

    0.512" = 1/2"

    		 0.61" (15.5mm) 0.38" (9.6mm) 0.21" (5.4mm)
    RI-PGSA-1316A 0.039"-0.055" (1.0mm-1.4mm) 0.630" (16.002 mm)

    0.630" = 5/8"

    		 0.72" (18.4mm) 0.49" (12.5mm) 0.21" (5.4mm)
    RI-PGSA-1519A 0.039"-0.059" (1.0mm-1.5mm) 0.748" (18.999 mm)

    0.748" = 3/4"

    		 0.86" (21.8mm) 0.59" (14.9mm) 0.22" (5.7mm)
    RI-PGSA-1822A 0.031"-0.063" (0.8mm-1.6mm) 0.866" (21.9964 mm)

    0.866" = 7/8"

    		 0.97" (24.6mm) 0.69" (17.6mm) 0.22" (5.6mm)
    RI-PGSA-2024A1 0.031"-0.039" (0.8mm-1.0mm) 0.945" (24.003 mm)

    0.945" = 15/16"

    		 1.02" (26.0mm) 0.79" (20.0mm) 0.21" (5.4mm)
    RI-PGSA-2024A 0.039"-0.047" (1.0mm-1.2mm) 0.945" (24.003 mm)

    0.945" = 15/16"

    		 1.02" (26.0mm) 0.79" (20.0mm) 0.21" (5.3mm)
    RI-PGSA-2327A 0.016"-0.039" (0.4mm-1.0mm) 1.063"-1.071" (27.0 mm-27.178 mm)

    1.07" = 1-1/16"

    		 1.20" (30.6mm) 0.91" (23.0mm) 0.24" (6.0mm)
    RI-PGSA-2529A 0.016"-0.043" (0.4mm-1.1mm) 1.142" (29.0068 mm)

    1.142" = 1-9/64"

    		 1.25" (32.6mm) 0.98" (25.0mm) 0.28" (7.0mm)
